ADM410T - RCBO 4P 6kA C-10A 30mA A

ADM410T - RCBO 4P 6kA C-10A 30mA A

ADM410T - RCBO 4P 6kA C-10A 30mA A

DIN rail-mounted devices

RCBO 4P 6kA C-10A 30mA A ADM410T

EAN

3250611032922

Packaging

1 Piece

Accessories
Technical properties
Environmental value
Documentations
More products

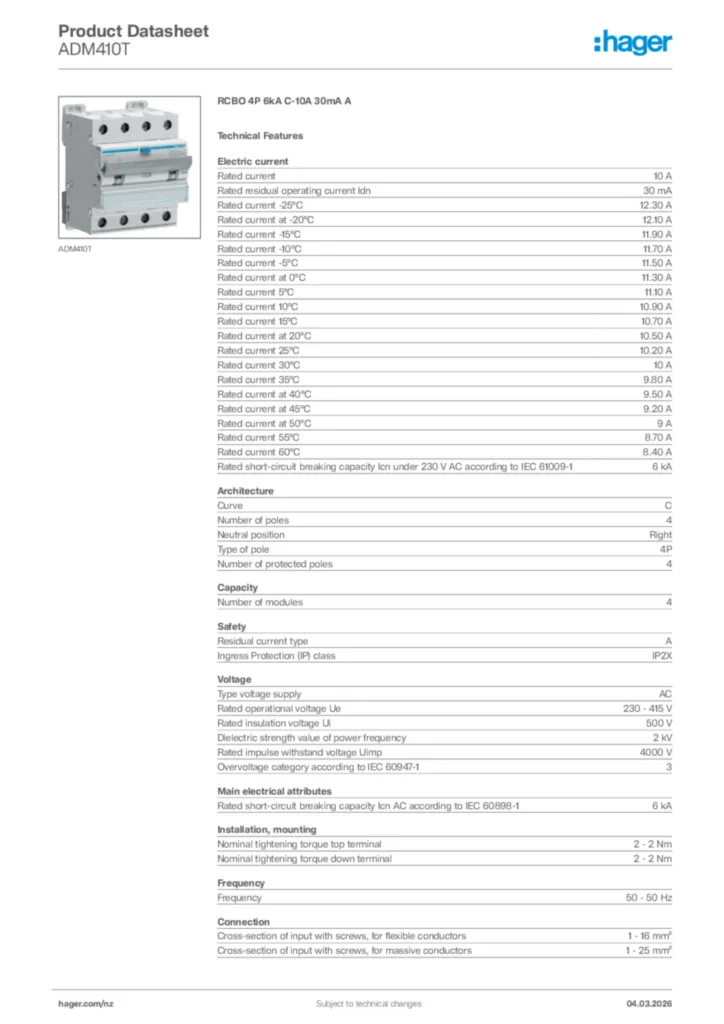

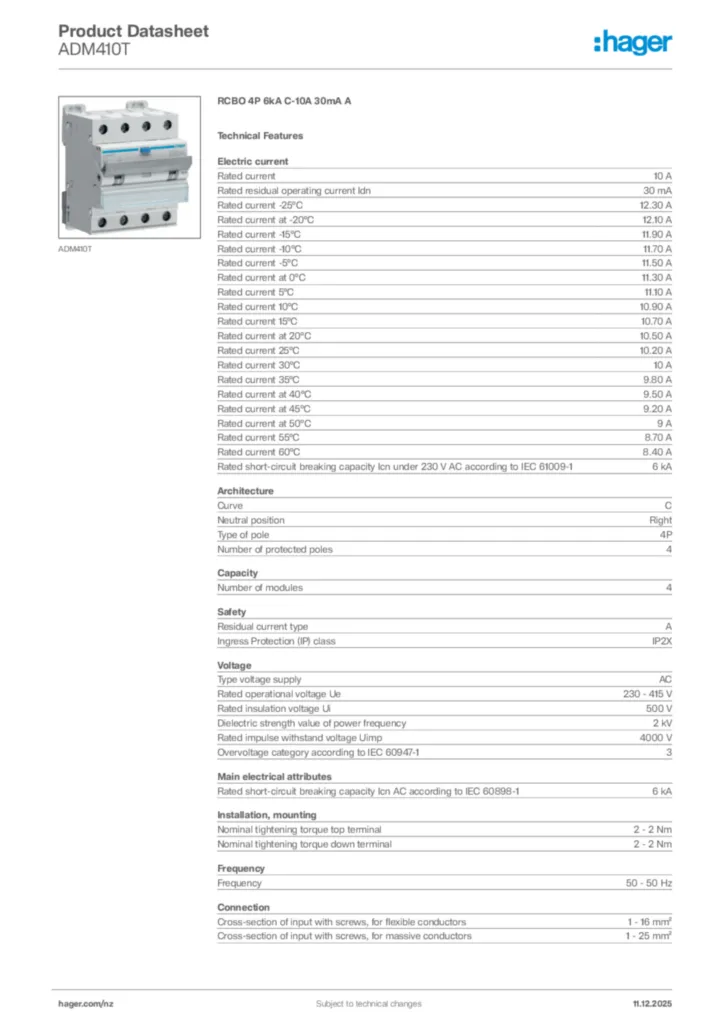

Download the data sheet

Complete your system

Optional accessories

Auxiliaries contact block 2 products available
Shunt release 2 products available
Under voltage coil 1 products available
Locking interlocking functions 1 products available
Modular phase busbar 9 products available

Technical properties

Rated current

10 A
Rated residual operating current Idn

30 mA
Rated current -25°C

12,30 A
Rated current at -20°C

12,10 A
Rated current -15°C

11,90 A
Rated current -10°C

11,70 A
Rated current -5°C

11,50 A
Rated current at 0°C

11,30 A
Rated current 5°C

11,10 A
Rated current 10°C

10,90 A
Rated current 15°C

10,70 A
Rated current at 20°C

10,50 A
Rated current 25°C

10,20 A
Rated current 30°C

10 A
Rated current 35°C

9,80 A
Rated current at 40°C

9,50 A
Rated current at 45°C

9,20 A
Rated current at 50°C

9 A
Rated current 55°C

8,70 A
Rated current 60°C

8,40 A

Curve

C
Neutral position

Right
Type of pole

4P
Number of protected poles

4

Number of modules

4

Residual current type

A
Ingress Protection (IP) class

IP2X

Type voltage supply

AC
Rated operational voltage Ue

230 - 415 V
Rated insulation voltage Ui

500 V
Dielectric strength value of power frequency

2 kV
Rated impulse withstand voltage Uimp

4000 V
Overvoltage category according to IEC 60947-1

3

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA
Nominal tightening torque top terminal

2 - 2 Nm
Nominal tightening torque down terminal

2 - 2 Nm

Frequency

50 - 50 Hz

Cross-section of input with screws, for flexible conductors

1 - 16 mm²
Cross-section of input with screws, for massive conductors

1 - 25 mm²

Nominal tightening torque

2 - 2 Nm
360° mounting position possible

Yes
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect, Bypass

Class of energy limitation I²t

3
Operating temperature

-25 - 40 °C

Height

84 mm
Width

71 mm
Depth

70 mm

Total power loss under IN

9,70 W

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes
