Insulated busbar 2P 80A fork 16mm² 12M KDN280A
EAN
3250613740993
Packaging
50
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Protective cap/strip for phase busbar 2 products available
Compatible products
-
Suitable with 29 products available
Suitable with
-
ADA940TRCB0 1P+N 6kA C-40A 30mA A Class
-
NDN220AMCB 2P 10kA/15kA D-20A 2M
-
NDN232AMCB 2P 10kA/15kA D-32A 2M
-
NDN240AMCB 2P 10kA/15kA D-40A 2M
-
NDN225AMCB 2P 10kA/15kA D-25A 2M
-
NDN263AMCB 2P 10kA/15kA D-63A 2M
-
NDN206AMCB 2P 10kA/15kA D-6A 2M
-
NDN250AMCB 2P 10kA/15kA D-50A 2M
-
NDN216AMCB 2P 10kA/15kA D-16A 2M
-
NDN210AMCB 2P 10kA/15kA D-10A 2M
-
ADA582TRCBO 1P+N 10kA C-32A 30mA A Class
-
ADA575T
RCBO 1P+N 10kA C-25A 30mA A Class
-
ADA570T
RCBO 1P+N 10kA C-20A 30mA A Class
-
ADA566TRCBO 1P+N 10kA C-16A 30mA A Class
-
ADA560T
RCBO 1P+N 10kA C-10A 30mA A Class
-
ADM410TRCBO 4P 6kA C-10A 30mA A
-
ADA932T
RCBO 1P+N 6kA C-32A 30mA A Class
-
ADA925T
RCBO 1P+N 6kA C-25A 30mA A Class
-
ADA920T
RCBO 1P+N 6kA C-20A 30mA A Class
-
ADA916T
RCBO 1P+N 6kA C-16A 30mA A Class
Technical properties
Electric current
-
Rated current80 A
Architecture
-
Number of poles2
Dimensions
-
Length210 mm
Voltage
-
Rated impulse withstand voltage Uimp4500 V
-
Rated operational voltage Ue230 - 400 V
Connection
-
Cross-section rigid conductor16 mm²
-
Connector/plug typePhase busbar with fork
Capacity
-
Number of modules12
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

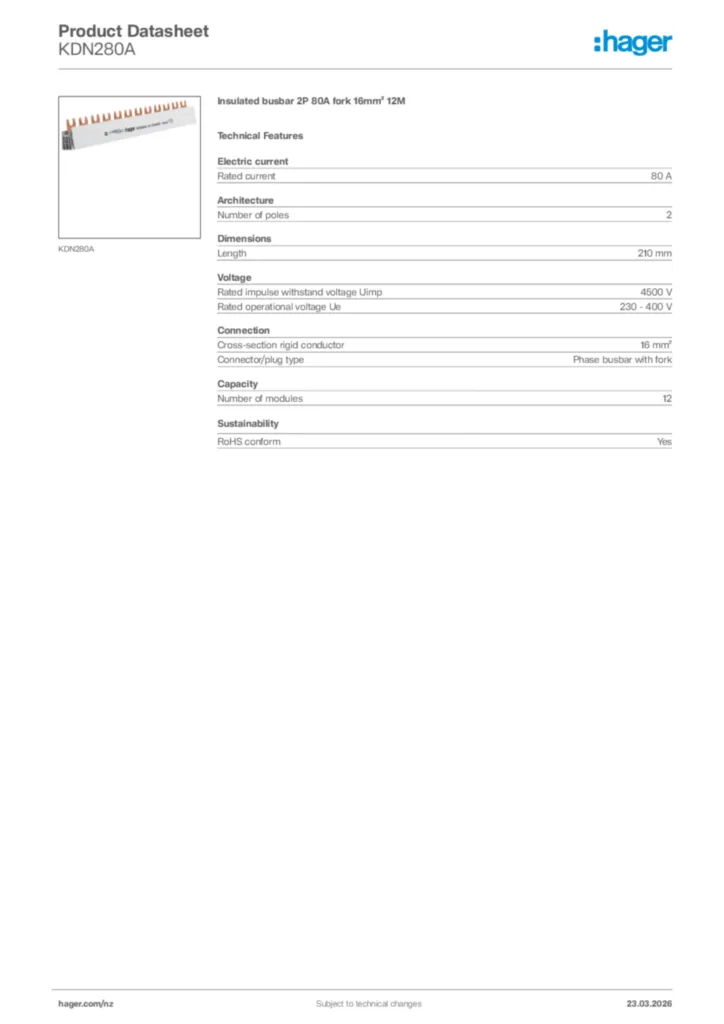

Hager Product data sheet KDN280A
Insulated busbar 2P 80A fork 16mm² 12M
PDF -
Declaration of conformity
Declaration of conformity en-GB 2025-10-20
PDF839,22 kB
Declaration of conformity en-GB 2025-10-20
PDF860,43 kB
More documentation
