Insulated busbar 3P 80A fork 16mm² 12M KDN380A
EAN
3250613741006
Packaging
50
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Protective cap/strip for phase busbar 2 products available -
Rail terminal bar 1 products available
Compatible products
-
Suitable with 40 products available
Suitable with
-
NDN325AMCB 3P 10kA/15kA D-25A 3M
-
ADA920TRCBO 1P+N 6kA C-20A 30mA A Class
-
ADA925T
RCBO 1P+N 6kA C-25A 30mA A Class
-
ADA932T
RCBO 1P+N 6kA C-32A 30mA A Class
-
ADA940T
RCB0 1P+N 6kA C-40A 30mA A Class
-
ADA560TRCBO 1P+N 10kA C-10A 30mA A Class
-
ADA566TRCBO 1P+N 10kA C-16A 30mA A Class
-
ADA570T
RCBO 1P+N 10kA C-20A 30mA A Class
-
ADA575T
RCBO 1P+N 10kA C-25A 30mA A Class
-
ADA582T
RCBO 1P+N 10kA C-32A 30mA A Class
-
ADA916T
RCBO 1P+N 6kA C-16A 30mA A Class
-
NDN316AMCB 3P 10kA/15kA D-16A 3M
-
NDN306AMCB 3P 10kA/15kA D-6A 3M
-
NDN320AMCB 3P 10kA/15kA D-20A 3M
-
NDN340AMCB 3P 10kA/15kA D-40A 3M
-
NDN363AMCB 3P 10kA/15kA D-63A 3M
-
MSN332RMCB 3P 6kA C-32A 3M
-
NDN310AMCB 3P 10kA/15kA D-10A 3M
-
NDN332AMCB 3P 10kA/15kA D-32A 3M
-
NDN350AMCB 3P 10kA/15kA D-50A 3M
Technical properties
Electric current
-
Rated current80 A
Architecture
-
Number of poles3
Dimensions
-
Length210 mm
Voltage
-
Rated impulse withstand voltage Uimp4500 V
-
Rated operational voltage Ue230 - 400 V
Connection
-
Cross-section rigid conductor16 mm²
-
Connector/plug typePhase busbar with fork
Capacity
-
Number of modules12
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

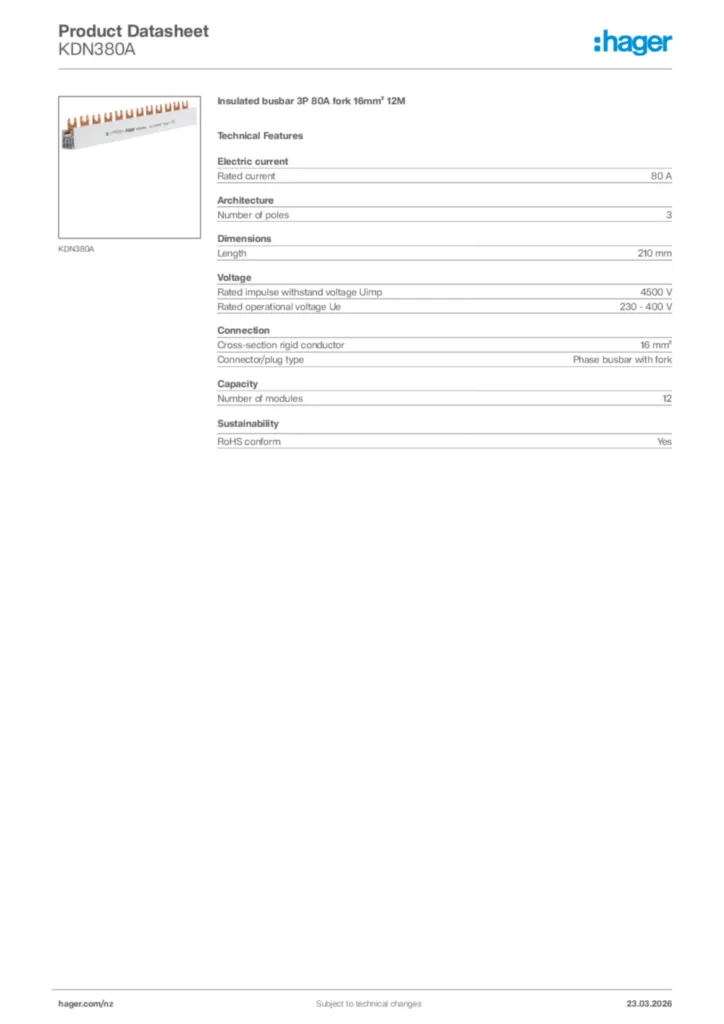

Product datasheet
Hager Product data sheet KDN380A
Insulated busbar 3P 80A fork 16mm² 12M
PDF -
Declaration of conformity
Declaration of conformity en-GB 2025-10-20
PDF839,22 kB
Declaration of conformity en-GB 2025-10-20
PDF860,43 kB
More documentation
