MCB 3P 10kA/15kA D-20A 3M NDN320A
EAN
3250614619250
Packaging
4
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Auxiliaries contact block 2 products available -
Shunt release 2 products available -
Under voltage coil 1 products available -
Phase separation functions 1 products available -
Locking interlocking functions 1 products available -
See more 3 other products available
Complete your system

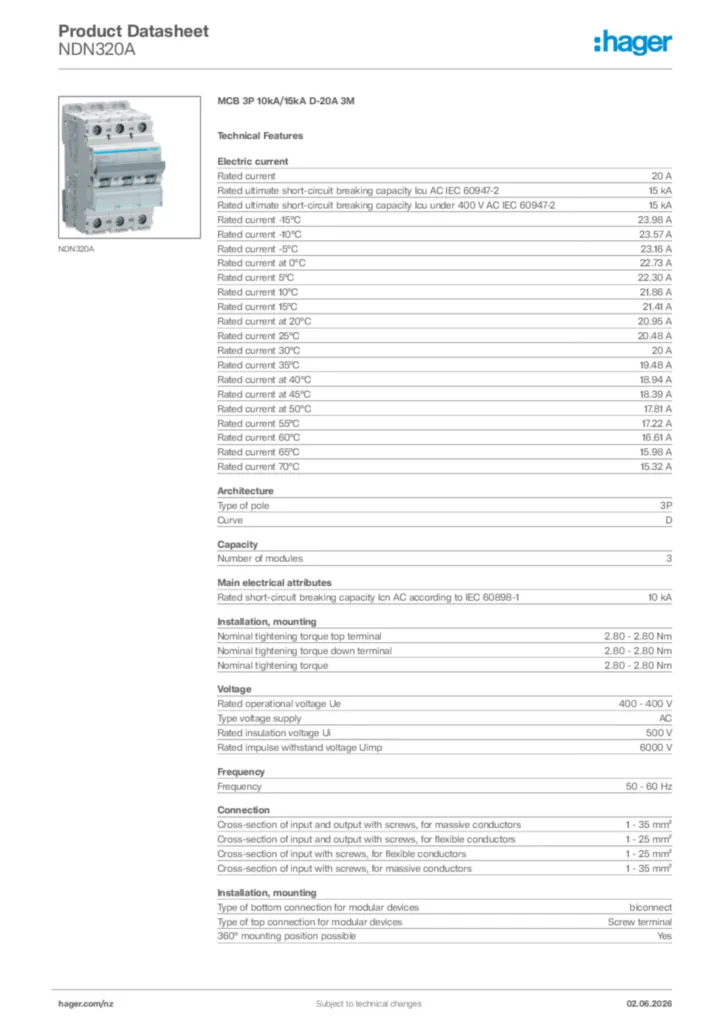

Technical properties
Electric current
-
Rated current20 A
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-215 kA
-
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-110 kA
-
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-230 kA
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-215 kA
-
Rated current -25°C24,78 A
-
Rated current at -20°C24,38 A
-
Rated current -15°C23,98 A
-
Rated current -10°C23,57 A
-
Rated current -5°C23,16 A
-
Rated current at 0°C22,73 A
-
Rated current 5°C22,30 A
-
Rated current 10°C21,86 A
-
Rated current 15°C21,41 A
-
Rated current at 20°C20,95 A
-
Rated current 25°C20,48 A
-
Rated current 30°C20 A
-
Rated current 35°C19,48 A
-
Rated current at 40°C18,94 A
-
Rated current at 45°C18,39 A
-
Rated current at 50°C17,81 A
-
Rated current 55°C17,22 A
-
Rated current 60°C16,61 A
-
Rated current 65°C15,98 A
-
Rated current 70°C15,32 A
Architecture
-
Type of pole3P
-
CurveD
Capacity
-
Number of modules3
Installation, mounting
-
Nominal tightening torque top terminal2,80 - 2,80 Nm
-
Nominal tightening torque down terminal2,80 - 2,80 Nm
-
Nominal tightening torque2,80 - 2,80 Nm
-
Type of bottom connection for modular devicesbiconnect
-
Type of top connection for modular devicesScrew terminal
-
360° mounting position possibleYes
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-110 kA
Voltage
-
Rated operational voltage Ue400 - 400 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp6000 V
Frequency
-
Frequency50 - 60 Hz
Connection
-
Cross-section of input and output with screws, for massive conductors1 - 35 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for massive conductors1 - 35 mm²
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Degree of pollution according to IEC 60664 / IEC 60947-22
-
Class of energy limitation I²t3
-
Operating temperature-25 - 70 °C
Power
-
Total power loss under IN8,04 W
Endurance
-
Electric endurance in number of cycles4000
-
Number of mechanical operations20000
Connectivity
-
Type of connectionScrew terminal
-
Top connection alignment for modular devicesAligned terminal
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height83 mm
-
Width52,50 mm
-
Depth70 mm
