Auxiliary contact 1C+1O 6A 240V AC MZ201
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Suitable with 97 products available
Suitable with
-
NDN150AMCB 1P 10kA/15kA D-50A 1M
-
NDN316AMCB 3P 10kA/15kA D-16A 3M
-
NDN325AMCB 3P 10kA/15kA D-25A 3M
-
NDN210AMCB 2P 10kA/15kA D-10A 2M
-
NDN163AMCB 1P 10kA/15kA D-63A 1M
-
ADA582TRCBO 1P+N 10kA C-32A 30mA A Class
-
ADA575T
RCBO 1P+N 10kA C-25A 30mA A Class
-
NDN410AMCB 4P 10kA/15kA D-10A 4M
-
NDN125AMCB 1P 10kA/15kA D-25A 1M
-
NDN132AMCB 1P 10kA/15kA D-32A 1M
-
NDN116AMCB 1P 10kA/15kA D-16A 1M
-
NDN250AMCB 2P 10kA/15kA D-50A 2M
-
NDN306AMCB 3P 10kA/15kA D-6A 3M
-
NDN206AMCB 2P 10kA/15kA D-6A 2M
-
NDN263AMCB 2P 10kA/15kA D-63A 2M
-
NDN463AMCB 4P 10kA/15kA D-63A 4M
-
NDN225AMCB 2P 10kA/15kA D-25A 2M
-
NDN416AMCB 4P 10kA/15kA D-16A 4M
-
NDN320AMCB 3P 10kA/15kA D-20A 3M
-
NDN340AMCB 3P 10kA/15kA D-40A 3M
Technical properties
Electric current
-
Rated current6 A
Connectivity
-
Type of connectionScrew terminal
-
Mounting typeClick mounting
Capacity
-
Number of modules0,50
Connection
-
Type of contacts1NC+1NO
-
Cross-section flexible conductor6 mm²
-
Cross-section rigid conductor10 mm²
Voltage
-
Rated insulation voltage Ui4000 V
-
Type voltage supplyAC
Endurance
-
Number of mechanical operations12000
-
Electric endurance in number of cycles6000
Use conditions
-
Operating temperature-25 - 60 °C
-
Storage/transport temperature-40 - 80 °C
Power
-
Total power loss under IN0,10 W
Dimensions
-
Height80 mm
-
Width9,50 mm
-
Depth40 mm
Equipment
-
Number of INV contacts0
-
Number of NC contacts1
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

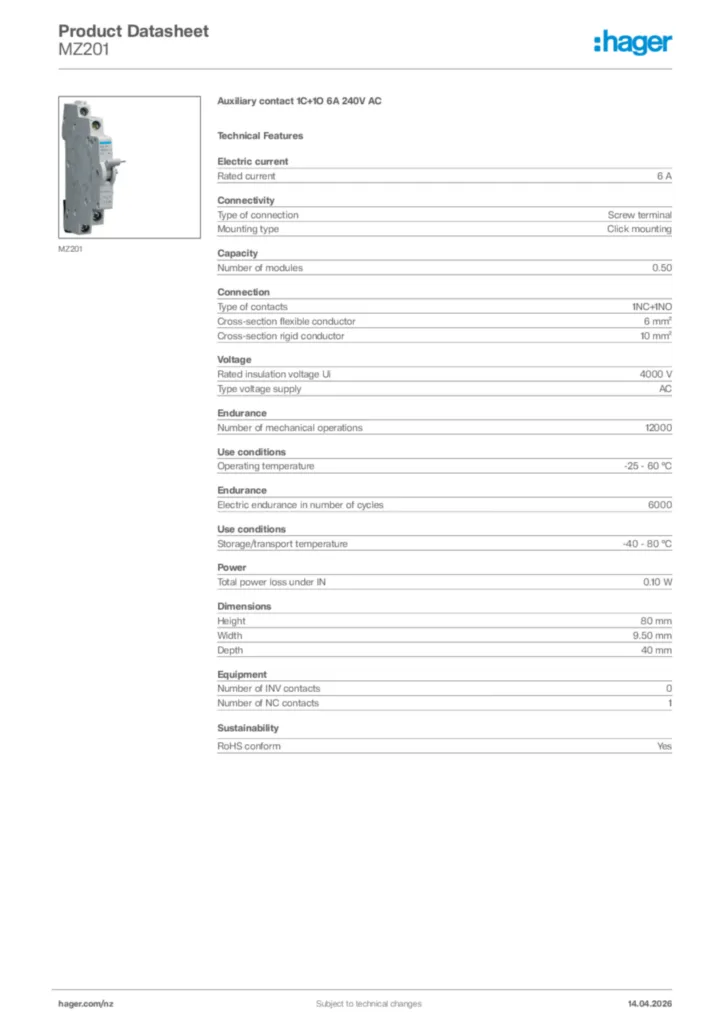

Hager Product data sheet MZ201
Auxiliary contact 1C+1O 6A 240V AC
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2022-04-26
PDF182,48 kB
Declaration
Declaration of conformity International 2022-04-26
PDF223,50 kB
