Residual Current Circuit Breakers with Overcurrent Protection - (RCBOs)

RCBO 1P+N 10kA C-20A 30mA A Class ADA570T

Accessories
Technical properties
Environmental value
Documentations
More products

Download the data sheet

Complete your system

Locking interlocking functions 1 products available
Under voltage coil 1 products available
Shunt release 2 products available
Auxiliaries contact block 2 products available
Protective cap/strip for phase busbar 1 products available
Modular phase busbar 7 products available

Technical properties

Type of pole

1P+N

Ingress Protection (IP) class

IP20

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

10 kA

Type of connection

Screw terminal

Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V
Max. operating voltage

240 V
Rated operational voltage Ue

230 - 240 V
Overvoltage category according to IEC 60947-1

3
Type voltage supply

AC
Dielectric strength value of power frequency

2 kV

Rated current

20 A
Rated residual operating current Idn

30 mA
Rated current -25°C

22,70 A
Rated current at -20°C

22,50 A
Rated current -15°C

22,20 A
Rated current -10°C

22 A
Rated current -5°C

21,80 A
Rated current at 0°C

21,50 A
Rated current 5°C

21,30 A
Rated current 10°C

21 A
Rated current 15°C

20,80 A
Rated current at 20°C

20,50 A
Rated current 25°C

20,30 A
Rated current 30°C

20 A
Rated current 35°C

19,80 A
Rated current at 40°C

19,60 A
Rated current at 45°C

19,40 A
Rated current at 50°C

19,20 A
Rated current 55°C

19 A
Rated current 60°C

18,80 A
Correction factor of rating current for 2 devices placed side by side

1
Min./max. threshold value of the AC thermal operation

1,13 - 1,45 A
Correction factor of rating current for 3 devices placed side by side

0,95
Correction factor of rating current for 4 and 5 devices placed side by side

0,90
Correction factor of rating current for 6 devices placed side by side

0,85
Rated service breaking capacity Ics AC according to IEC 60898-1

7,50 kA

Total power loss under IN

6,60 W

Frequency

50 - 50 Hz

Nominal tightening torque down terminal

2,10 - 2,10 Nm
Nominal tightening torque top terminal

2,10 - 2,10 Nm
Nominal tightening torque

2,10 - 2,10 Nm
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect, Bypass

Max. Altitude

2000 m
Class of energy limitation I²t

3
Operating temperature

-25 - 40 °C
Storage/transport temperature

-25 - 70 °C
Degree of pollution according to IEC 60664 / IEC 60947-2

2
Air humidity protection

For all climates

Electric endurance in number of cycles

2000
Number of mechanical operations

2000

Cross-section flexible conductor

1 - 16 mm²
Cross-section rigid conductor

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 16 mm²
Cross-section of input with screws, for massive conductors

1 - 25 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²

Number of modules

2

Height

83 mm
Width

35 mm
Depth

68 mm

Suitable for DIN Rail

Yes

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes

Certifications and documents

RCBO 1P+N 6kA B-16A 30mA A

PDF

16,18 MB

Hager REACH declaration ADA570T

PDF

Hager RoHS report ADA570T

PDF

Downloads

Product image

Product Image ADA570T
Product datasheet

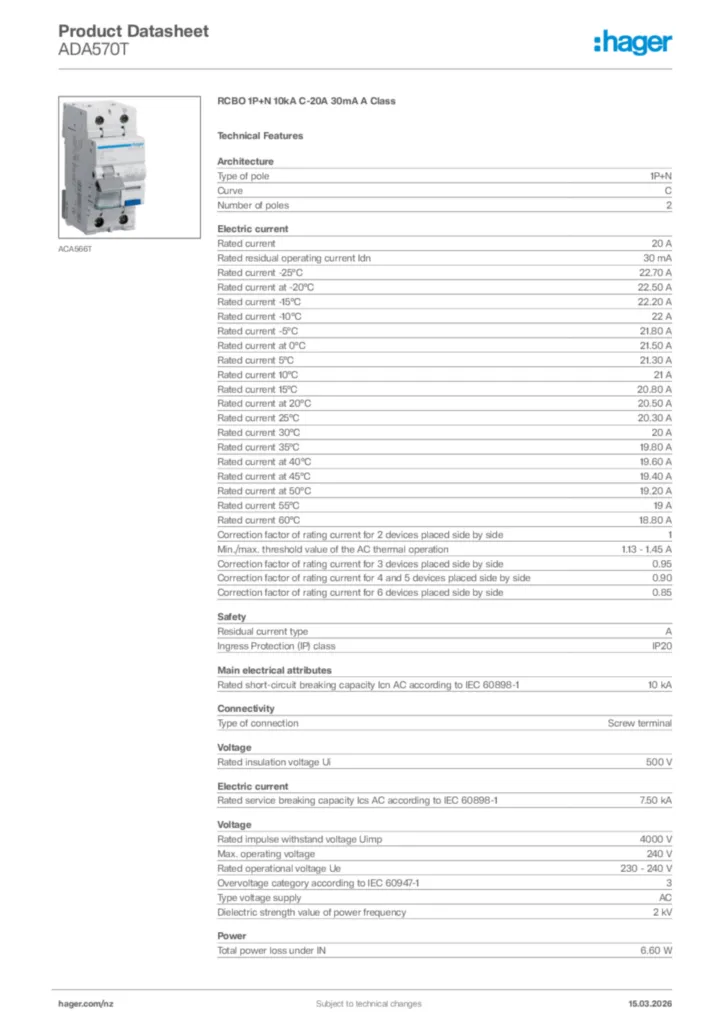

Hager Product data sheet ADA570T
