RCBO 1M 1P+N 6kA C-6A 30mA A ADC906T
EAN
3250611033325
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists

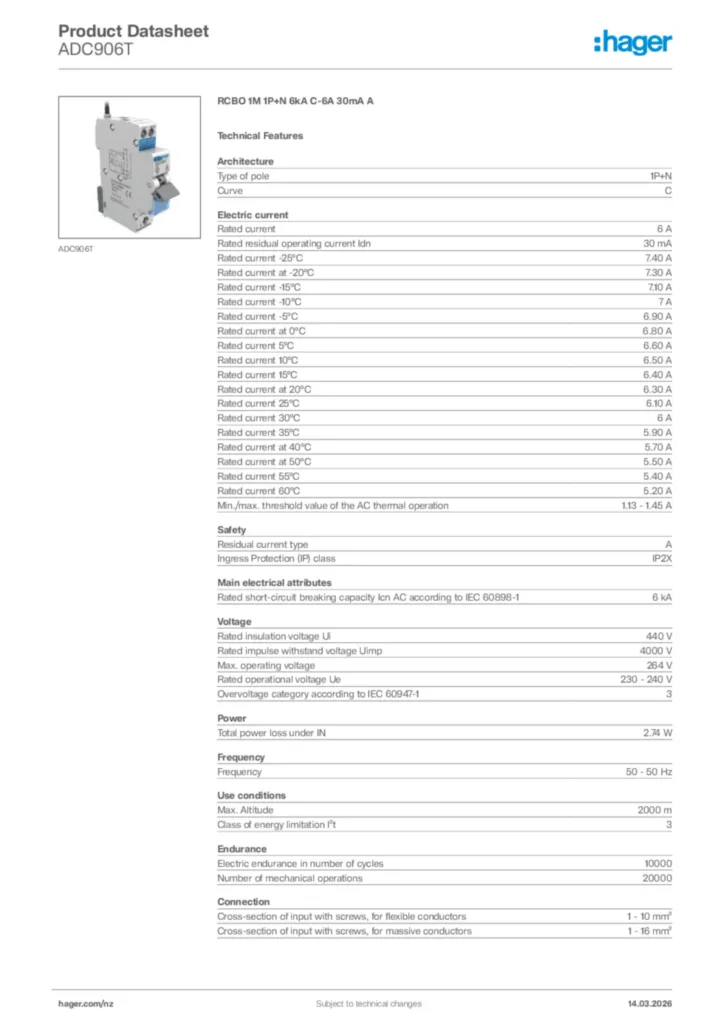

Technical properties
Architecture
-
Neutral positionright
-
Number of protected poles1
-
Number of poles2 P
-
Type of pole1P+N
-
CurveC
Configuration
-
Number of modules1
Connectivity
-
Top connection alignement for modular devicesShifted terminal
-
Bottom connection alignement for modular devicesAligned terminal
Main electrical features
-
Rated short circuit breaking capacity Icn AC according IEC60898-16 kA
-
Rated operational voltage Ue230 / 240 V
-
Type of supply voltageAC
-
Frequency50 Hz
Voltage
-
Rated insulation voltage440 V
-
Max operating voltage264 V
-
Rated impulse withstand voltage4 kV
Electric current
-
Rated residual operating current30 mA
-
Rated current6 A
-
Withstand not tripping on 8-20 μs wave250 A
-
Breaking and opening capacity4.5 kA
-
min/maxi threshold value of the AC thermal operation1.13 / 1.45 In
-
Magnetic regulating currrent5 / 10 In
Electric current / temperature
-
Rating current -25°C7.4 A
-
Rating current -20°C7.3 A
-
Rating current -15°C7.1 A
-
Rating current -10°C7 A
-
Rating current -5°C6.9 A
-
Rating current 0°C6.8 A
-
Rating current 5°C6.6 A
-
Rating current 10°C6.5 A
-
Rating current 15°C6.4 A
-
Rating current 20°C6.3 A
-
Rating current 25°C6.1 A
-
Rating current 30°C6 A
-
Rating current 35°C5.9 A
-
Rating current 40°C5.7 A
-
Rating current 45°C5.6 A
-
Rating current 50°C5.5 A
-
Rating current 55°C5.4 A
-
Rating current 60°C5.2 A
-
Rating current 65°C5.1 A
-
Rating current 70°C5 A
Dimensions
-
Depth of installed product70 mm
-
Height of installed product85 mm
-
Width of installed product17.7 mm
Frequency
-
Frequency50 Hz
Power
-
Total power loss under IN2.74 W
-
Power loss per pole at In1.98 W
Endurance
-
Electric endurance in number of cycles10000
-
Number of mechanical operations20000
Installation, mounting
-
Type of top connection for modular deviceswith screw
-
Type of bottom rail clip for modular devicesplastic
-
Type of Bottom Connection for modular devicesBIconnect
-
Top removability for modular devicesNo
-
Bottom removability for modular devicesYes
-
Suitable for flush-mountingYes
Connection
-
Connection cross-section at output with screw, for flexible conductor1 / 10 mm²
-
Connection cross-section at output with screw, for massive conductor1 / 16 mm²
-
Connection cross-section for rigid conductor, upstream terminals with screws1 / 16 mm²
-
Connection cross-section of the access with screws, with flexible conductor1 / 10 mm²
-
Downstream cage clamp delivery statusopened
-
Upstream cage clamp delivery statusopened
-
Connection cross-section of input and output with screws, for massive conductors1 / 16 mm²
-
Connection cross section of access and exit with screws, for flexible conductor1 / 10 mm²
Cable
-
Length of conductors used for the heating test (m) according to product standard1 m
-
Conductor cross-section used for heating test(mm²) according to product standard1 mm²
Equipment
-
Quick connectno
-
Type selectiveNo
-
Can be accessorizedNo
-
With transparent product label holderYes
Standards
-
Standard textIEC 61009-1 ; AS/NZS 61009-1
Safety
-
Residual current typeA
-
REACH conformNo
-
RoHS conformYes
-
Halogen freeNo
Use conditions
-
Operating temperature-25…70 °C
-
Degree of pollution according to IEC 60664 / IEC 60947-22
-
Class of energy limitation I²t3
-
Altitude2000 m
-
Storage/transport temperature-25…80 °C
temperatur
-
Temperature of calibration30 °C
-
Ambient air temperature during heating test according to the product standard25 °C
-
Max. admissible temperature on accessible parts (intended to be touched)58.5 °C
-
Max. admissible temperature on accessible parts (manual operating means)46.6 °C
-
Max. admissible temperature on access. parts (not touched for normal operation)66.9 °C
-
Max. admissible temperature on terminals56.9 °C
-
Temp.-rise limits for access. parts (toggle) according to product standard40 K
-
Temp.-rise limits for access. parts (not touched) according to product standard60 K
-
Temp.rise limits for access. parts (to be touched) according to product standard40 K
-
Temperature-rise limits for terminals according to the product standard65 K
-
Temperature-rise measured on accessible parts at In (manual operating means)6.6 K
-
Temperature-rise measured on access. parts at In (not touched normal operation)26.9 K
-
Temperature-rise measured on accessible parts at In (intended to be touched)18.5 K
-
Temperature-rise measured on terminals at In16.9 K
