    160A TPN board, INVICTA, 24P Chassis, ISO-STD-GR JVC2400S16TW

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    160A TPN board, INVICTA, 24P Chassis, ISO-STD-GR

    JVC2400S16TW

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • RCBO elec­tronic 16 products available
    • Mini­ature circuit breaker (EN/IEC60898) 29 products available
    • Accessor­ies/s­pare parts for low-­voltage switch tech­no­logy 7 products available

    Complete your system

    • RCBO elec­tronic
    • Mini­ature circuit breaker (EN/IEC60898)
    • Accessor­ies/s­pare parts for low-­voltage switch tech­no­logy
    • ADC906T

      RCBO 1M 1P+N 6kA C-6A 30mA A
      €0.00  / *
    • ADC910T

      RCBO 1M 1P+N 6kA C-10A 30mA A
      €0.00  / *
    • ADC913T

      RCBO 1M 1P+N 6kA C-13A 30mA A
      €0.00  / *
    • ADC916T

      RCBO 1M 1P+N 6kA C-16A 30mA A
      €0.00  / *
    • ADC920T

      RCBO 1M 1P+N 6kA C-20A 30mA A
      €0.00  / *
    • ADC925T

      RCBO 1M 1P+N 6kA C-25A 30mA A
      €0.00  / *
    • ACC910T

      RCBO 1M 1P+N 6kA C-10A 10mA A
      €0.00  / *
    • ACC916T

      RCBO 1M 1P+N 6kA C-16A 10mA A
      €0.00  / *
    • ACC920T

      RCBO 1M 1P+N 6kA C-20A 10mA A
      €0.00  / *
    • ACC925T

      RCBO 1M 1P+N 6kA C-25A 10mA A
      €0.00  / *
    • ACC932T

      RCBO 1M 1P+N 6kA C-32A 10mA A
      €0.00  / *
    • ADD910T

      RCBO 1M 1P+N 6kA D-10A 30mA A
      €0.00  / *
    • ADD916T

      RCBO 1M 1P+N 6kA D-16A 30mA A
      €0.00  / *
    • ADD920T

      RCBO 1M 1P+N 6kA D-20A 30mA A
      €0.00  / *
    • ADD925T

      RCBO 1M 1P+N 6kA D-25A 30mA A
      €0.00  / *
    • ADC932T

      RCBO 1M 1P+N 6kA C-32A 30mA A
      €0.00  / *
    • MSN306

      MCB 3P 6kA C-6A 3M
      €0.00  / *
    • MSN316

      MCB 3P 6kA C-16A 3M
      €0.00  / *
    • MSN310

      MCB 3P 6kA C-10A 3M
      €0.00  / *
    • MSN216

      MCB 2P 6kA C-16A 2M
      €0.00  / *
    • MSN210

      MCB 2P 6kA C-10A 2M
      €0.00  / *
    • MSN120

      MCB 1P 6kA C-20A 1M
      €0.00  / *
    • MSN116

      MCB 1P 6kA C-16A 1M
      €0.00  / *
    • MSN110

      MCB 1P 6kA C-10A 1M
      €0.00  / *
    • MSN363R

      MCB 3P 6kA C-63A 3M
      €0.00  / *
    • MSN363

      MCB 3P 6kA C-63A 3M
      €0.00  / *
    • MSN350

      MCB 3P 6kA C-50A 3M
      €0.00  / *
    • MSN340

      MCB 3P 6kA C-40A 3M
      €0.00  / *
    • MSN332

      MCB 3P 6kA C-32A 3M
      €0.00  / *
    • MSN325

      MCB 3P 6kA C-25A 3M
      €0.00  / *
    • MSN106

      MCB 1P 6kA C-6A 1M
      €0.00  / *
    • MSN263R

      MCB 2P 6kA C-63A 2M
      €0.00  / *
    • MSN263

      MCB 2P 6kA C-63A 2M
      €0.00  / *
    • MSN250

      MCB 2P 6kA C-50A 2M
      €0.00  / *
    • MSN240

      MCB 2P 6kA C-40A 2M
      €0.00  / *
    • MSN232

      MCB 2P 6kA C-32A 2M
      €0.00  / *
    • JVC0EXTDW

      Invicta Ext Box-2 rows x 18P DIN WH (WH)
      €0.00  / *
    • JVC0M12

      €0.00  / *
    • JVC0M06

      €0.00  / *
    • JVC0GPL

      €0.00  / *
    • JVC0LCK

      €0.00  / *
    • JVC0MEN

      €0.00  / *
    • JVC0PFL

      €0.00  / *

    Technical properties

    Connec­tion
    • Number of access­ible phases
      24
    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      160 A
    • Breaking and opening capa­city Idm
      0
    Equip­ment
    • With lock
      Yes
    • Has mounting plate
      No
    • Equipped with switch
      Isol­ator
    • Number of switches
      1
    • Type of busbar chassis
      Fixed load chassis
    Capa­city
    • Number of modules
      16
    Dimen­sions
    • Height
      800 mm
    • Width
      480 mm
    • Depth
      135 mm
    Cover, door
    • Door/­cover is trans­parent
      No
    Mater­ials
    • Material
      Steel
    • RAL code
      7035
    • Colour
      Light grey
    Safety
    • Protec­tion class
      Isol­a­tion class I
    • Impact resist­ance IK
      IK05
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Key lock, With lock
    Archi­tec­ture
    • Number of poles
      24

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    PEP - 125A 4 Way TPN Board c/w SD & SPD (English)
    PDF
    17,17 MB
    REACH declaration JVC2400S16TW
    PDF
    RoHS report JVC2400S16TW
    PDF

    Downloads

    • Product image

      Image JVC2400S16TW | Hager New Zealand

      Product Image JVC2400S16TW

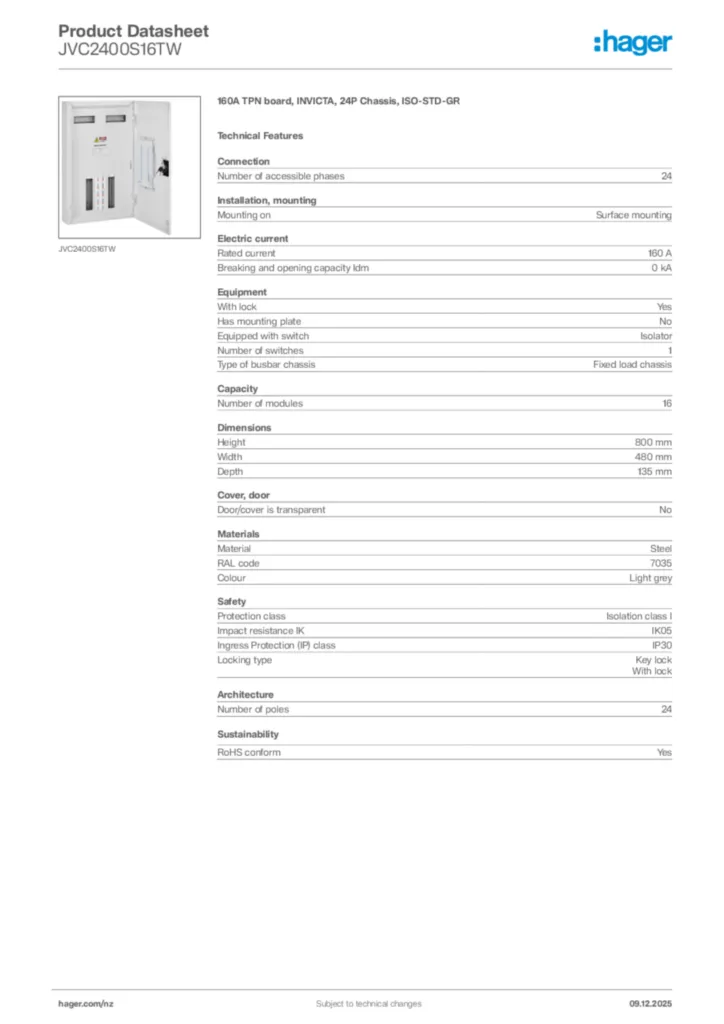

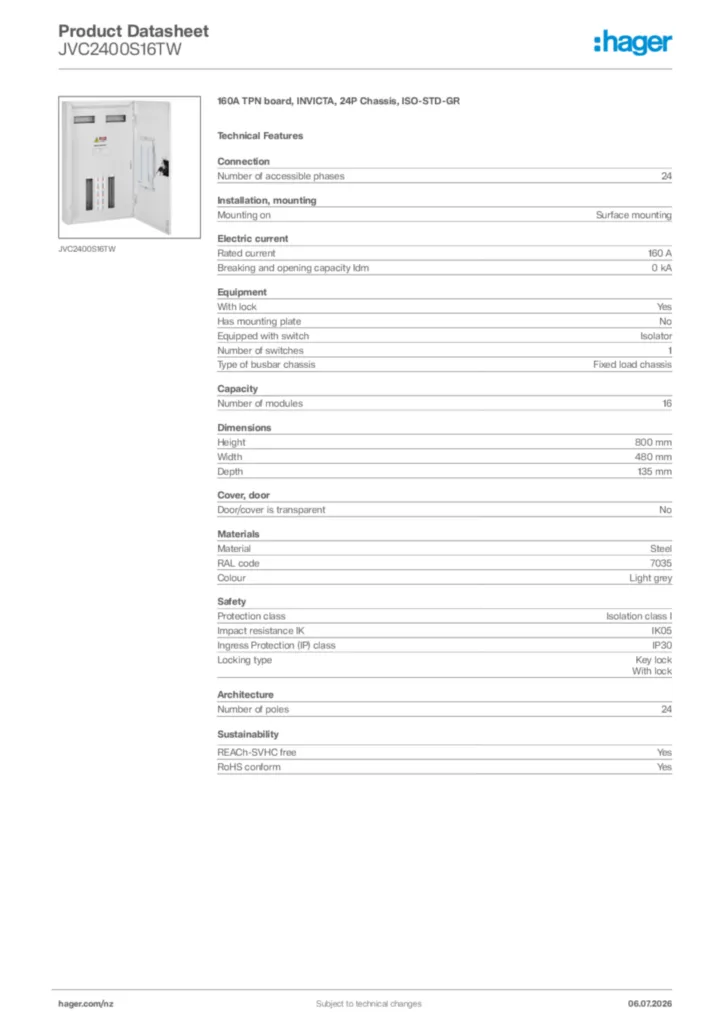

    • Product datasheet

      Image Hager Product data sheet JVC2400S16TW | Hager New Zealand

      Hager Product data sheet JVC2400S16TW

      160A TPN board, INVICTA, 24P Chassis, ISO-STD-GR

      PDF

    • Installation manual

      Image Installation manual en-GB 2025-07-25 | Hager New Zealand

      Installation manual en-GB 2025-07-25

      PDF
      22,52 MB
    More documentation

    Spare part

    See more

    Discover more of this product range
