RCBO 6kA, 1 module, 1P+N, Type A, 'C' Curve

RCBO 1M 1P+N 6kA C-10A 10mA A ACC910T

EAN

3250611033264

Packaging

1 Piece

Technical properties
Documentations
Accessories
More products

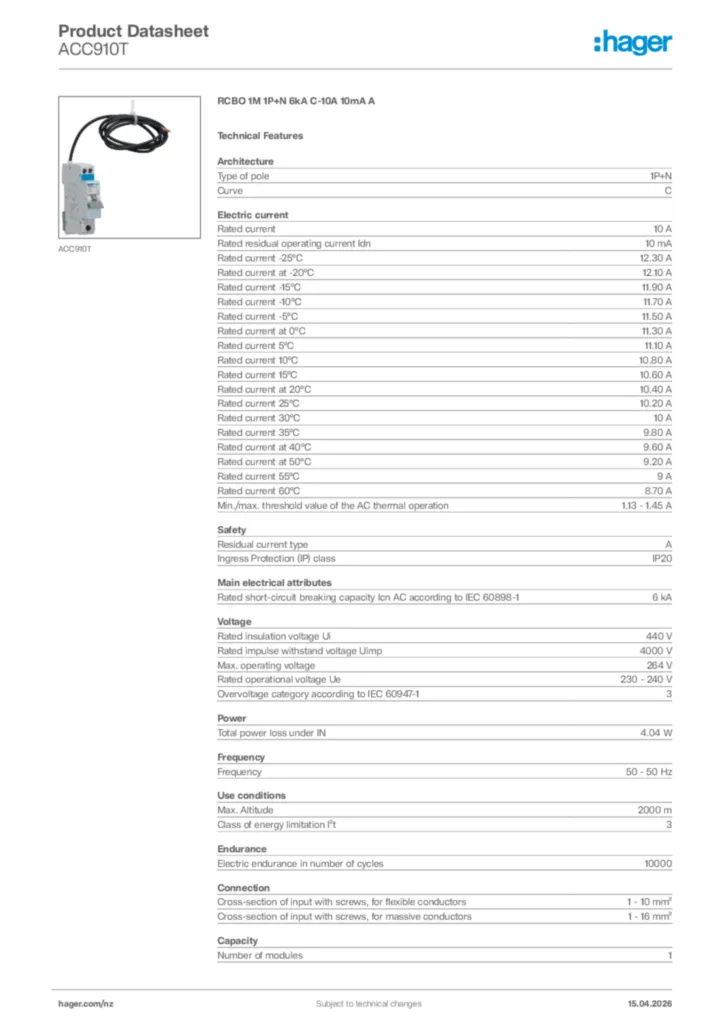

Download the data sheet

Technical properties

Neutral position

right
Number of protected poles

1
Number of poles

2 P
Type of pole

1P+N
Curve

C

Number of modules

1

Top connection alignement for modular devices

Shifted terminal
Bottom connection alignement for modular devices

Aligned terminal

Rated short circuit breaking capacity Icn AC according IEC60898-1

6 kA
Rated operational voltage Ue

230 / 240 V
Type of supply voltage

AC
Frequency

50 Hz

Rated insulation voltage

440 V
Max operating voltage

264 V
Rated impulse withstand voltage

4 kV

Rated residual operating current

10 mA
Rated current

10 A
Withstand not tripping on 8-20 μs wave

0.2 kA
Breaking and opening capacity

4.5 kA
min/maxi threshold value of the AC thermal operation

1.13 / 1.45 In
Magnetic regulating currrent

5 / 10 In

Rating current -25°C

12.3 A
Rating current -20°C

12.1 A
Rating current -15°C

11.9 A
Rating current -10°C

11.7 A
Rating current -5°C

11.5 A
Rating current 0°C

11.3 A
Rating current 5°C

11.1 A
Rating current 10°C

10.8 A
Rating current 15°C

10.6 A
Rating current 20°C

10.4 A
Rating current 25°C

10.2 A
Rating current 30°C

10 A
Rating current 35°C

9.8 A
Rating current 40°C

9.6 A
Rating current 45°C

9.4 A
Rating current 50°C

9.2 A
Rating current 55°C

9 A
Rating current 60°C

8.7 A
Rating current 65°C

8.5 A
Rating current 70°C

8.3 A

Depth of installed product

70 mm
Height of installed product

85 mm
Width of installed product

17.7 mm

Frequency

50 Hz

Total power loss under IN

4.04 W
Power loss per pole at In

2.13 W

Electric endurance in number of cycles

10000
Number of mechanical operations

20000

Type of top connection for modular devices

with screw
Type of bottom rail clip for modular devices

plastic
Type of Bottom Connection for modular devices

BIconnect
Top removability for modular devices

No
Bottom removability for modular devices

Yes
Suitable for flush-mounting

Yes

Connection cross-section at output with screw, for flexible conductor

1 / 10 mm²
Connection cross-section at output with screw, for massive conductor

1 / 16 mm²
Connection cross-section for rigid conductor, upstream terminals with screws

1 / 16 mm²
Connection cross-section of the access with screws, with flexible conductor

1 / 10 mm²
Downstream cage clamp delivery status

opened
Upstream cage clamp delivery status

opened
Connection cross-section of input and output with screws, for massive conductors

1 / 16 mm²
Connection cross section of access and exit with screws, for flexible conductor

1 / 10 mm²

Length of conductors used for the heating test (m) according to product standard

1 m
Conductor cross-section used for heating test(mm²) according to product standard

1.5 mm²

Quick connect

no
Type selective

No
Can be accessorized

No
With transparent product label holder

Yes

Standard text

IEC 61009-1 ; AS/NZS 61009-1

Residual current type

A
REACH conform

No
Halogen free

No

Operating temperature

-25…70 °C
Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Altitude

2000 m
Storage/transport temperature

-25…80 °C

Temperature of calibration

30 °C
Ambient air temperature during heating test according to the product standard

24.8 °C
Max. admissible temperature on accessible parts (intended to be touched)

58.2 °C
Max. admissible temperature on accessible parts (manual operating means)

46.7 °C
Max. admissible temperature on access. parts (not touched for normal operation)

67.4 °C
Max. admissible temperature on terminals

62.5 °C
Temp.-rise limits for access. parts (toggle) according to product standard

40 K
Temp.-rise limits for access. parts (not touched) according to product standard

60 K
Temp.rise limits for access. parts (to be touched) according to product standard

40 K
Temperature-rise limits for terminals according to the product standard

65 K
Temperature-rise measured on accessible parts at In (manual operating means)

6.7 K
Temperature-rise measured on access. parts at In (not touched normal operation)

27.4 K
Temperature-rise measured on accessible parts at In (intended to be touched)

18.2 K
Temperature-rise measured on terminals at In

22.5 K
