250A TPN board, INVICTA, 48P Chassis , ISO-STD-GR JVC4800S16TW
EAN
3250611002369
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Number of poles of the main switch3
Functions
-
Overvoltage protectionNo
Configuration
-
Number of modules16
Main electrical features
-
Rated operational voltage Ue415 V
-
Nominal voltage400 V
-
Frequency50/60 Hz
Electric current
-
Rated current160 A
Dimensions
-
Insertion depth117 mm
-
Depth of installed product135 mm
-
Internal depth115 mm
-
Height of installed product1000 mm
-
Width of installed product480 mm
-
Thickness of sidewall material1.2 mm
Cover, door
-
InterlockableNo
-
Number of keylock of the door1
-
Transparent cover or doorNo
Materials
-
Colourlight grey
-
RAL colourRAL 7035 - Light grey
Connection
-
Number of accessible phases48
Equipment
-
With energy meterNo
-
Quantity of rails1
-
Can be accessorizedYes
-
With bell transformerNo
-
Extension possibleYes
-
With socketNo
Safety
-
IK protection code against mecanical impacts05
-
Protection classisol.class I
-
Glow wire testaccording to AS/NZS 61439-1
Downloads
-
Product image
-
User brochure
Invicta Panelboard Brochure
PDF1 MB -

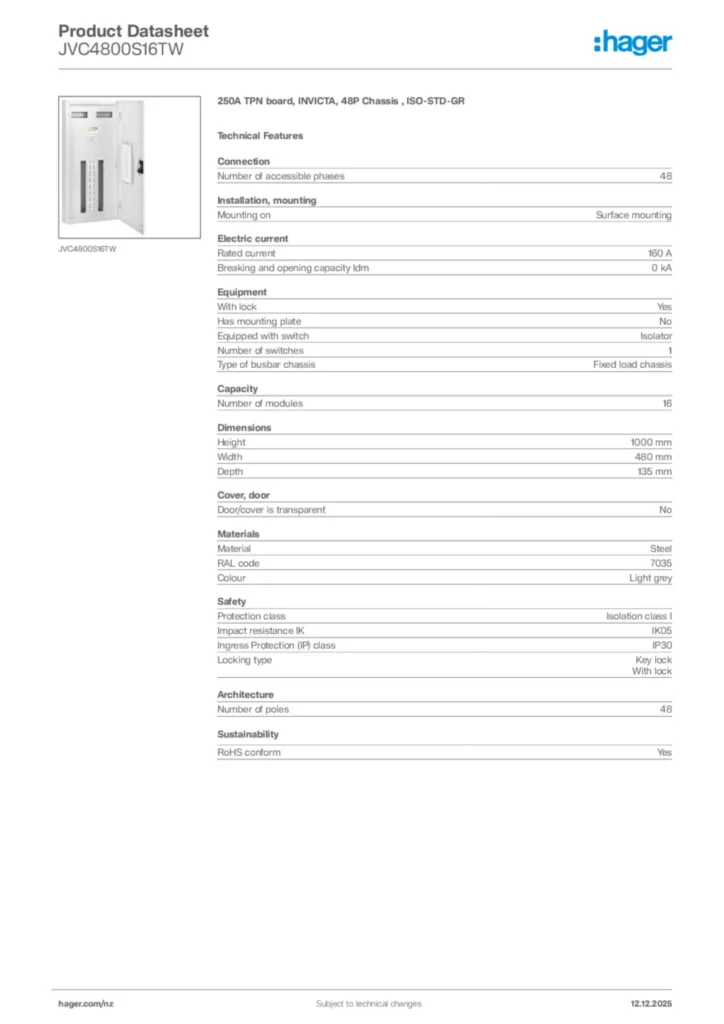

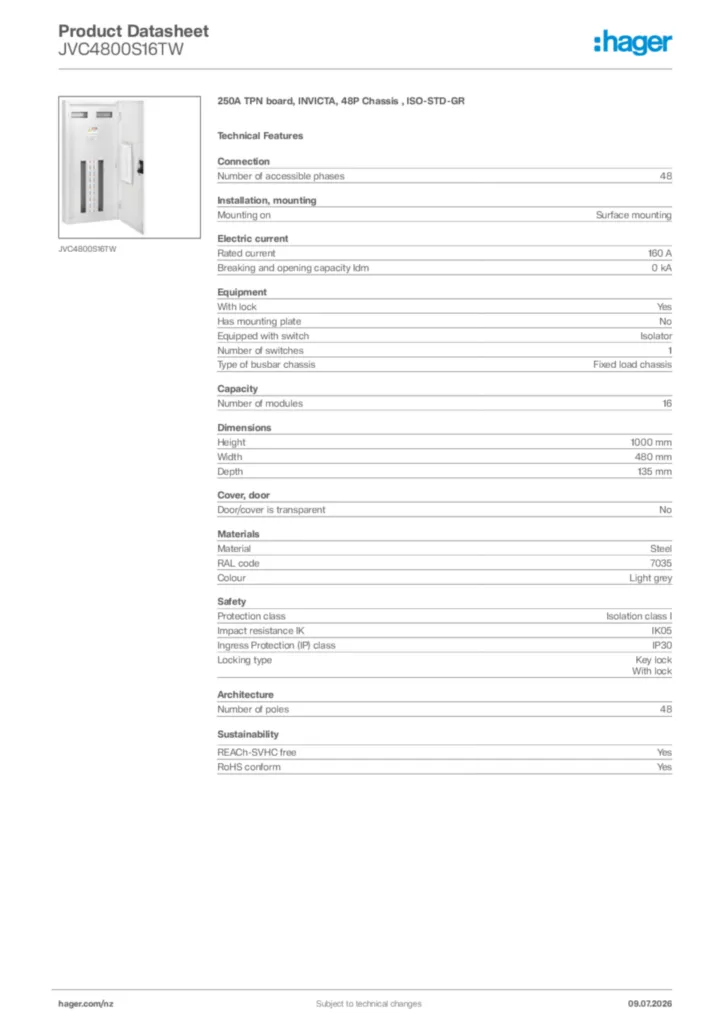

ProductDataSheet
