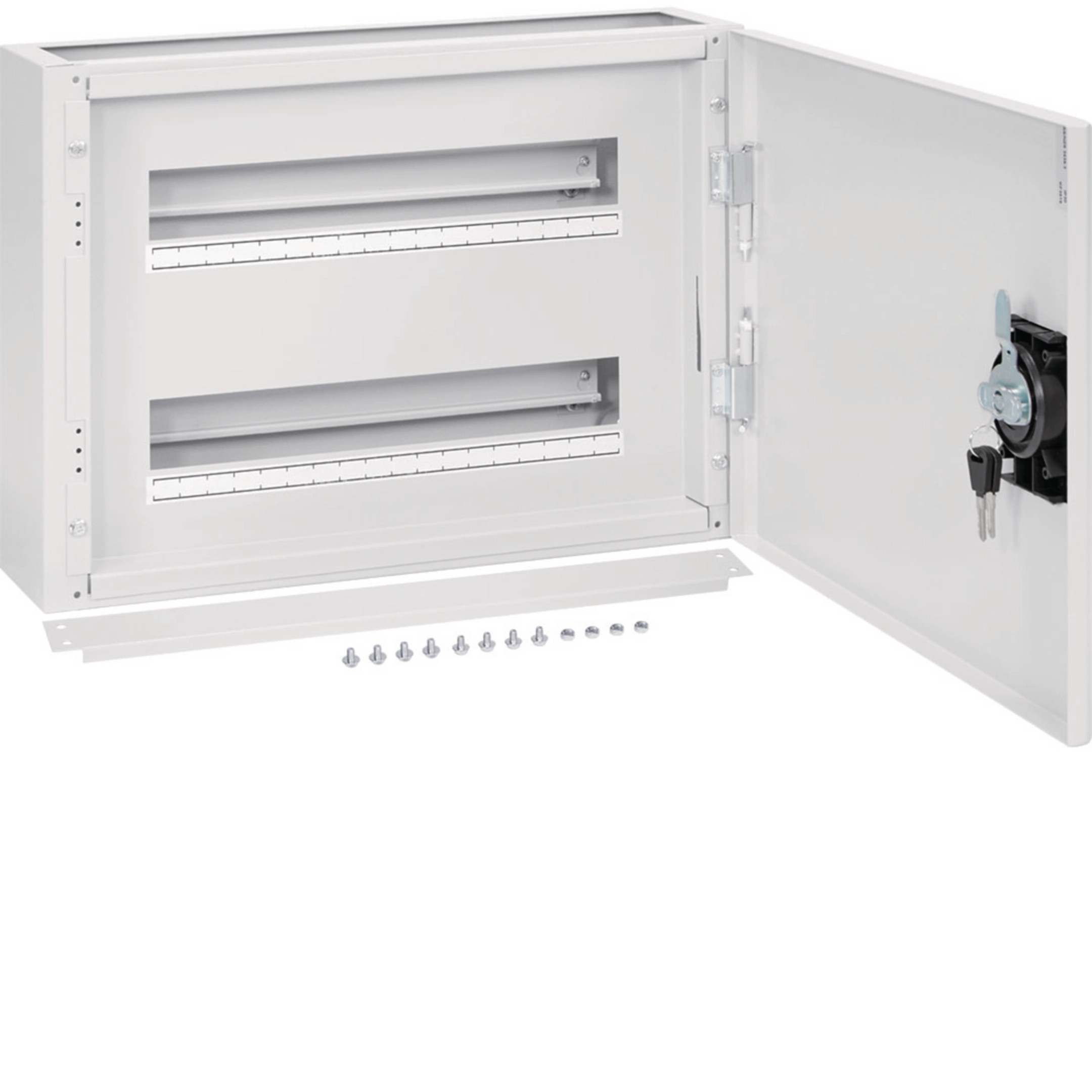

Invicta Ext Box-2 rows x 18P DIN WH (WH) JVC0EXTDW
EAN
3250611002383
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Configuration
-
Number of modules18
Compatibility
-
Suitable for lightning protectionYes
Dimensions
-
Insertion depth140 mm
-
Depth of installed product140 mm
-
Internal depth138 mm
-
Height of installed product350 mm
-
Width of installed product480 mm
-
Width in division units9
-
Thickness of sidewall material1.2 mm
Cover, door
-
Material thickness cover1.2 mm
-
Identification od protection index30
-
InterlockableNo
-
Cover typeClosed (plain)
-
Door leavesingle
-
Cover typeCover
-
Transparent cover or doorNo
Materials
-
Colourlight grey
-
RAL colourRAL 7035 - Light grey
-
Surface appearancesatin finish
Installation, mounting
-
Suitable for outdoor useNo
Equipment
-
Number of rows2
-
Quantity of rails2
-
Number of openings for flange plates1
-
Extension possibleYes
Standards
-
ApprovalsAS/NZS 61439-3
Safety
-
IK protection code against mecanical impactsIK05
-
Protection classisol.class I
-
Fire resistance-
Downloads
-
Product image
-
User brochure
Invicta Panelboard Brochure
PDF1 MB -

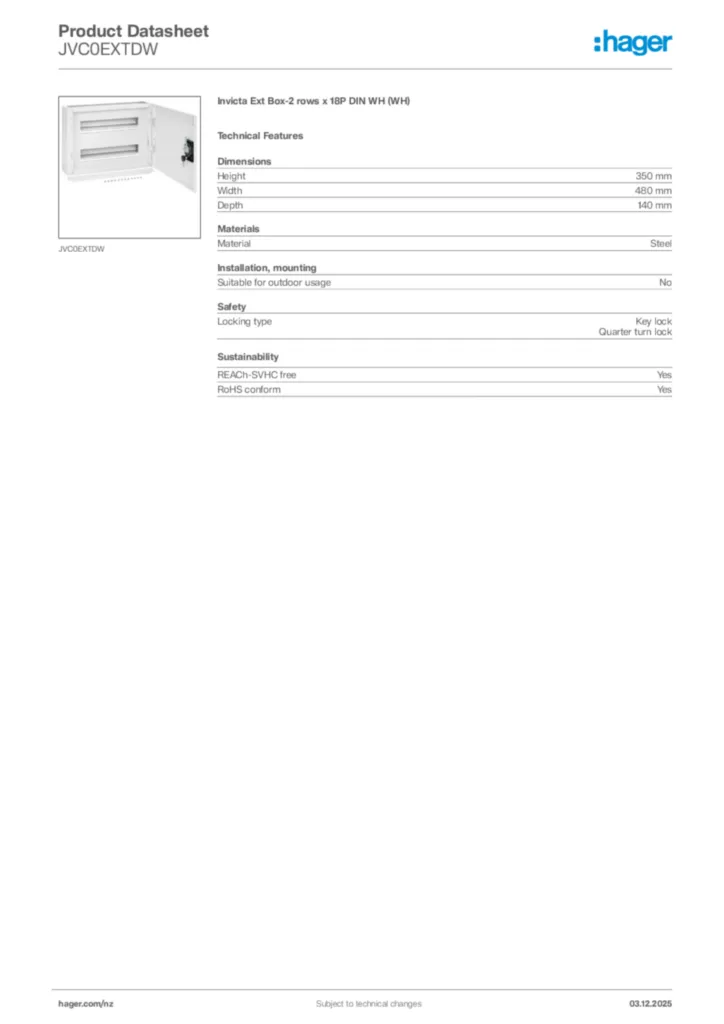

ProductDataSheet
