Insulated busbar 1P 80A fork 16mm² 18M KDN180G
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Protective cap/strip for phase busbar 1 products available
Compatible products
-
Suitable with 20 products available
Suitable with
-
ADA916TRCBO 1P+N 6kA C-16A 30mA A Class
-
ADA582TRCBO 1P+N 10kA C-32A 30mA A Class
-
ADA575T
RCBO 1P+N 10kA C-25A 30mA A Class
-
ADA570T
RCBO 1P+N 10kA C-20A 30mA A Class
-
ADA566TRCBO 1P+N 10kA C-16A 30mA A Class
-
ADA560T
RCBO 1P+N 10kA C-10A 30mA A Class
-
ADA940T
RCB0 1P+N 6kA C-40A 30mA A Class
-
ADA932T
RCBO 1P+N 6kA C-32A 30mA A Class
-
ADA925T
RCBO 1P+N 6kA C-25A 30mA A Class
-
ADA920T
RCBO 1P+N 6kA C-20A 30mA A Class
-
ADM410TRCBO 4P 6kA C-10A 30mA A
-
ADA910T
RCBO 1P+N 6kA C-10A 30mA A Class
-
ADX440TRCBO 4P 10kA C-40A 30mA A
-
ADX432TRCBO 4P 10kA C-32A 30mA A
-
ADX420TRCBO 4P 10kA C-20A 30mA A
-
ADM440TRCBO 4P 6kA C-40A 30mA A
-
ADM432TRCBO 4P 6kA C-32A 30mA A
-
ADM425TRCBO 4P 6kA C-25A 30mA A
-
ADM420TRCBO 4P 6kA C-20A 30mA A
-
ADM416TRCBO 4P 6kA C-16A 30mA A
Technical properties
Electric current
-
Rated current80 A
Architecture
-
Number of poles1
Dimensions
-
Length319 mm
Voltage
-
Rated impulse withstand voltage Uimp4000 V
-
Rated operational voltage Ue415 - 415 V
Connection
-
Cross-section rigid conductor16 mm²
-
Connector/plug typePhase busbar with fork
Capacity
-
Number of modules18
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

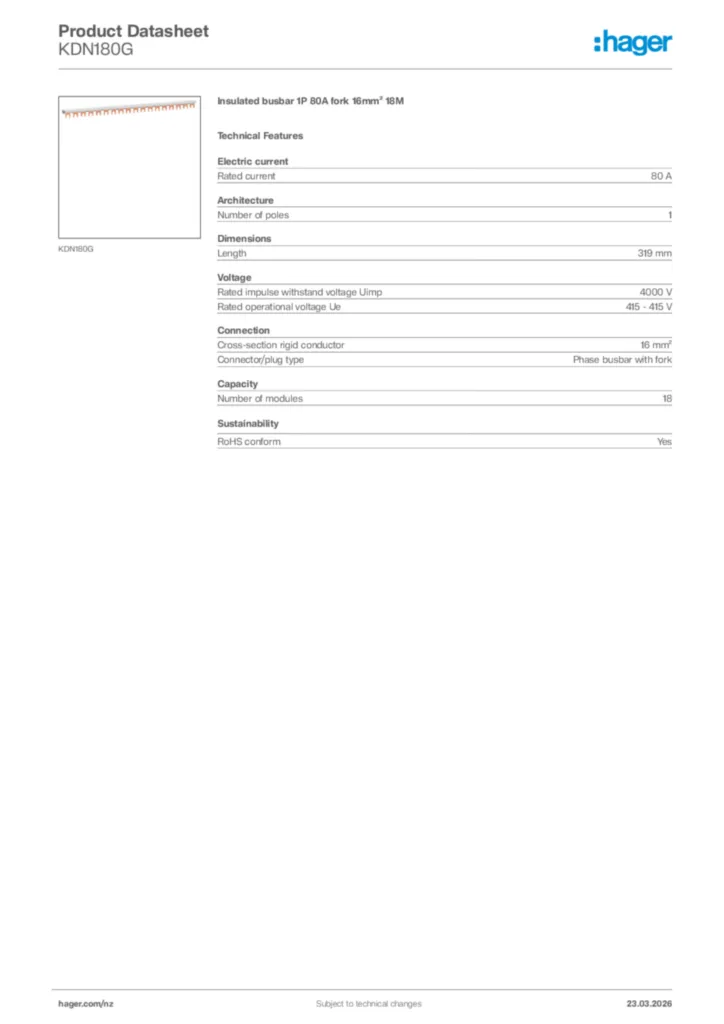

Hager Product data sheet KDN180G
Insulated busbar 1P 80A fork 16mm² 18M
PDF -
Declaration of conformity
Declaration of conformity en-GB 2026-01-12
PDF364,15 kB
Declaration of conformity en-GB 2026-01-12
PDF386,96 kB
