Insulated busbar 3P 80A fork 16mm² 18M

KDN380G

  • Insulated Busbar

Insulated busbar 3P 80A fork 16mm² 18M KDN380G

EAN
3250613730338
Packaging
10 PCEs

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Technical properties
  • Documentations
  • More products

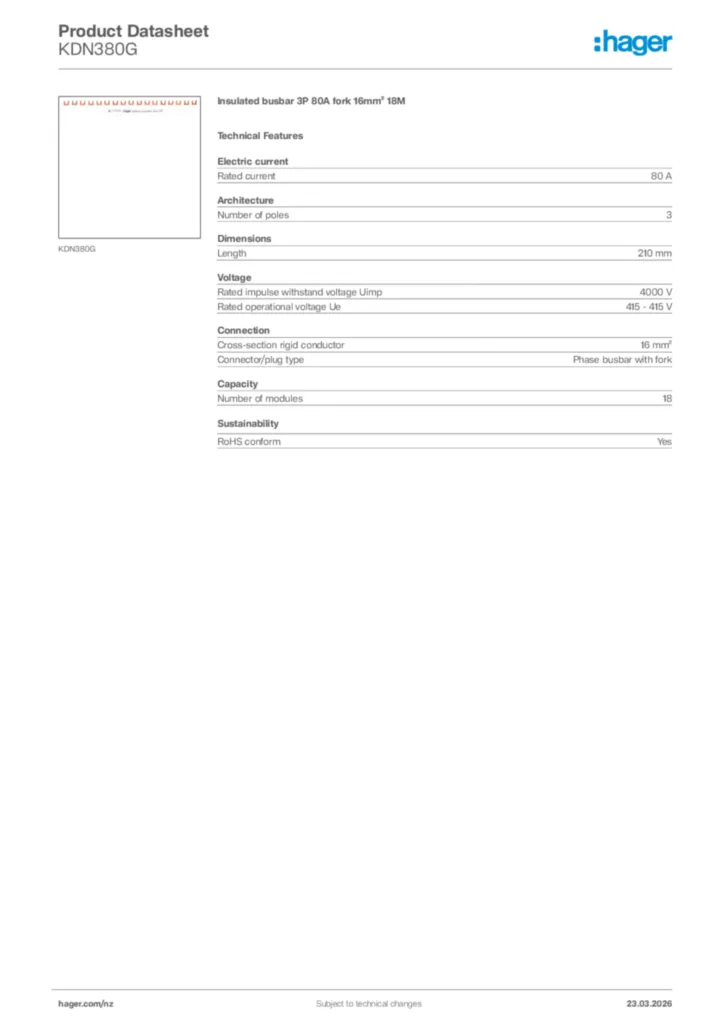

Download the data sheet

Technical properties

Architecture
  • Number of poles
    3 P
Configuration
  • Number of modules
    12
Voltage
  • Rated impulse withstand voltage
    4 kV
Electric current
  • Rated current
    80 A
Dimensions
  • Length
    210 mm
  • Pitch
    17.8 mm
Power
  • Total power loss under IN
    7.2 W
Power supply
  • Number of phases for the power supply
    3-phase
Installation, mounting
  • Suitable to a device with an auxiliary
    No
Connection
  • Connection cross-sect. rigid cable
    16mm²
  • Suitable for product with neutral busbar
    No
  • Connector type
    busbar fork
Equipment
  • Number of connections
    18 C
  • Number of appliances to build in
    6
Standards
  • European directive RoHs
    voluntary compliance
Safety
  • Halogen free
    No
Use conditions
  • Insulated
    Yes

Downloads

  • Product image

    Image KDN380G | Hager New Zealand

    Product Image KDN380G

  • ProductECDeclaration

    Image Declaration | Hager New Zealand

    Declaration

    PDF
    342 KB

  • ProductEnvironmentProfile

    Image Product environmental profile for KDN380G | Hager New Zealand

    Product environmental profile for KDN380G

    PDF
    429 KB

  • ProductROHS

    Image REACH declaration KDN380G (english) | Hager New Zealand

    REACH declaration KDN380G (english)

    PDF
    103 KB
