Binary input 2 fold, flush mounted, KNX TYBS702A
EAN-Nr.
3250610050521
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Complete your system
Optional accessories
-
Power supply for bus system 3 products available -
Surge protection device for data networks/MCR technology 1 products available -
Accessories/spare parts for bus system 3 products available -
Interface for bus system 1 products available -
System interface/media gateway for bus system 2 products available -
Connection/branching terminal for bus system 1 products available
Complete your system
Technical characteristics
Architecture
-
Bus systemEIB
Settings
-
Supported configuration modeETS, easy
Electric current
-
Number of entry circuits2
Connectivity
-
With bus system KNX radioNo
Equipment
-
External signal voltage necessaryNo
-
Radio frequency bidirectionalNo
-
With batteryNo
-
With HVAC controlNo
Installation, mounting
-
Mounting onFlush mounting
Lighting
-
LED controllingNo
Materials
-
MaterialPlastic
-
ColourLight grey
-
RAL code7035
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-5-+45 °C
Cable
-
Cable length0.25 m
Voltage
-
Input voltage3.3-3.3 V
-
Operating voltage over bus21-32 V
-
Type voltage supplyDC
-
System supply voltage30 V DC Via bus
Dimensions
-
Length43 mm
-
Height28.5 mm
-
Depth15.4 mm
Texts
-
Installation modeFor flush-mounted and hollow wall mounting
-
Type of connectionWith pre-assembled cable
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

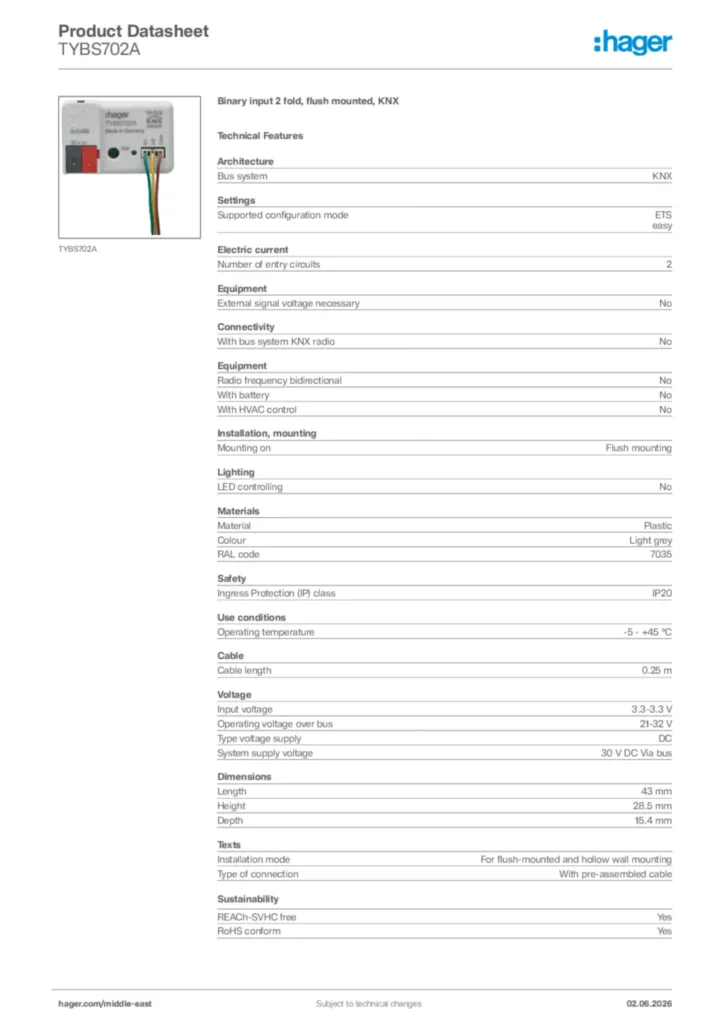

Product datasheet
Hager Product data sheet TYBS702A
Binary input 2 fold, flush mounted, KNX
PDF -
Instruction manual
Instruction manual en-GB 2025-04-01
PDF884,17 kB -

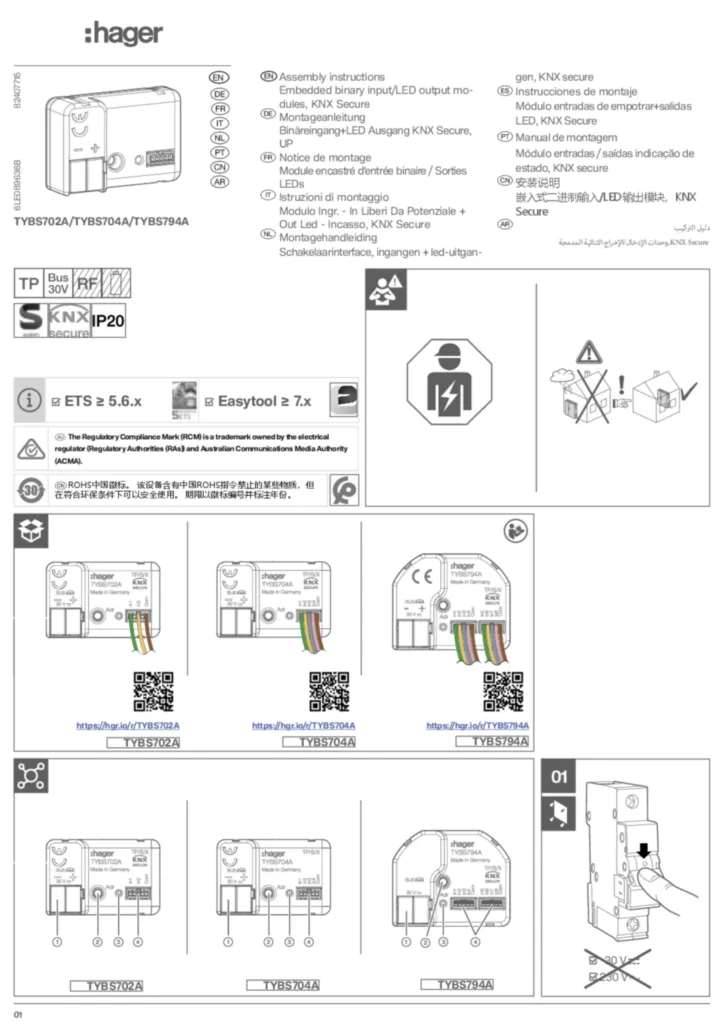

Installation manual
Installation manual en-GB, de-DE, fr-FR, it-IT, nl-NL, pt-PT, zh-CN 2023-12-15
PDF3,05 MB -
Manual
Manual en-GB 2021-11-10
PDF2,67 MB -
KNX product database
KNX product database International 2024-05-06
KNXPROD1,16 MB -
Application Guide
Application Guide en-GB 2024-06-27
PDF1,57 MB -
Declaration of conformity
EU Declaration of Conformity
Declaration of conformity en-GB, fr-FR 2024-03-28
PDF360,90 kB
UKCA Declaration of Conformity
Declaration of conformity en-GB 2024-03-28
PDF270,31 kB
