Building management system KNX

Radio Window contact battery-powered, KNX, Quicklink, White TRC301B

EAN-Nr.

3250615989116

Packaging

1 piece

Technical characteristics
Documentations
More products

Download the sheet

Technical characteristics

Bus system

Radio frequent

Supported configuration mode

ETS, easy, quicklink

Number of entry circuits

2

With bus system KNX radio

Yes

External signal voltage necessary

No
Radio frequency bidirectional

No
With battery

Yes
With HVAC control

No

Frequency transmission

868 - 868 MHz

Mounting on

Surface mounting

Number of half modules of 17,5 mm

0

LED controlling

Yes

Colour

White
RAL code

9010

Ingress Protection (IP) class

IP31

Operating temperature

0 - 50 °C

Input voltage

3 - 3 V
Type voltage supply

DC

Height

26 mm
Depth

30 mm

Installation mode

With adapters for magnet height compensation
Type of connection

With additional screw terminals for wired reed contacts

Downloads

Product Image TRC301B
Product datasheet

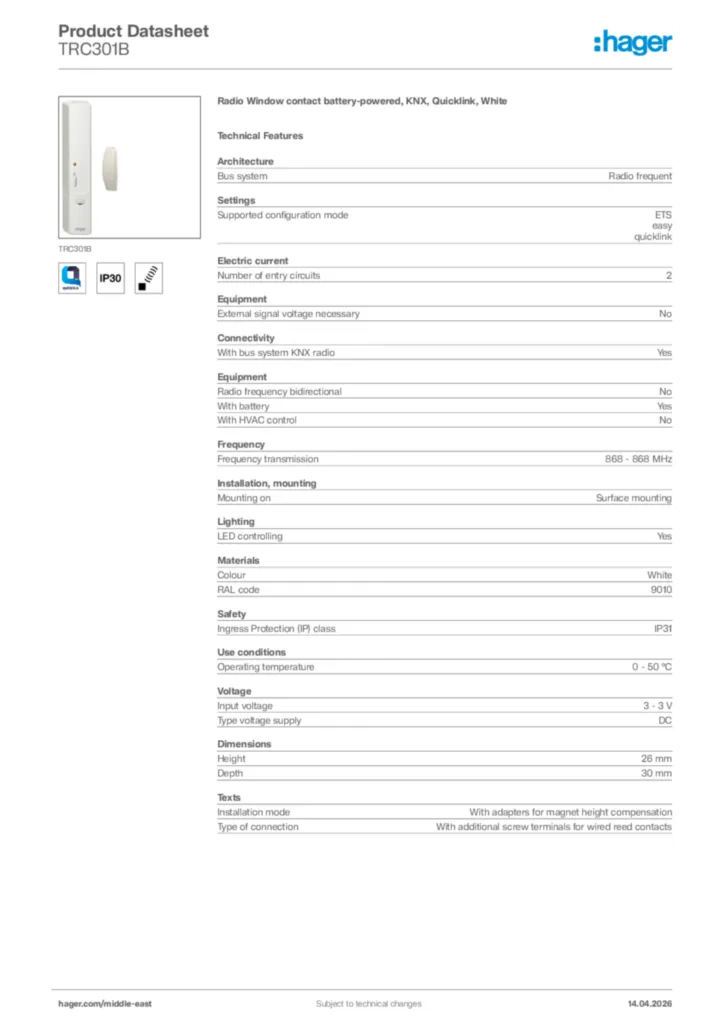

Hager Product data sheet TRC301B

Radio Window contact battery-powered, KNX, Quicklink, White

PDF
Installation manual

Installation manual en-GB, fr-FR, de-DE, it-IT, pl-PL 2010-09-28

PDF

2,05 MB
Product attachment

Configuration guide quicklink (DE-FR-IT-NL, 2016-02)

Product attachment International 2020-01-01

PDF

1,18 MB
KNX product database

Logiciel d'application ETS du TRC301B

KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01

KNXPROD

4,72 MB

Logiciel d'application ETS du TRC301B

KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01

VD5

5,62 MB
Application Guide

description d'application TRC301B

Application Guide en-GB, pl-PL 2020-01-01

PDF

859,41 kB
Function description

PD_TRC301B_TX100_GB

Function description en-GB 2012-03-30

PDF

2,53 MB
