    • Home
    • Catalogue
    • Building management system KNX
    • Push buttons & Sensors
    • Binary inputs
    • TXA306
    EAN-Nr.
    3250616049260
    Packaging
    1 piece
    • Binary inputs

    Binary input 6 fold, universal, modular, KNX TXA306

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Binary input 6 fold, universal, modular, KNX

    TXA306

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Architecture
    • Bus system
      EIB
    Settings
    • Supported configuration mode
      ETS, easy
    Electric current
    • Number of entry circuits
      6
    Connectivity
    • With bus system KNX radio
      No
    Equipment
    • External signal voltage necessary
      No
    • Radio frequency bidirectional
      No
    • With battery
      No
    • With HVAC control
      No
    Installation, mounting
    • Mounting on
      DIN rail
    Internal use only
    • Number of half modules of 17,5 mm
      8
    Lighting
    • LED controlling
      No
    Materials
    • Material
      Plastic
    • Colour
      Light grey
    • RAL code
      7035
    Safety
    • Ingress Protection (IP) class
      IP20
    Use conditions
    • Operating temperature
      0 - 45 °C
    Voltage
    • Input voltage
      24 - 230 V
    • Operating voltage over bus
      21 - 32 V
    • Type voltage supply
      AC/DC
    Dimensions
    • Length
      70 mm
    • Height
      90 mm
    • Depth
      60 mm
    Texts
    • Type of connection
      With quickconnect plug-in terminals

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Heating actuator 6 channels KNX, with regulation, 24/230V
    PDF
    266,23 kB
    Hager REACH declaration TXA306
    PDF
    Hager RoHS report TXA306
    PDF

    Downloads

    • Image TXA306 | Hager

      Product Image TXA306

    • Product datasheet

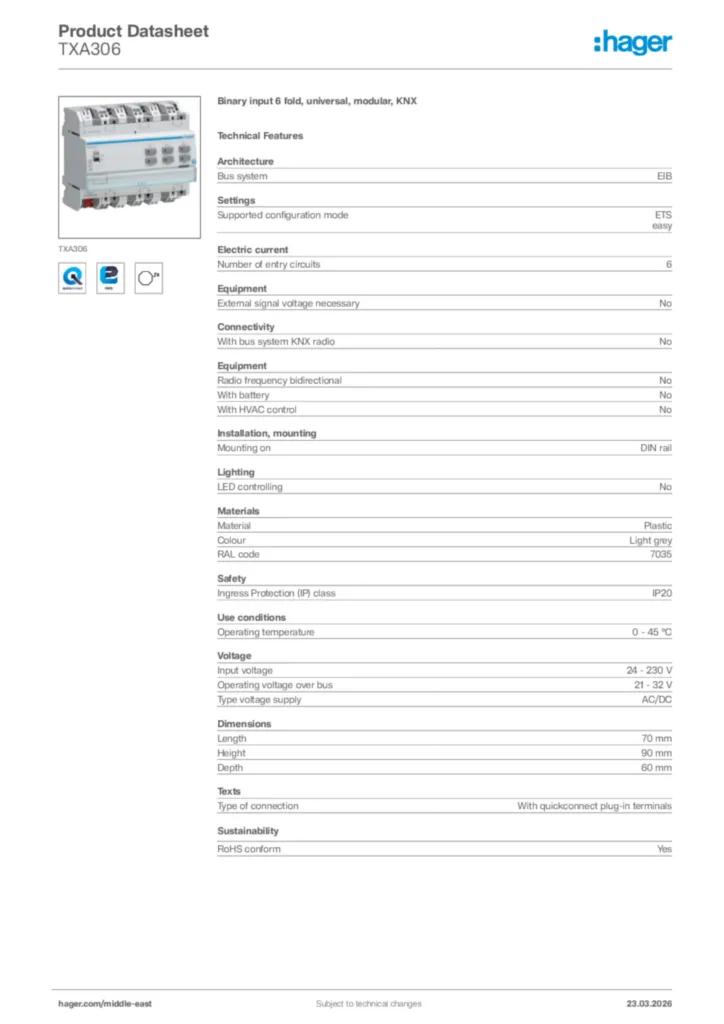

      Image Hager Product data sheet TXA306 | Hager

      Hager Product data sheet TXA306

      Binary input 6 fold, universal, modular, KNX

      PDF

    • Operating manual

      Image Operating manual en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pt-PT, sv-SE 2022-02-10 | Hager

      Operating manual en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pt-PT, sv-SE 2022-02-10

      PDF
      5,16 MB

    • KNX product database

      Image Logiciel d'application ETS du TXA306 | Hager

      Logiciel d'application ETS du TXA306

      KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01

      KNXPROD
      702,32 kB
      Image Logiciel d'application ETS du TXA306 | Hager

      Logiciel d'application ETS du TXA306

      KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01

      VD5
      1,71 MB
