Module 1 FM output 4A free of potential + 2 inputs mains powered, KNX radio TRM694G
EAN-Nr.
3250615988812
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Connectivity
-
Radio protocolKNX Radio
-
Receiver category2
-
With bus system KNXNo
-
With bus system KNX radioYes
Settings
-
Supported configuration modeETS, easy, quicklink
Dimensions
-
Height40 mm
-
Width40 mm
-
Depth20 mm
-
Built-in depth40 mm
Materials
-
ColourLight grey
Equipment
-
Radio frequency bidirectionalYes
-
With switch for manual switchYes
Electric current
-
Rated current4 A
Frequency
-
Frequency50 - 50 Hz
-
Radio reception frequency868.30 - 868.30 MHz
Power
-
Output power920 W
-
230 V incandescent and halogen lamp600 W
Voltage
-
Operating voltage230 - 230 V
-
Rated operational voltage Ue230 - 230 V
-
System supply voltage230 V AC
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-10 - 50 °C
Connection
-
Cross-section rigid conductor0.5 - 2.5 mm²
-
Cross-section flexible conductor0.5 - 1.5 mm²
Texts
-
FunctionEasy additional functions: +6 scenes, Repeat function can be activated to increase the radio range, Reset function (to factory setting)
-
Installation modeFor installation behind flush-mounted inserts
-
Type of connectionWith screw-in lift terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

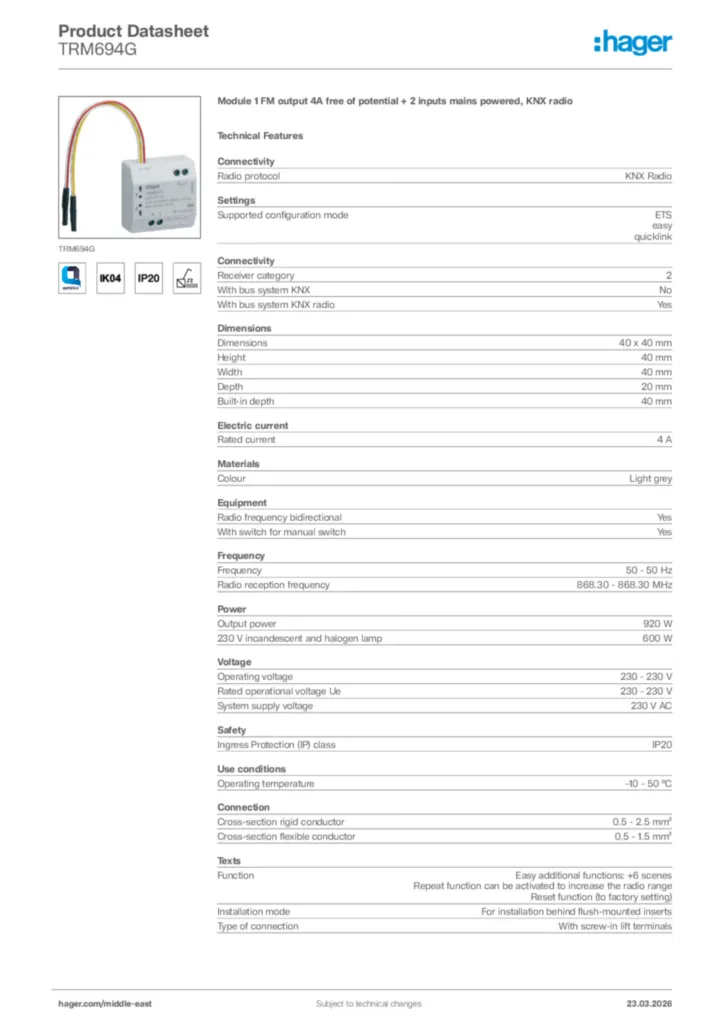

Product datasheet
Hager Product data sheet TRM694G
Module 1 FM output 4A free of potential + 2 inputs mains powered, KNX radio
PDF -
Instruction manual
Instruction manual fr-FR, de-DE, en-GB, nl-NL, it-IT 2017-03-28
PDF2,83 MB -
Installation manual
Installation manual en-GB, es-ES, pl-PL, pt-PT 2016-03-03
PDF11,15 MB -
Product attachment
Configuration guide quicklink (DE-FR-IT-NL, 2016-02)
Product attachment International 2020-01-01
PDF1,18 MB -
KNX product database
KNX product database en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pl-PL, pt-PT, sv-SE 2020-01-01
KNXPROD451,26 kB -
Application Guide
Application description ETS-Easy TRM690G_TRM693G_TRM694G
Application Guide en-GB, pl-PL 2015-02-12
PDF6,41 MB -
Declaration of conformity
EU Declaration of Conformity
Declaration of conformity en-GB, fr-FR 2024-11-26
PDF123,52 kB
