    Module 2 inputs flush mounted 230V KNX QL TRB302B

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Module 2 inputs flush mounted 230V KNX QL

    TRB302B

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Must-have accessories

    Previous
    Previous
    181110
    181110
    Push-button, NO contact, TS, chrome glossy, brass galvanised
    Add to a list
    Add to a list
    181112
    181112
    Push-button, NO contact, TS, gold glossy, 24-carat galvanised
    Add to a list
    Add to a list
    181113
    181113
    Push-button, NO contact, TS, stainless steel matt, brushed nickel
    Add to a list
    Add to a list

    Compatible products

    • Referenced by 3 products available

    Referenced by

    • 181110

      Push-button, NO contact, TS, chrome glossy, brass galvanised
      0.00 €  / *
    • 181112

      Push-button, NO contact, TS, gold glossy, 24-carat galvanised
      0.00 €  / *
    • 181113

      Push-button, NO contact, TS, stainless steel matt, brushed nickel
      0.00 €  / *

    Technical characteristics

    Architecture
    • Bus system
      Radio frequent
    Settings
    • Supported configuration mode
      ETS, easy
    Electric current
    • Number of entry circuits
      2
    Connectivity
    • With bus system KNX radio
      Yes
    Equipment
    • External signal voltage necessary
      No
    • Radio frequency bidirectional
      No
    • With battery
      No
    • With HVAC control
      No
    Frequency
    • Frequency transmission
      868 - 868 MHz
    Installation, mounting
    • Mounting on
      Flush mounting
    Internal use only
    • Number of half modules of 17,5 mm
      0
    Lighting
    • LED controlling
      No
    Materials
    • Material
      Plastic
    • Colour
      Light grey
    • RAL code
      7035
    Safety
    • Ingress Protection (IP) class
      IP20
    Use conditions
    • Operating temperature
      -5 - 45 °C
    Cable
    • Cable length
      0.20 m
    Voltage
    • Input voltage
      5 - 5 V
    • Type voltage supply
      AC
    Texts
    • Installation mode
      For installation behind flush-mounted inserts
    • Type of connection
      With screw-in lift terminals

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration TRB302B
    PDF
    RoHS report TRB302B
    PDF

    Downloads

    • Image TRB302B | Hager

      Product Image TRB302B

    • Product datasheet

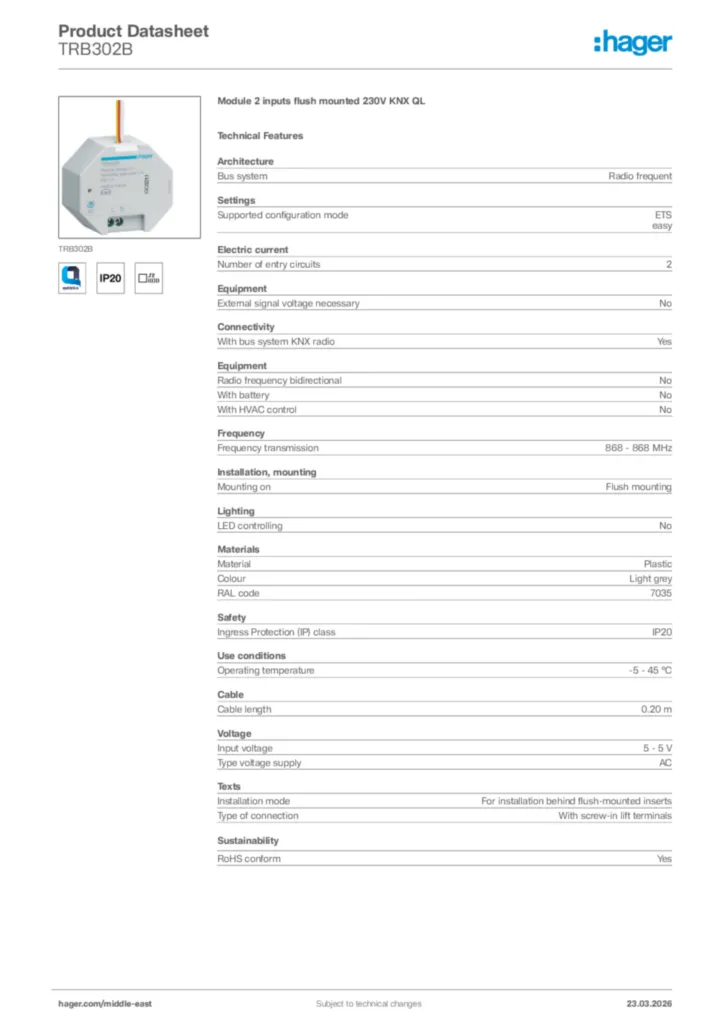

      Image Hager Product data sheet TRB302B | Hager

      Hager Product data sheet TRB302B

      Module 2 inputs flush mounted 230V KNX QL

      PDF

    • Installation manual

      Image Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pl-PL, pt-PT, sv-SE 2013-05-13 | Hager

      Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pl-PL, pt-PT, sv-SE 2013-05-13

      PDF
      3,17 MB

    • Product attachment

      Image Configuration guide quicklink (DE-FR-IT-NL, 2016-02) | Hager

      Configuration guide quicklink (DE-FR-IT-NL, 2016-02)

      Product attachment International 2020-01-01

      PDF
      1,18 MB
