    Binary 2 inputs device flush mounted battery powered KNX RF TRM702A

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Binary 2 inputs device flush mounted battery powered KNX RF

    TRM702A

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Settings
    • Supported configuration mode
      ETS, easy, quicklink
    Electric current
    • Number of entry circuits
      2
    Connectivity
    • With bus system KNX radio
      Yes
    Equipment
    • External signal voltage necessary
      No
    • Radio frequency bidirectional
      Yes
    • With battery
      Yes
    • With HVAC control
      No
    Installation, mounting
    • Mounting on
      Flush mounting
    Lighting
    • LED controlling
      No
    Materials
    • Material
      Plastic
    • Colour
      Light grey
    • RAL code
      7035
    Safety
    • Ingress Protection (IP) class
      IP30
    Use conditions
    • Operating temperature
      -10 - 50 °C
    Cable
    • Cable length
      0.20 m
    Voltage
    • Input voltage
      3 - 3 V
    • Type voltage supply
      DC
    • System supply voltage
      3 V
    Dimensions
    • Height
      39 mm
    • Depth
      11 mm
    Texts
    • Installation mode
      For installation behind flush-mounted inserts

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration TRM702A
    PDF
    Hager RoHS report TRM702A
    PDF

    Downloads

    • Image TRM702A | Hager

      Product Image TRM702A

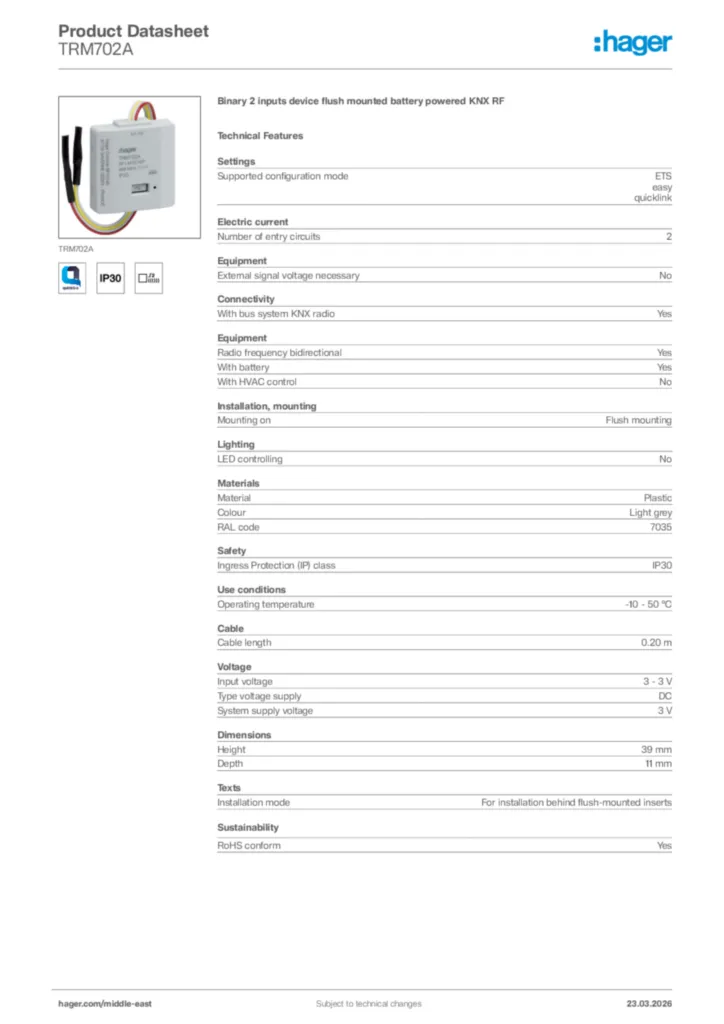

    • Product datasheet

      Image Hager Product data sheet TRM702A | Hager

      Hager Product data sheet TRM702A

      Binary 2 inputs device flush mounted battery powered KNX RF

      PDF

    • Product attachment

      Image Configuration guide quicklink (DE-FR-IT-NL, 2016-02) | Hager

      Configuration guide quicklink (DE-FR-IT-NL, 2016-02)

      Product attachment International 2020-01-01

      PDF
      1,18 MB

    • KNX product database

      Image KNX product database en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pl-PL, pt-PT, sv-SE 2020-01-01 | Hager

      KNX product database en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pl-PL, pt-PT, sv-SE 2020-01-01

      KNXPROD
      424,45 kB

    • Application Guide

      Image Application description ETS-Easy TRM702A | Hager

      Application description ETS-Easy TRM702A

      Application Guide en-GB, pl-PL 2015-02-12

      PDF
      3,68 MB

    • Declaration of conformity

      Image * | Hager

      *

      Declaration of conformity International 2022-06-24

      PDF
      120,37 kB
