Module 1 flush mounted dimmer 200W, 2 wires + 2 inputs, KNX radio TRM691E
EAN-Nr.
3250615989048
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Voltage
-
System supply voltage230 V AC
Frequency
-
Frequency50 - 50 Hz
Use conditions
-
Operating temperature-15 - 45 °C
Connection
-
Cross-section flexible conductor0.5 - 1.5 mm²
-
Cross-section rigid conductor0.5 - 2.5 mm²
Equipment
-
Number of outputs1
-
Type of dimmerUniversal
Lighting
-
LED lamp power50 W
Capacity
-
Number of modules0
Power
-
Power incandescent lamp200 - 200 W
-
Power of variator200 - 200 W
Connectivity
-
With bus system KNX radioYes
-
Type of connectionScrew terminal
Settings
-
Supported configuration modequicklink
Texts
-
FuseShort-circuit and overload-proof (electronic fuse)
-
Dimming principlePhase cut-on or cut-off according to load type, self-learning
-
FunctionReset function (to factory setting)
-
Type of connectionWith screw-in lift terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

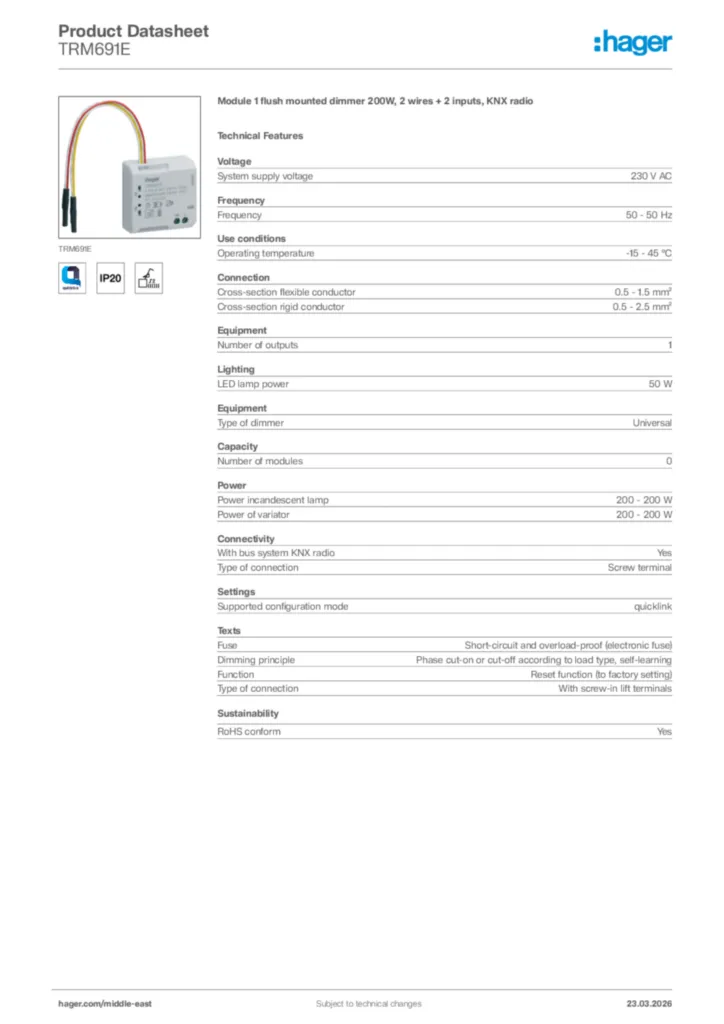

Hager Product data sheet TRM691E
