    Universal input/output interface 8gang KNX 75648001

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Universal input/output interface 8gang KNX

    75648001

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Compatible products

    • Referenced by 3 products available

    Referenced by

    • 181110

      Push-button, NO contact, TS, chrome glossy, brass galvanised
      0.00 €  / *
    • 181112

      Push-button, NO contact, TS, gold glossy, 24-carat galvanised
      0.00 €  / *
    • 181113

      Push-button, NO contact, TS, stainless steel matt, brushed nickel
      0.00 €  / *

    Technical characteristics

    Settings
    • Supported configuration mode
      ETS
    Electric current
    • Number of entry circuits
      8
    Connectivity
    • With bus system KNX radio
      No
    Equipment
    • External signal voltage necessary
      No
    • Radio frequency bidirectional
      No
    Installation, mounting
    • Mounting on
      Flush mounting
    Lighting
    • LED controlling
      Yes
    Materials
    • Colour
      Black
    • RAL code
      9005
    Safety
    • Ingress Protection (IP) class
      IP20
    Use conditions
    • Operating temperature
      -5 - 45 °C
    Cable
    • Cable length
      10 m
    Voltage
    • Input voltage
      20 - 20 V
    • Operating voltage over bus
      21 - 32 V
    • Type voltage supply
      AC/DC
    Dimensions
    • Height
      48 mm
    • Depth
      32 mm
    Texts
    • Type of connection
      With screw terminals

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    Hager REACH declaration 75648001
    PDF
    Hager RoHS report 75648001
    PDF

    Downloads

    • Image 75648001 | Hager

      Product Image 75648001

    • Product datasheet

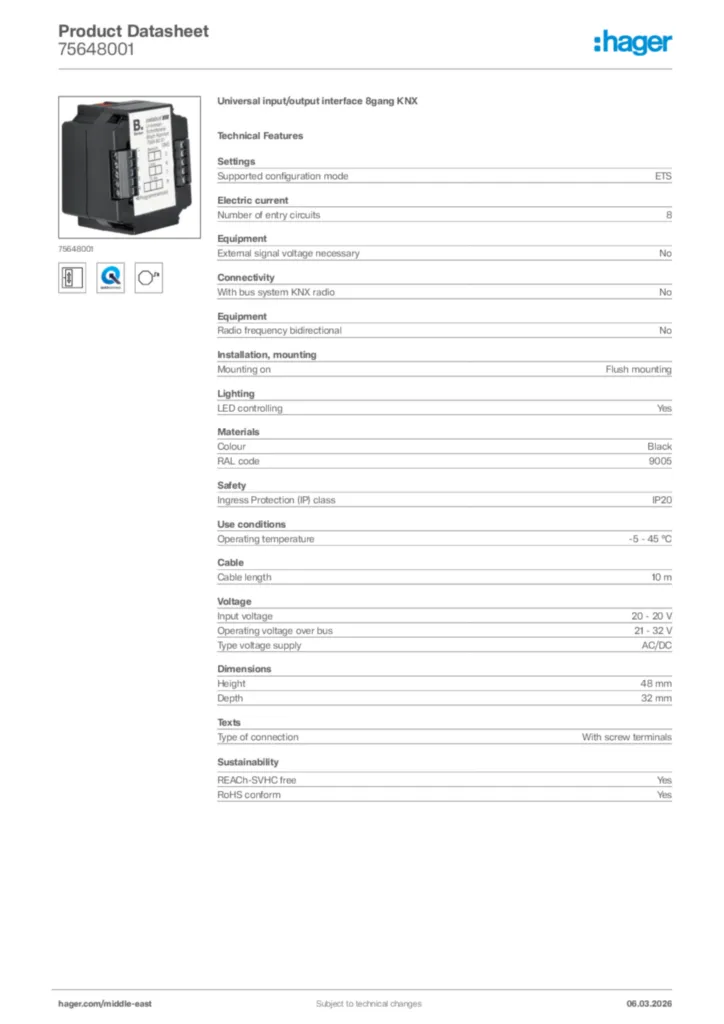

      Image Hager Product data sheet 75648001 | Hager

      Hager Product data sheet 75648001

      Universal input/output interface 8gang KNX

      PDF

    • Installation manual

      Image Manual for 75648001 - Universal interface 8gang flush-mounted (DE-EN-NL-FR-NO, 2003-04) | Hager

      Manual for 75648001 - Universal interface 8gang flush-mounted (DE-EN-NL-FR-NO, 2003-04)

      Installation manual en-GB, fr-FR, de-DE, nl-NL, nn-NO 2020-01-01

      PDF
      202,52 kB

    • KNX product database

      Image KNX Database (from ETS2) for 75648001 - Universal interface 8gang flush-mounted (2005-11) | Hager

      KNX Database (from ETS2) for 75648001 - Universal interface 8gang flush-mounted (2005-11)

      KNX product database International 2023-08-25

      VD1
      160,82 kB
      Image KNX Database (from ETS2) for 75648001 - Universal interface 8gang flush-mounted (2005-11) | Hager

      KNX Database (from ETS2) for 75648001 - Universal interface 8gang flush-mounted (2005-11)

      KNX product database International 2023-08-25

      VD1
      100,90 kB

    • Application Guide

      Image Application description ETS for 75648001 - Universal interface 8gang flush-mounted (EN, 2001-07) | Hager

      Application description ETS for 75648001 - Universal interface 8gang flush-mounted (EN, 2001-07)

      Application Guide en-GB 2020-01-01

      PDF
      283,79 kB

    • Declaration of conformity

      Image EU Declaration of Conformity | Hager

      EU Declaration of Conformity

      Declaration of conformity de-DE, en-US 2025-03-24

      PDF
      1,04 MB
