The Hager Gallery 2-gang vertical plate (71 mm) delivers a sleek, durable finish for switches or sockets. Brushed matt stainless-steel look (RAL 7048) with metal/PC construction, slim 9.3 mm profile, 159×92 mm. IK05 impact resistance and IP21 for indoor use. No labeling field. Ideal for modern residential or light commercial interiors, ensuring a clean, robust installation.
EAN
3250617195904
Packaging
1 Piece
Gallery plate 3-gang Vertical 71mm Brushed Stainless Steel IP21 IK05 WXP2142
Login to create a product list
You need to be logged into your myHager account to create product lists
Also available in
Product colour - Stainless steel
Bronze
Stainless steel
Number of gangs
Complete your system
Must-have accessories
WXA450
Frame gallery 2 modules
Optional accessories
-
Cover for push button 22 products available -
Surface-mounted housing for flush-mounted switching device 3 products available -
Touch sensor for bus system 11 products available -
Movement sensor for bus system 2 products available
Compatible products
-
Referenced by 3 products available
Complete your system
-
WXE306NCover KNX push button 6 gang gallery night
-
WXE302BCover KNX push button 2 gang gallery pure
-
WXE304NCover KNX push button 4 gang gallery night
-
WXE302DCover KNX push button 2 gang gallery dune
-
WXE304BCover KNX push button 4 gang gallery pure
-
WXE312DCover KNX push button 2 gang with LED gallery dune
-
WXE302NCover KNX push button 2 gang gallery night
-
WXE314TCover KNX push button 4 gang with LED gallery titane
-
WXE312BCover KNX push button 2 gang with LED gallery pure
-
WXE306TCover KNX push button 6 gang gallery titane
-
WXE316NCover KNX push button 6 gang with LED gallery night
-
WXE316T
Cover KNX push button 6 gang with LED gallery titane
-
WXE306DCover KNX push button 6 gang gallery dune
-
WXE312TCover KNX push button 2 gang with LED gallery titane
-
WXE306BCover KNX push button 6 gang gallery pure
-
WXE304TCover KNX push button 4 gang gallery titane
-
WXE304DCover KNX push button 4 gang gallery dune
-
WXE302TCover KNX push button 2 gang gallery titane
-
WXE314BCover KNX push button 4 gang with LED gallery pure
-
WXE314DCover KNX push button 4 gang with LED gallery dune
-
WXF094
Radio wall-transmitter, gallery, Quicklink, flatt, Battery, 4gang
-
WXF092Radio wall-transmitter, gallery, Quicklink, flatt, Battery, 2gang
-
WXT324KNX push button 4 gang with LED + IR gallery
-
WXT322KNX push button 2 gang with LED + IR gallery
-
WXT302KNX push button 2 gang gallery
-
WXT306KNX push button 6 gang gallery
-
WXT312KNX push button 2 gang with LED gallery
-
WXT304KNX push button 4 gang gallery
-
WXT316KNX push button 6 gang with LED gallery
-
WXT314KNX push button 4 gang with LED gallery
-
WXF096Radio wall-transmitter, gallery, Quicklink, flatt, Battery, 6gang
-
WXD010TRocker for switch gallery 1 module titane
-
WXD010NRocker for switch gallery 1 module night
-
WXD010BRocker for switch gallery 1 module pure-white
-
WXD011TRocker with light indicator switch gallery 1 module titane
-
WXD011NRocker with light indicator switch gallery 1 module night
-
WXD011BRocker with light indicator switch gallery 1 module pure-white
-
WXA012Lamp gallery for plate 2P 230V pure-white
-
WXA011Lamp gallery for plate 1P 12/24V AC/DC pure-white
-
WXA010Lamp gallery for plate 1P 230V pure-white
-
WXA696Lamp for switch gallery 12/24V red
-
WXA695Lamp for switch gallery 12/24/V white
-
WXA693Lamp for switch gallery 230V green
-
WXA692Lamp for switch gallery 230V white
-
WXA691Lamp for switch gallery 230V red
-
WXA690Lamp for switch gallery 230V blue
Technical properties
Capacity
-
Number of gangs2
Materials
-
ColourStainless steel
-
RAL code7048
-
Surface finishMatt
-
MaterialMetal, Polycarbonate (PC), Plastic
-
TreatmentBrushed
Dimensions
-
Height159 mm
-
Width92 mm
-
Depth9.30 mm
Accessories
-
Has labelling fieldNo
Installation, mounting
-
Mounting-/Connection PositionVertical
Safety
-
Ingress Protection (IP) classIP21
-
Impact resistance IKIK05
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

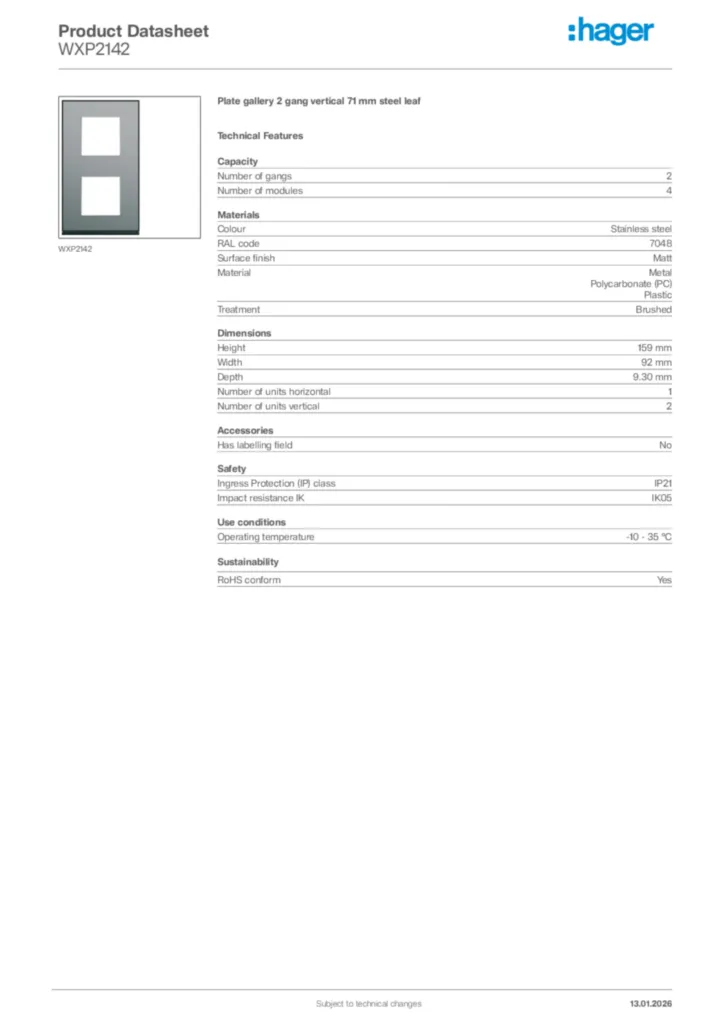

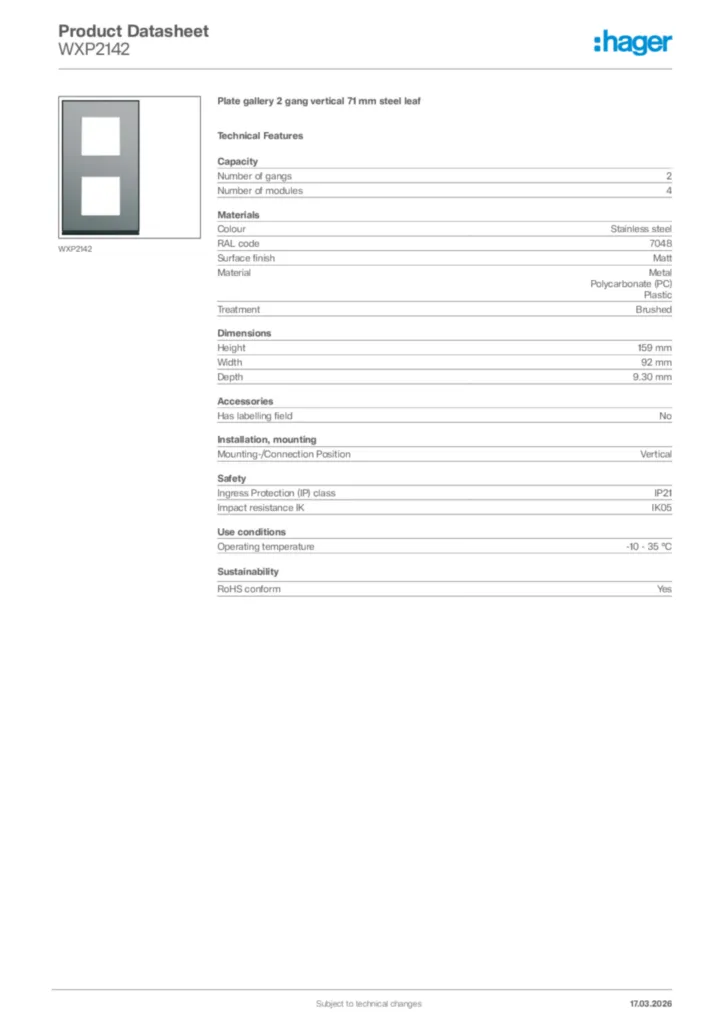

Product datasheet
Hager Product data sheet WXP2142
Plate gallery 2 gang vertical 71 mm steel leaf
PDF -
Product certificate
Product certificate en-GB 2023-02-14
Product certificate en-GB 2024-03-19
PDF967,62 kB -
Declaration of conformity
Declaration of conformity International 2022-03-02
PDF99,87 kB
dc24-0011
Declaration of conformity en-GB 2024-05-28
PDF364,74 kB
