The Hager electronic thermostat (gallery range) provides precise room temperature control for electric heating. Rotary operation sets 5-30°C with a 0.7 K differential. Rated 8 A at 230 V/50 Hz with 1NO contact, it suits radiators or underfloor heating up to 8 A. Compact 45×45×30 mm, white PC, IP20. Digital control without display ensures simple, reliable use and energy efficiency class IV (2%).
EAN
3250617190022
Packaging
1 Piece
Pilot wire thermostat 230V 8A Rotative control 1NO IP20 WXF315
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
Compatible products
-
Referenced by 83 products available
Referenced by
-
WXP0704Plate gallery plastic plastic 4 modules enteraxe 71mm river
-
WXP0334Plate gallery plastic plastic 4 modules enteraxe 57mm dune
-
WXP0804Plate gallery plastic plastic 4 modules enteraxe 71mm peacock
-
WXP0802Plate gallery 1 gang plastic plastic peacock
-
WXP0834Plate gallery plastic plastic 4 modules enteraxe 57mm peacock
-
WXP0934Plate gallery plastic plastic 4 modules enteraxe 57mm taupe
-
WXP1002Frame gallery 1-gang anthracite, plastic dark grey matt
-
WXP1004Frame gallery 4 modules anthracite, plastic dark grey matt
-
WXP1034Plate gallery plastic plastic 4 modules enteraxe 57mm anthracite
-
WXP0904Plate gallery plastic plastic 4 modules enteraxe 71mm taupe
-
WXP0734Plate gallery plastic plastic 4 modules enteraxe 57mm river
-
WXP0702Plate gallery plastic plastic 1 gang river
-
WXP0634Plate gallery plastic plastic 4 modules enteraxe 57mm eglantine
-
WXP0604Plate galleryplastic plastic 4 modules enteraxe 71mm eglantine
-
WXP0602Plate gallery plastic plastic 1 gang eglantine
-
WXP0534Plate gallery plastic plastic 4 modules enteraxe 57mm rosé
-
WXP0504Plate gallery plastic plastic 4 modules enteraxe 71mm rosé
-
WXP0434Plate gallery plastic plastic 4 modules enteraxe 57mm champagne
-
WXP0404Frame gallery 4 modules entraxe 71 mm champagne, plastic golden matt
-
WXP0402Frame gallery 1-gang champagne, plastic golden matt
Technical properties
Architecture
-
Control/operation elementRotative
Electric current
-
Rated current8 A
-
Max. switching current8 A
Voltage
-
Nominal voltage230 - 230 V
Power supply
-
Supply voltage230 V
Frequency
-
Frequency50 - 50 Hz
Settings
-
Comfort temperature setpoint5 - 30 °C
Materials
-
ColourWhite
-
RAL code7011
-
MaterialPolycarbonate (PC)
-
TreatmentUntreated
Dimensions
-
Height45 mm
-
Width45 mm
-
Depth30 mm
Screen
-
With displayNo
Equipment
-
Switching temperature difference0.70 K
-
Type of thermostatDigital
-
With heaterYes
Connection
-
Type of contacts1NO
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Energy efficiency classIV (2%)
Downloads
-
Product datasheet

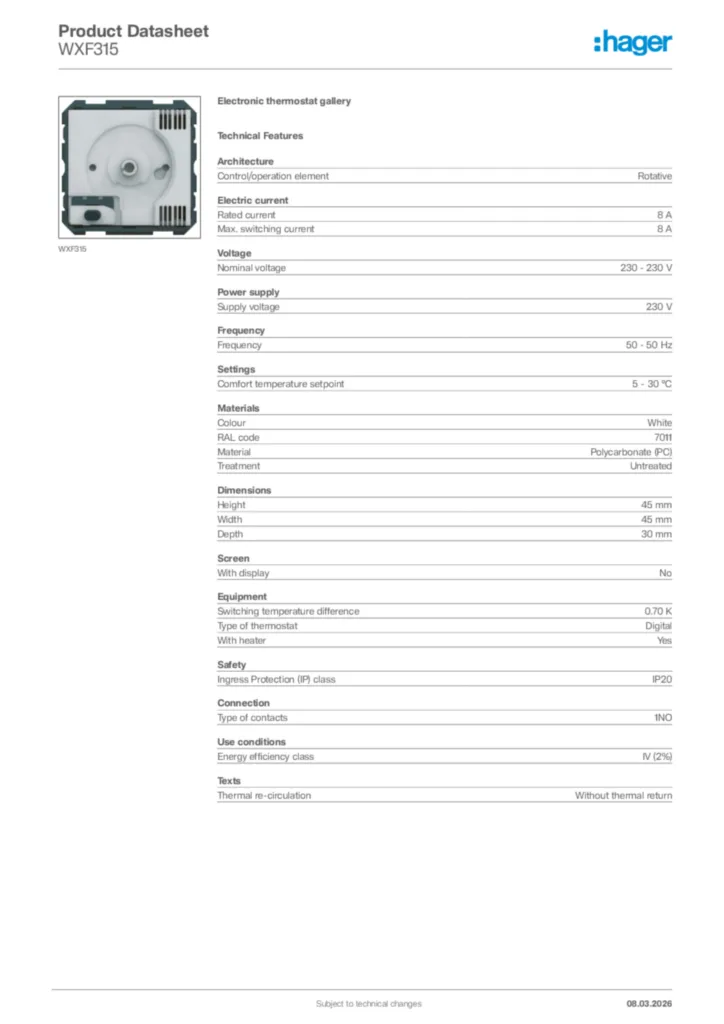

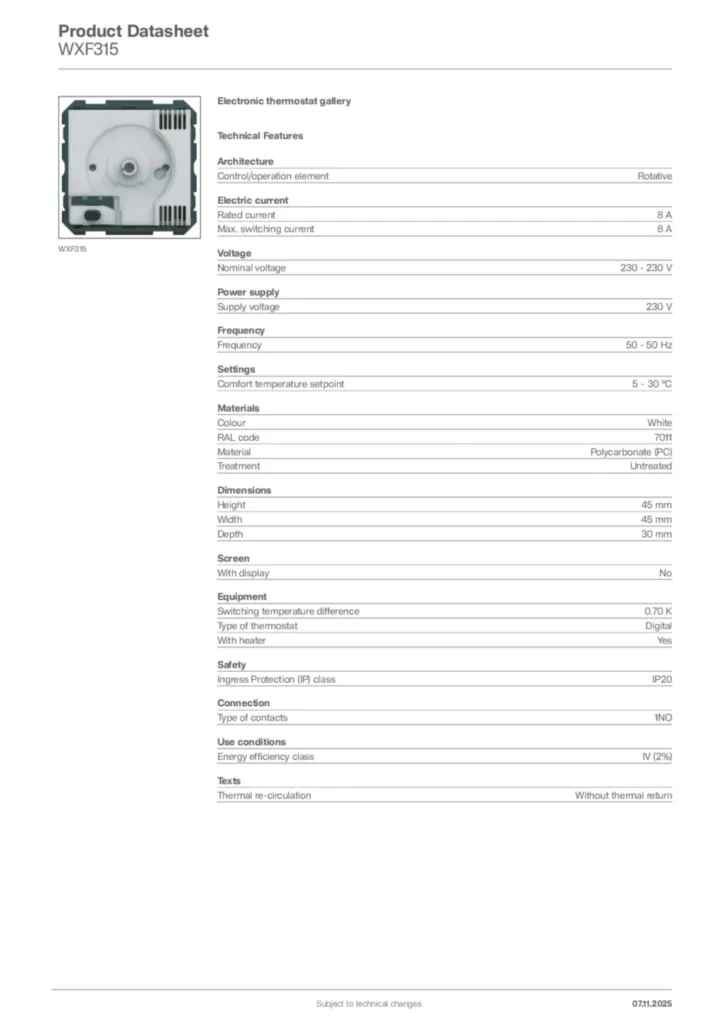

Hager Product data sheet WXF315
Electronic thermostat gallery
PDF -
Declaration of conformity
Declaration of conformity International 2020-01-01
PDF211,44 kB
