The Hager cubyko Triple horizontal 2P+E screwless flush-mounted socket (pure white RAL9010) offers three French-standard outlets for safe distribution. Rated 16A, 50-60 Hz, it features plug-in terminals for fast wiring, self-closing hinged lids, and IP55/IK07 protection for dust, splash, and impact resistance. A compact 6‑module design for 40 mm boxes, ideal for kitchens, garages, terraces, and light commercial spaces.

EAN

3250617173247

Packaging

cubyko - flush-mounted version

Intermediate switch 10A 2-way Screwless click mounting LED-ready 2 modules WNE123B

Name: WNE123B
Brand: Hager
SKU: WNE123B

Also available in

Product colour - Pure white

Surface finish

Matt, Satin finish Satin finish

Technical properties
Environmental value
Documentations
More products

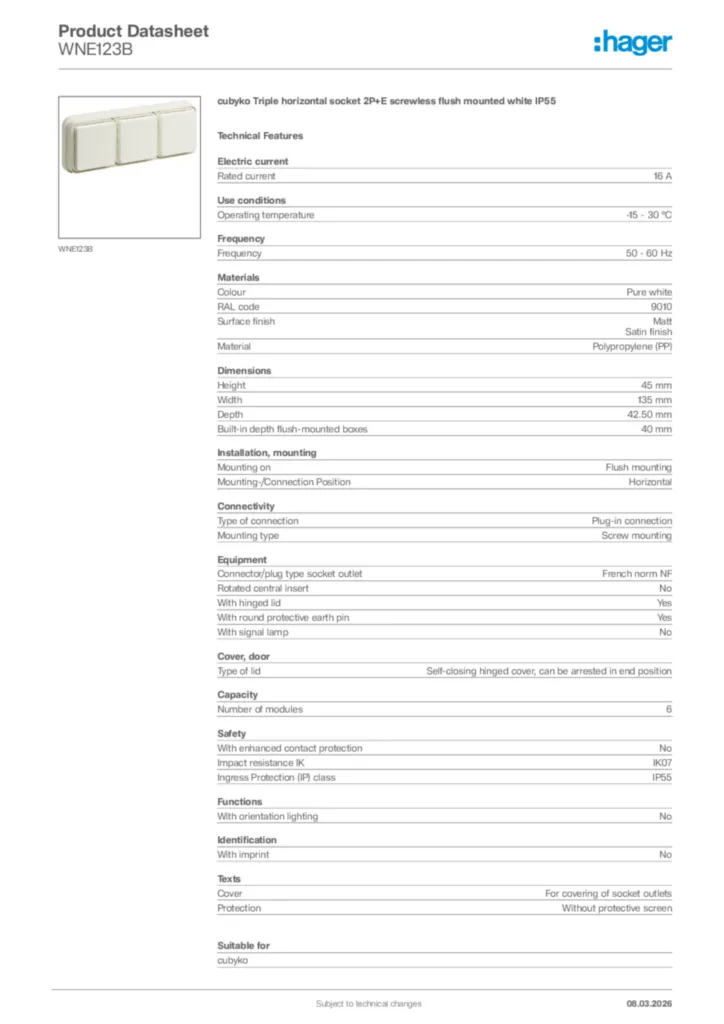

Download the data sheet

Technical properties

Rated current

16 A

Frequency

50 - 60 Hz

Colour

Pure white
RAL code

9010
Surface finish

Matt, Satin finish
Material

Polypropylene (PP)

Height

45 mm
Width

135 mm
Depth

42.50 mm
Built-in depth flush-mounted boxes

40 mm

Mounting on

Flush mounting
Mounting-/Connection Position

Horizontal

Type of connection

Plug-in connection
Mounting type

Screw mounting

Connector/plug type socket outlet

French norm NF
Rotated central insert

No
With hinged lid

Yes
With round protective earth pin

Yes
With signal lamp

No

Type of lid

Self-closing hinged cover, can be arrested in end position

Number of modules

6

With enhanced contact protection

No
Impact resistance IK

IK07
Ingress Protection (IP) class

IP55

With orientation lighting

No

With imprint

No

Related Systems

cubyko

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

REACh-SVHC free Yes
