Binary input 4 fold + LED output 4 fold, flush mounted, KNX TYBS794A

EAN
3250610050545
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Binary input 4 fold + LED output 4 fold, flush mounted, KNX

TYBS794A

  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Technical properties

Archi­tec­ture
  • Bus system
    EIB
Settings
  • Supported config­ur­a­tion mode
    ETS, easy
Elec­tric current
  • Number of entry circuits
    8
Connectivity
  • With bus system KNX radio
    No
Equip­ment
  • External signal voltage neces­sary
    No
  • Radio frequency bidirec­tional
    No
  • With battery
    No
  • With HVAC control
    No
Install­a­tion, mounting
  • Mounting on
    Flush mounting
Lighting
  • LED controlling
    No
Mater­ials
  • Material
    Plastic
  • Colour
    Light grey
  • RAL code
    7035
Safety
  • Ingress Protec­tion (IP) class
    IP20
Use condi­tions
  • Oper­ating temper­ature
    -5-+45 °C
Cable
  • Cable length
    0.25 m
Voltage
  • Input voltage
    5-5 V
  • Oper­ating voltage over bus
    21-32 V
  • Type voltage supply
    DC
  • System supply voltage
    30 V DC Via bus
Dimen­sions
  • Length
    43.5 mm
  • Height
    35.5 mm
  • Depth
    15.4 mm
Texts
  • Install­a­tion mode
    For flush-­mounted and hollow wall mounting
  • Type of connec­tion
    With pre-assembled cable

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

PEP document en-GB 2024-04-12
PDF
412,93 kB
REACH declaration TYBS794A
PDF
RoHS report TYBS794A
PDF

Downloads

  • Image TYBS794A | Hager Africa

    Product Image TYBS794A

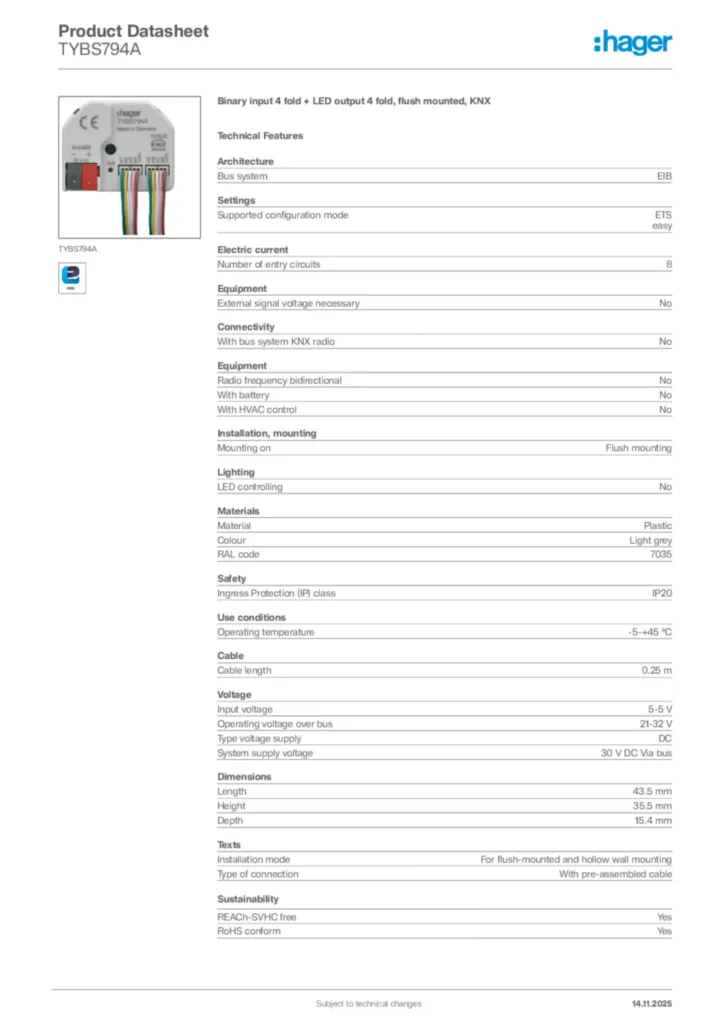

  • Product datasheet

    Image undefined | Hager Africa

    undefined

    PDF

  • Instruction manual

    Image Instruction manual en-GB 2025-04-01 | Hager Africa

    Instruction manual en-GB 2025-04-01

    PDF
    1,05 MB

  • Installation manual

    Image Installation manual en-GB, de-DE, fr-FR, it-IT, nl-NL, pt-PT, zh-CN 2023-12-15 | Hager Africa

    Installation manual en-GB, de-DE, fr-FR, it-IT, nl-NL, pt-PT, zh-CN 2023-12-15

    PDF
    3,05 MB

  • Manual

    Image Manual en-GB 2021-11-10 | Hager Africa

    Manual en-GB 2021-11-10

    PDF
    3,33 MB

  • KNX product database

    Image KNX product database International 2024-05-06 | Hager Africa

    KNX product database International 2024-05-06

    KNXPROD
    1,44 MB

  • Application Guide

    Image Application Guide en-GB 2024-06-27 | Hager Africa

    Application Guide en-GB 2024-06-27

    PDF
    1,57 MB

  • Declaration of conformity

    Image EU Declaration of Conformity | Hager Africa

    EU Declaration of Conformity

    Declaration of conformity en-GB, fr-FR 2024-03-28

    PDF
    360,90 kB
    Image UKCA Declaration of Conformity | Hager Africa

    UKCA Declaration of Conformity

    Declaration of conformity en-GB 2024-03-28

    PDF
    270,31 kB
