Radio Window contact battery-powered, KNX, Quicklink, White TRC301B

EAN
3250615989116
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Radio Window contact battery-powered, KNX, Quicklink, White

TRC301B

  • Technical properties
  • Documentations
  • More products
Download the data sheet

Technical properties

Archi­tec­ture
  • Bus system
    Radio frequent
Settings
  • Supported config­ur­a­tion mode
    ETS, easy, quick­link
Elec­tric current
  • Number of entry circuits
    2
Connectivity
  • With bus system KNX radio
    Yes
Equip­ment
  • External signal voltage neces­sary
    No
  • Radio frequency bidirec­tional
    No
  • With battery
    Yes
  • With HVAC control
    No
Frequency
  • Frequency trans­mis­sion
    868 - 868 MHz
Install­a­tion, mounting
  • Mounting on
    Surface mounting
Internal use only
  • Number of half modules of 17,5 mm
    0
Lighting
  • LED controlling
    Yes
Mater­ials
  • Colour
    White
  • RAL code
    9010
Safety
  • Ingress Protec­tion (IP) class
    IP31
Use condi­tions
  • Oper­ating temper­ature
    0 - 50 °C
Voltage
  • Input voltage
    3 - 3 V
  • Type voltage supply
    DC
Dimen­sions
  • Height
    26 mm
  • Depth
    30 mm
Texts
  • Install­a­tion mode
    With adapters for magnet height compens­a­tion
  • Type of connec­tion
    With addi­tional screw terminals for wired reed contacts

Downloads

  • Image TRC301B | Hager Africa

    Product Image TRC301B

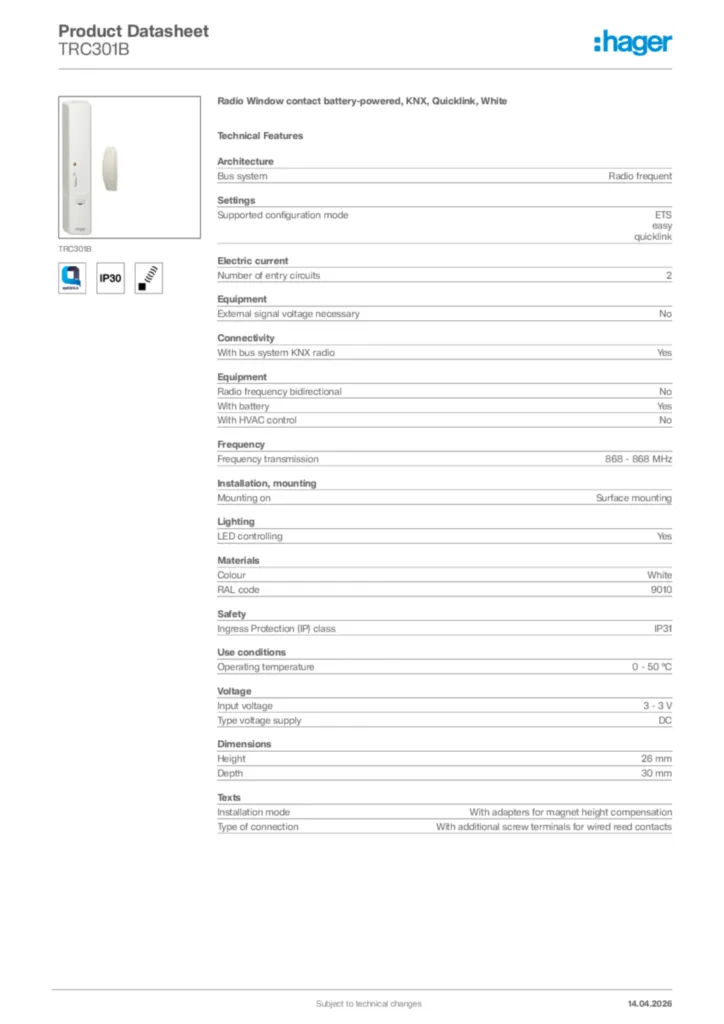

  • Product datasheet

    Image undefined | Hager Africa

    undefined

    PDF
