Binary 2 inputs device flush mounted battery powered KNX RF TRM702A

EAN
3250615989024
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Binary 2 inputs device flush mounted battery powered KNX RF

TRM702A

  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Technical properties

Settings
  • Supported config­ur­a­tion mode
    ETS, easy, quick­link
Elec­tric current
  • Number of entry circuits
    2
Connectivity
  • With bus system KNX radio
    Yes
Equip­ment
  • External signal voltage neces­sary
    No
  • Radio frequency bidirec­tional
    Yes
  • With battery
    Yes
  • With HVAC control
    No
Install­a­tion, mounting
  • Mounting on
    Flush mounting
Lighting
  • LED controlling
    No
Mater­ials
  • Material
    Plastic
  • Colour
    Light grey
  • RAL code
    7035
Safety
  • Ingress Protec­tion (IP) class
    IP30
Use condi­tions
  • Oper­ating temper­ature
    -10 - 50 °C
Cable
  • Cable length
    0.20 m
Voltage
  • Input voltage
    3 - 3 V
  • Type voltage supply
    DC
  • System supply voltage
    3 V
Dimen­sions
  • Height
    39 mm
  • Depth
    11 mm
Texts
  • Install­a­tion mode
    For install­a­tion behind flush-­mounted inserts

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

Hager REACH declaration TRM702A
PDF
Hager RoHS report TRM702A
PDF

Downloads

  • Image TRM702A | Hager Africa

    Product Image TRM702A

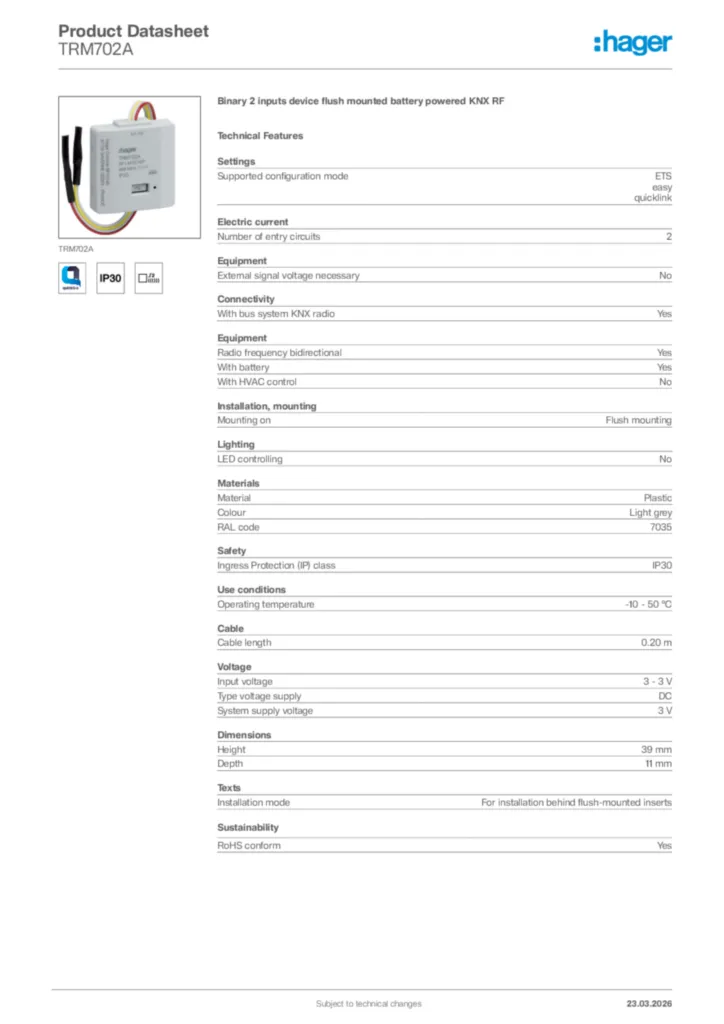

  • Product datasheet

    Image undefined | Hager Africa

    undefined

    PDF

  • Declaration of conformity

    Image * | Hager Africa

    *

    Declaration of conformity International 2022-06-24

    PDF
    120,37 kB
