Module 2 inputs flush mounted 230V KNX QL TRB302B
EAN
3250615989284
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Bus systemRadio frequent
Settings
-
Supported configuration modeETS, easy
Electric current
-
Number of entry circuits2
Connectivity
-
With bus system KNX radioYes
Equipment
-
External signal voltage necessaryNo
-
Radio frequency bidirectionalNo
-
With batteryNo
-
With HVAC controlNo
Frequency
-
Frequency transmission868 - 868 MHz
Installation, mounting
-
Mounting onFlush mounting
Internal use only
-
Number of half modules of 17,5 mm0
Lighting
-
LED controllingNo
Materials
-
MaterialPlastic
-
ColourLight grey
-
RAL code7035
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-5 - 45 °C
Cable
-
Cable length0.20 m
Voltage
-
Input voltage5 - 5 V
-
Type voltage supplyAC
Texts
-
Installation modeFor installation behind flush-mounted inserts
-
Type of connectionWith screw-in lift terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

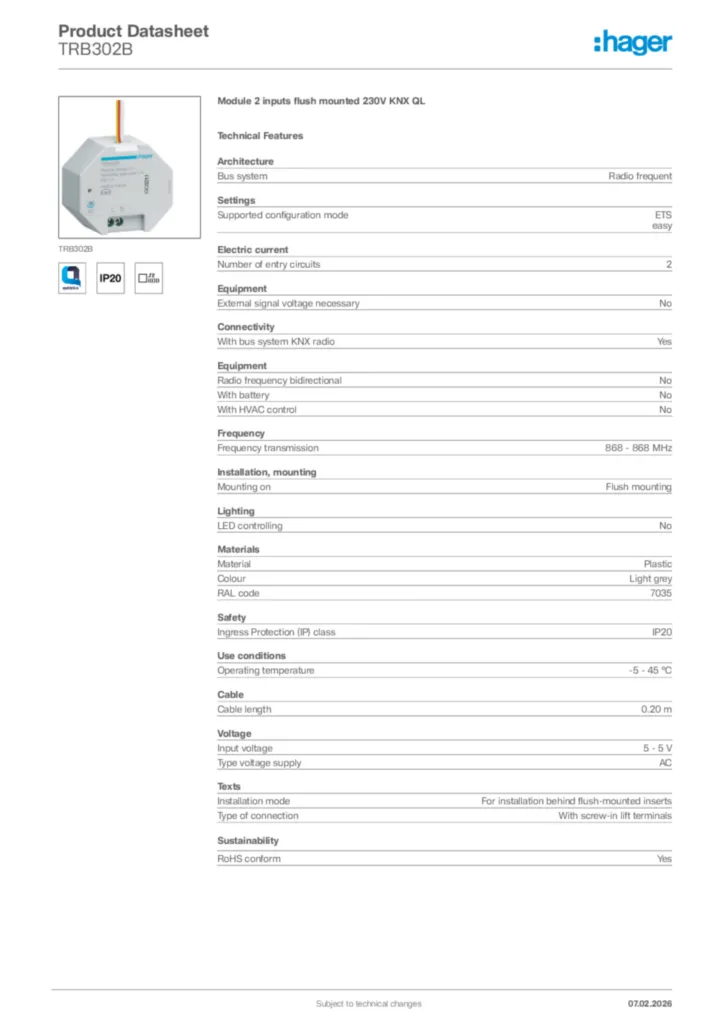

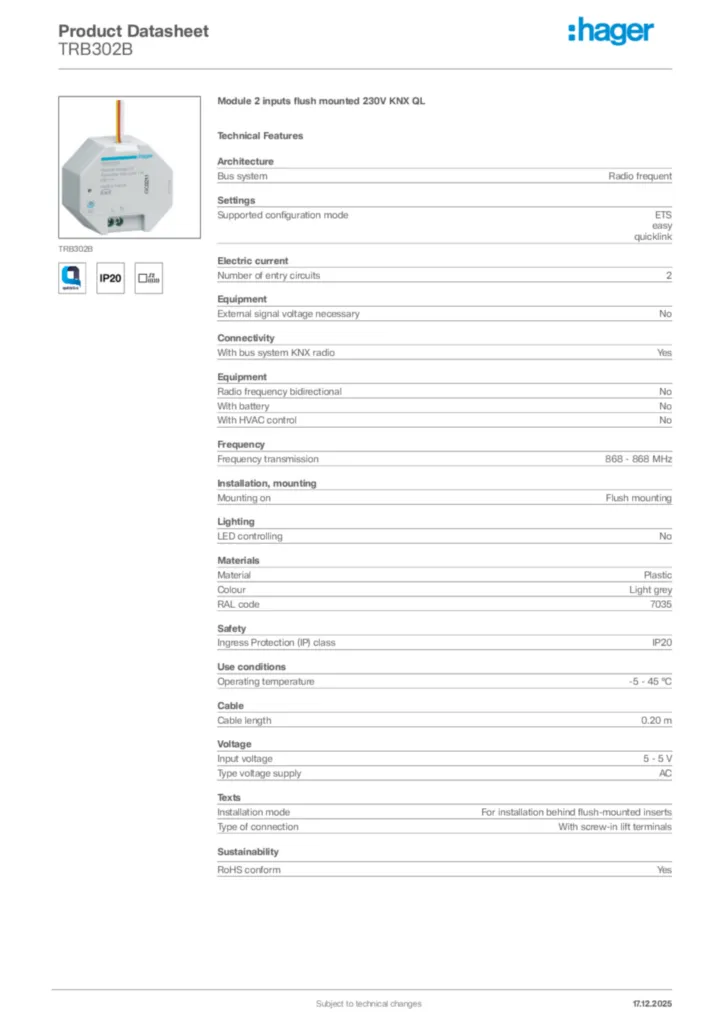

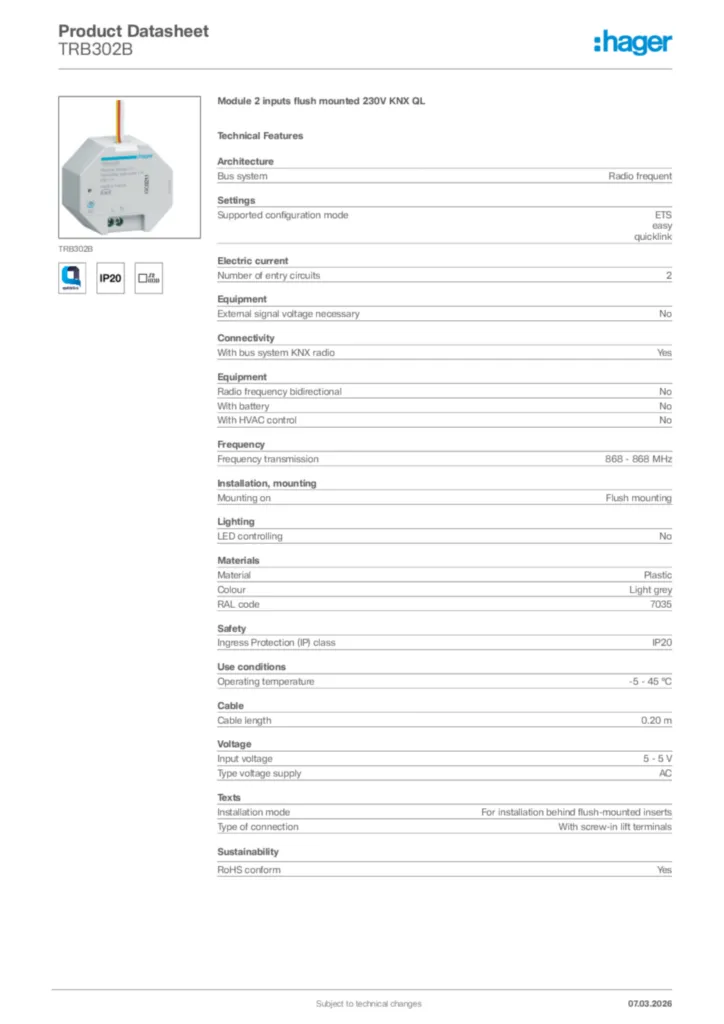

Product datasheet
