Power supply 30V DC 320 mA TXA111
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 11 products available
Referenced by
-
TYBS601BOutput module 1x 10A /230V~, flush mounted, KNX
-
TYBS602FOutput module 2x 6A /230V~, flush mounted, KNX
-
TYBS692FOutput module 2x 6A /230V~, 2 inputs, flush mounted, KNX
-
TYBS702ABinary input 2 fold, flush mounted, KNX
-
TYBS704ABinary input 4 fold, flush mounted, KNX
-
TYBS794ABinary input 4 fold + LED output 4 fold, flush mounted, KNX
-
TYAS604DOutput module 4-fold 16a c-load adapted
-
TYAS606DOutput module 6-fold 16a c-load adapted
-
TYAS610DOutput module 10-fold 16a c-load adapted
-
TYAS624COutput device for 4 shutters or blinds 230V~
-
TYAS624DOutput device for 4 shutters / blinds 24V DC
Technical properties
Capacity
-
Number of modules4
Connectivity
-
With bus system KNX radioNo
-
Type of connectionquickconnect
Electric current
-
Output current320 mA
Voltage
-
Operating voltage230 - 230 V
-
Output voltage28 - 32 V
Connection
-
Cross-section flexible conductor0.75 - 2.5 mm²
-
Cross-section rigid conductor0.75 - 2.5 mm²
Use conditions
-
Operating temperature-5 - 45 °C
Frequency
-
Frequency50 - 60 Hz
Texts
-
FuseWith electronic short-circuit and overload protection
-
JunctionProtected earth conductor must be connected
-
Type of connectionWith quickconnect plug-in terminals
Power supply
-
Supply voltage230 V AC
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

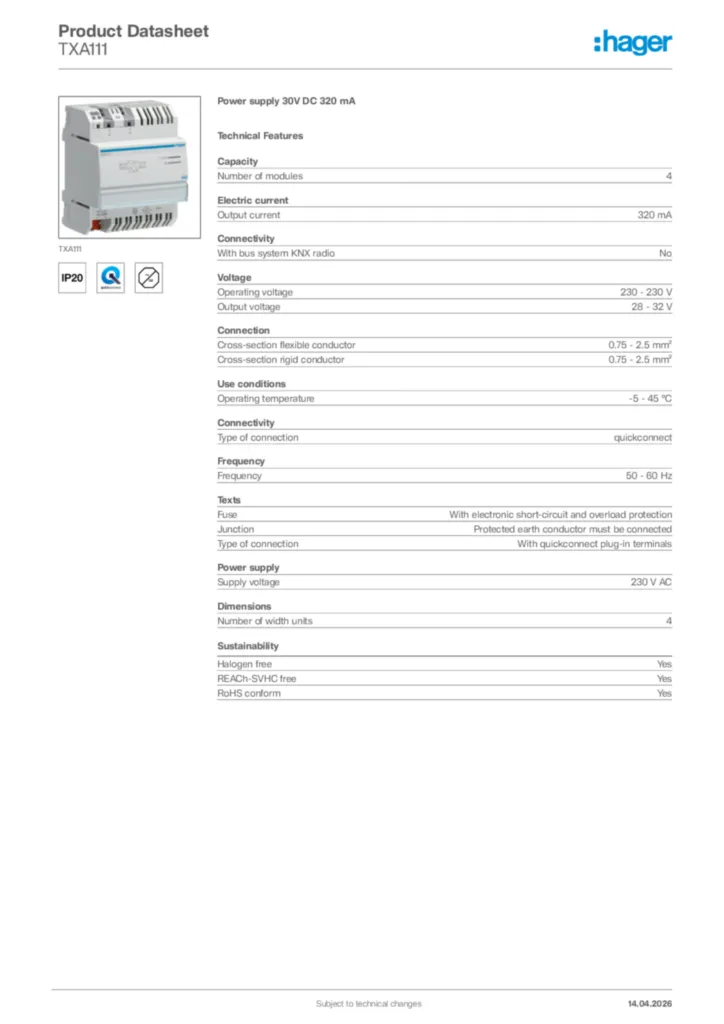

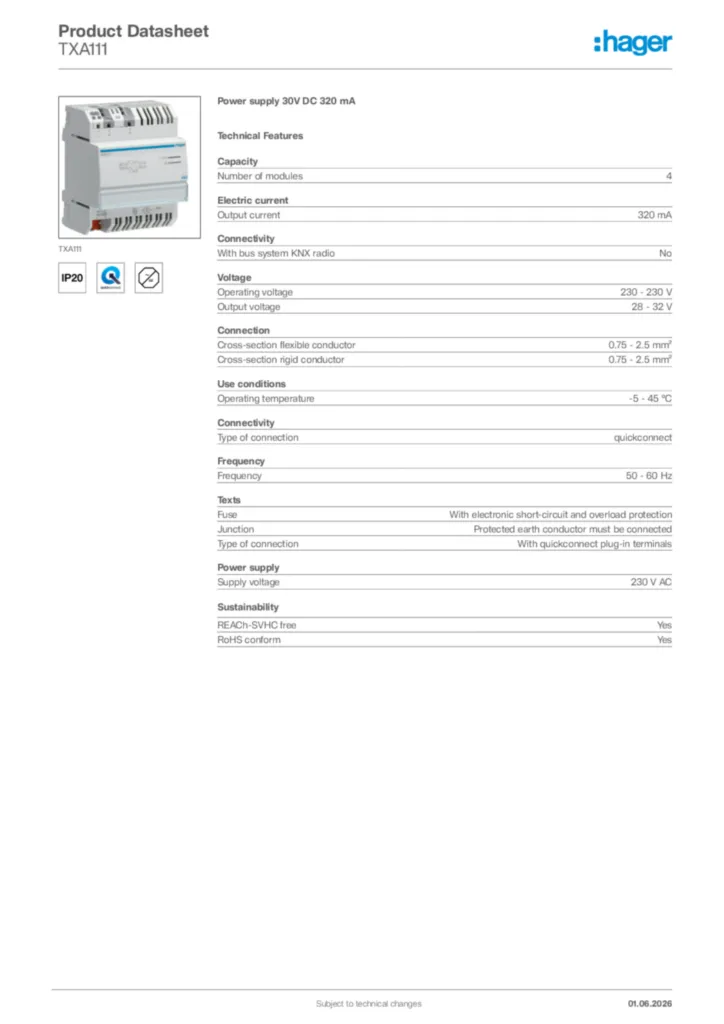

Product datasheet
Hager Product data sheet TXA111
Power supply 30V DC 320 mA
PDF
