  • Home
  • Catalog
  • Building auto­ma­tion
  • Domovea visu­al­iz­a­tion gateway
  • Visu­al­isa­tion Domovea
  • TJAS471
  • Building auto­ma­tion

domovea plus TJAS471

EAN
3250610013045
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

domovea plus

TJAS471

  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Technical properties

Equip­ment
  • Web server
    Yes
  • Number of chan­nels
    1
Voltage
  • Oper­ating voltage
    195 - 254 V
  • Oper­ating voltage over bus
    21 - 32 V
  • Type voltage supply
    AC
Connectivity
  • Type of inter­face bus system/­media gateway
    Multiple inter­face
Settings
  • Supported config­ur­a­tion mode
    easy, ETS
Safety
  • Ingress Protec­tion (IP) class
    IP20
Use condi­tions
  • Oper­ating temper­ature
    -5 - 45 °C
Controls and indic­ators
  • With LED indic­a­tion
    Yes
Dimen­sions
  • Width
    106 mm
  • Depth
    65 mm
  • Number of width units
    6
Connec­tion
  • Connect­or/plug type Bus system
    Bus connec­tion terminal
  • Connect­or/plug type
    quick­con­nect
Texts
  • Encoding
    Manage­ment of 4 config­ur­able user profiles
  • Connectors jacks
    With 2 USB sockets type A
  • Type of connec­tion
    With quick­con­nect plug-in terminals

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

Certifications and documents

PEP document en-GB 2024-03-12
PDF
438,33 kB
Hager REACH declaration TJAS471
PDF
Hager RoHS report TJAS471
PDF

Downloads

  • Image TJAS471 | Hager Africa

    Product Image TJAS471

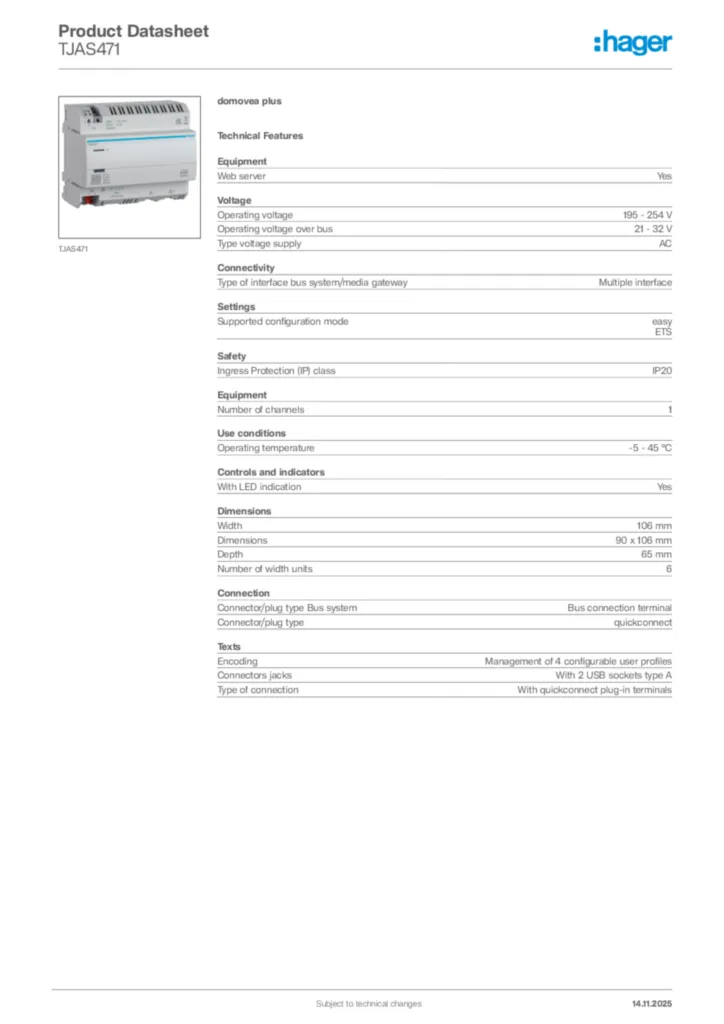

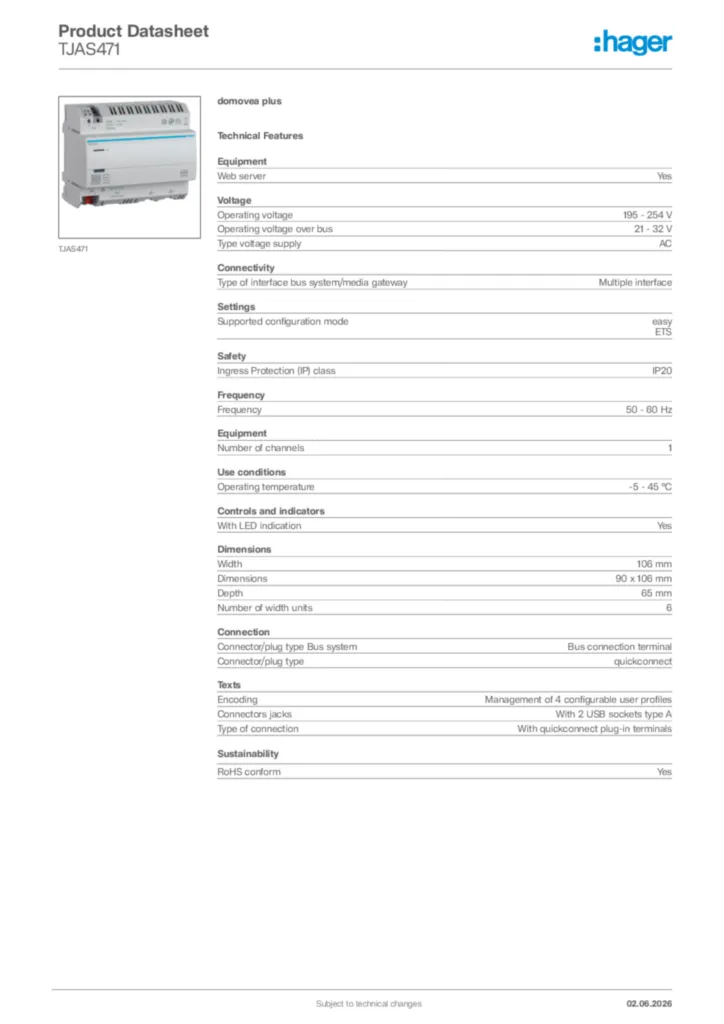

  • Product datasheet

    Image undefined | Hager Africa

    undefined

    PDF

  • Instruction manual

    Image Instruction manual de-AT, de-DE, de-CH 2025-04-25 | Hager Africa

    Instruction manual de-AT, de-DE, de-CH 2025-04-25

    PDF
    25,62 MB

  • Installation manual

    Image Installation manual en-GB 2025-04-09 | Hager Africa

    Installation manual en-GB 2025-04-09

    PDF
    23,70 MB
    Image Installation manual fr-FR 2025-04-01 | Hager Africa

    Installation manual fr-FR 2025-04-01

    PDF
    25,43 MB

  • Manual

    Image Manual en-GB, de-DE, fr-FR, it-IT, nl-NL, sv-SE 2024-02-28 | Hager Africa

    Manual en-GB, de-DE, fr-FR, it-IT, nl-NL, sv-SE 2024-02-28

    PDF
    4,79 MB
    Image Manual en-GB, en-US, en-AU, en-NZ 2025-09-18 | Hager Africa

    Manual en-GB, en-US, en-AU, en-NZ 2025-09-18

    PDF
    6,84 MB

  • Tool

    Image Hager Pilot MacOS | Hager Africa

    Hager Pilot MacOS

    Hager Pilot MacOS 2.2.1

    DMG
    95,45 MB
    Image Hager Pilot Windows | Hager Africa

    Hager Pilot Windows

    Hager Pilot Windows 2.2.1

    EXE
    152,91 MB
    Image Server Software (TJAS471, TJAS671) | Hager Africa

    Server Software (TJAS471, TJAS671)

    Server Software 8.0.11

    ZIP
    245,85 MB
    Image domovea Client Android | Hager Africa

    domovea Client Android

    domovea Client Android 3.14.4

    APK
    150,27 MB
    Image domovea Client MacOS | Hager Africa

    domovea Client MacOS

    domovea Client MacOS 3.14.4

    DMG
    178,85 MB
    Image domovea Client Windows | Hager Africa

    domovea Client Windows

    domovea Client Windows 3.14.4

    EXE
    278,94 MB

  • KNX product database

    Image ETS product database (Dummy application) | Hager Africa

    ETS product database (Dummy application)

    KNX product database International 2024-03-11

    KNXPROD
    90,49 kB
    Image ETS product database for TJAS471 | Hager Africa

    ETS product database for TJAS471

    KNX product database International 2025-03-21

    KNXPROD
    93,23 kB

  • Declaration of conformity

    Image EU Declaration of Conformity | Hager Africa

    EU Declaration of Conformity

    Declaration of conformity en-GB 2025-08-21

    PDF
    251,60 kB
    Image UKCA Declaration of Conformity | Hager Africa

    UKCA Declaration of Conformity

    Declaration of conformity en-GB 2025-08-21

    PDF
    250,72 kB
