Output module 2x 6A /230V~, 2 inputs, flush mounted, KNX TYBS692F
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Interface for bus system 1 product.page.accessories.products-available -
System interface/media gateway for bus system 3 product.page.accessories.products-available -
Power supply for bus system 3 product.page.accessories.products-available -
Connection/branching terminal for bus system 1 product.page.accessories.products-available -
Area/line coupler for bus system 1 product.page.accessories.products-available
product.page.accessories.title-modal
Technical characteristics
Connectivity
-
With bus system KNXYes
-
With bus system KNX radioNo
Settings
-
Supported configuration modeETS, easy
Dimensions
-
Height44 mm
-
Width43 mm
-
Depth22 mm
-
Built-in depth40 mm
Installation, mounting
-
Mounting onFlush mounting
Architecture
-
Bus systemKNX Secure
Materials
-
ColourLight grey
Equipment
-
Radio frequency bidirectionalNo
-
With switch for manual switchYes
Electric current
-
Max. switching current6 A
-
Rated current IN6 A
-
Bus current consumption while idle5 mA
Frequency
-
Frequency50 - 60 Hz
Power
-
Output power500 W
-
230 V incandescent and halogen lamp500 W
-
Power incandescent lamp500 - 500 W
Voltage
-
Rated operational voltage Ue230 - 230 V
-
System supply voltage30 V DC Via bus
-
Operating voltage over bus21 - 32 V
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-5 - 45 °C
Connection
-
Cross-section rigid conductor0.75 - 2.5 mm²
-
Cross-section flexible conductor0.75 - 2.5 mm²
Texts
-
FunctionWith safety functions e.g. for wind, rain, alarm, Binary input functions: Switching, dimming, blind, value transmitter, scene, priority, timer operation, subplate, With positioning function for blind and lamella position, With sun shade function
-
Type of connectionWith screw terminals
Data act compliance
-
Is generating dataYes
-
Data typesBasic information, Binary input, General diagnostics, On/Off status, Scenes, Software diagnostics, Window covering
-
Data formatsKNX (TP)
-
Estimated daily data volume10 KB - 100 KB
-
Real time data generationYes
-
Data stored on deviceNo
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

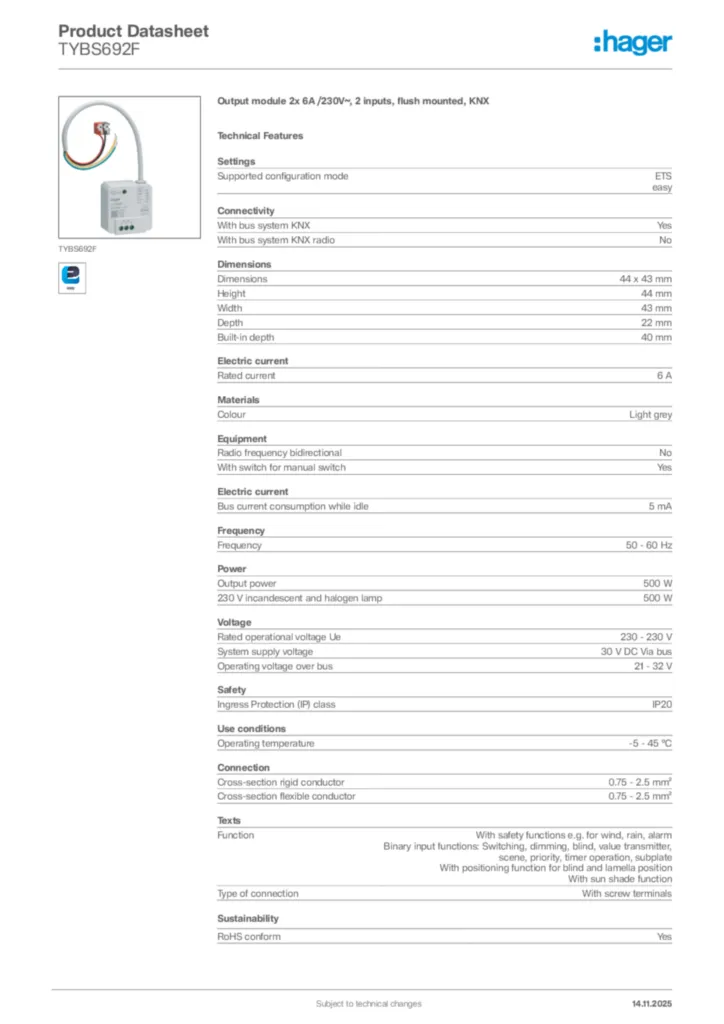

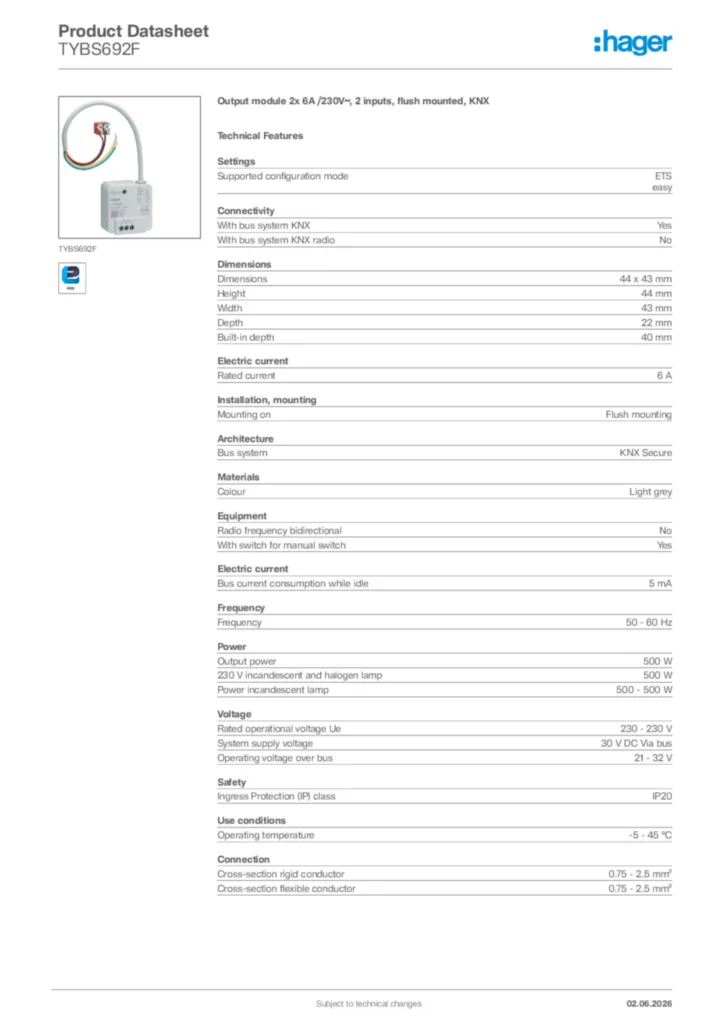

Hager Product data sheet TYBS692F
