The Hager flush-mounted 3A output for shutters/blinds with 2 inputs enables reliable motor control in KNX Radio installations. Compact (40 mm depth), it fits behind inserts and offers 230 V AC, up to 690 W load, bidirectional 433 MHz communication and manual override. IP20, -10…50°C. Screw lift terminals for 0.5-2.5 mm² simplify wiring; factory reset available. Ideal for retrofit and space-limited boxes.

EAN

3250618502091

VPE

1 piece

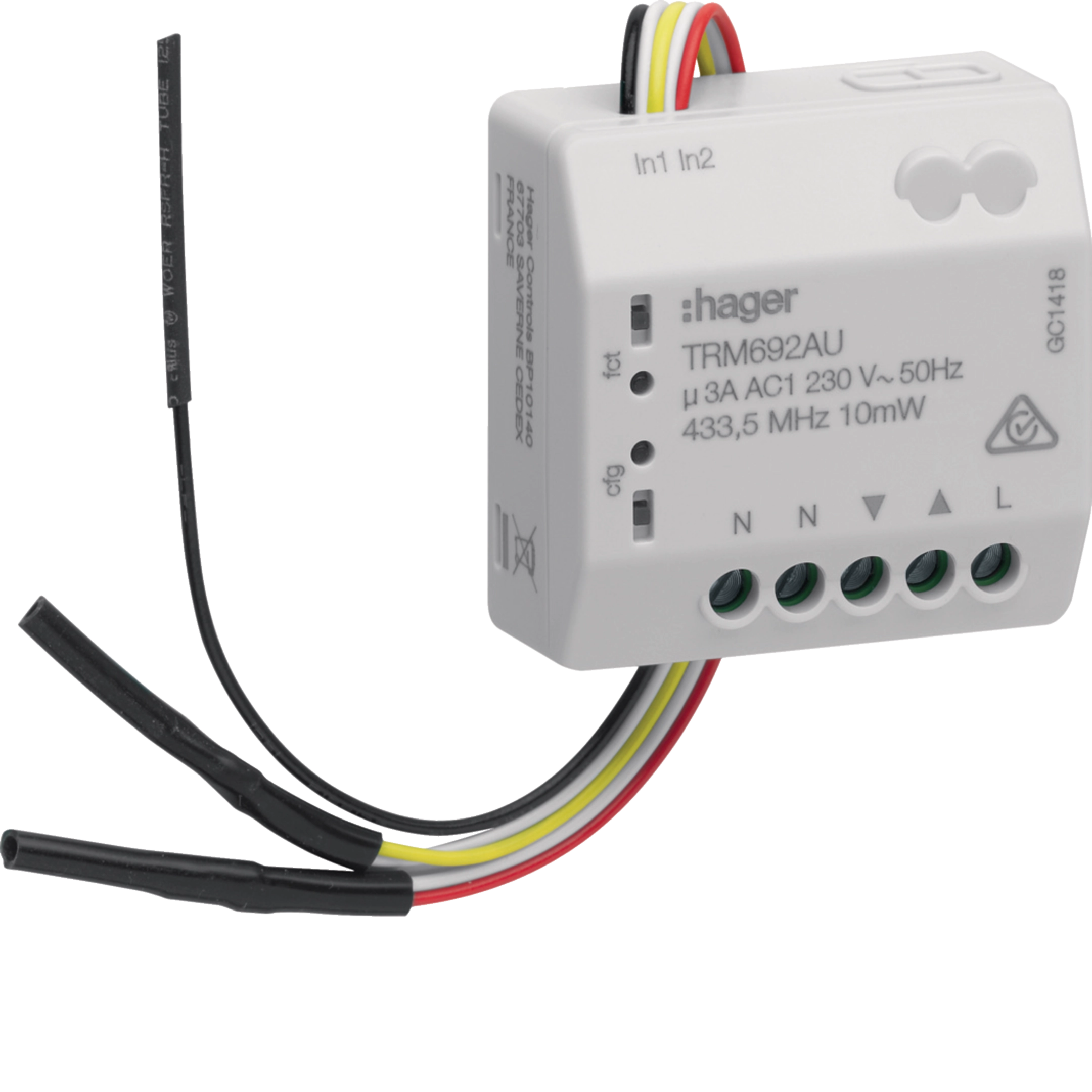

Flush-mounted KNX Radio actuator 3A 230V bidirectional 2 inputs mains powered TRM692AU

Technical characteristics
catalog.pageproduct.title_sustainability.h2

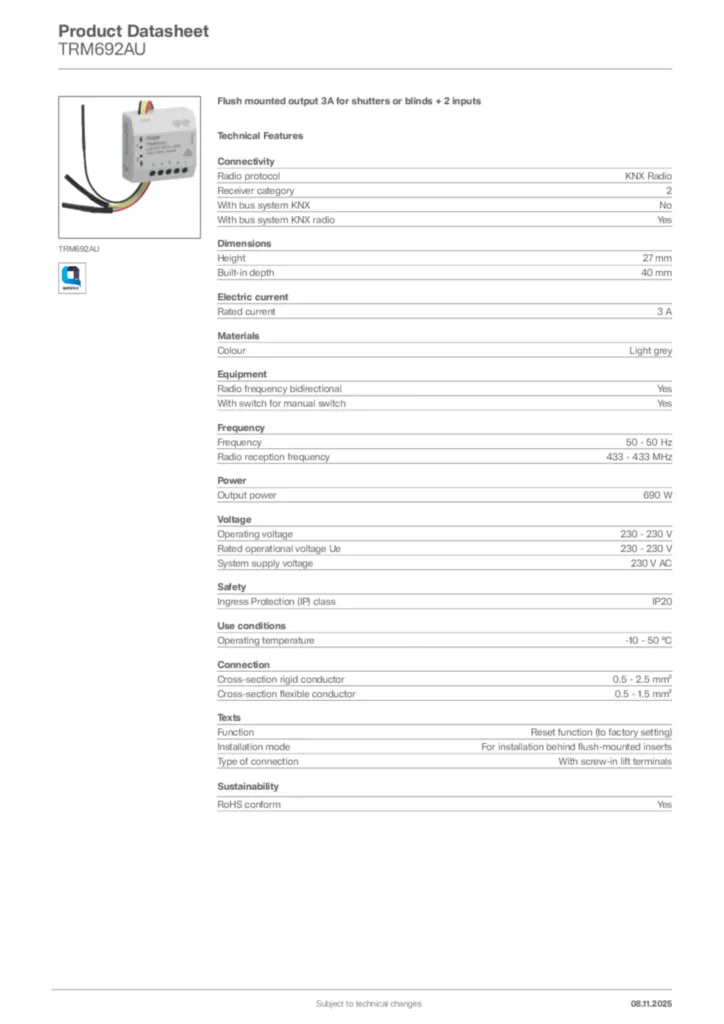

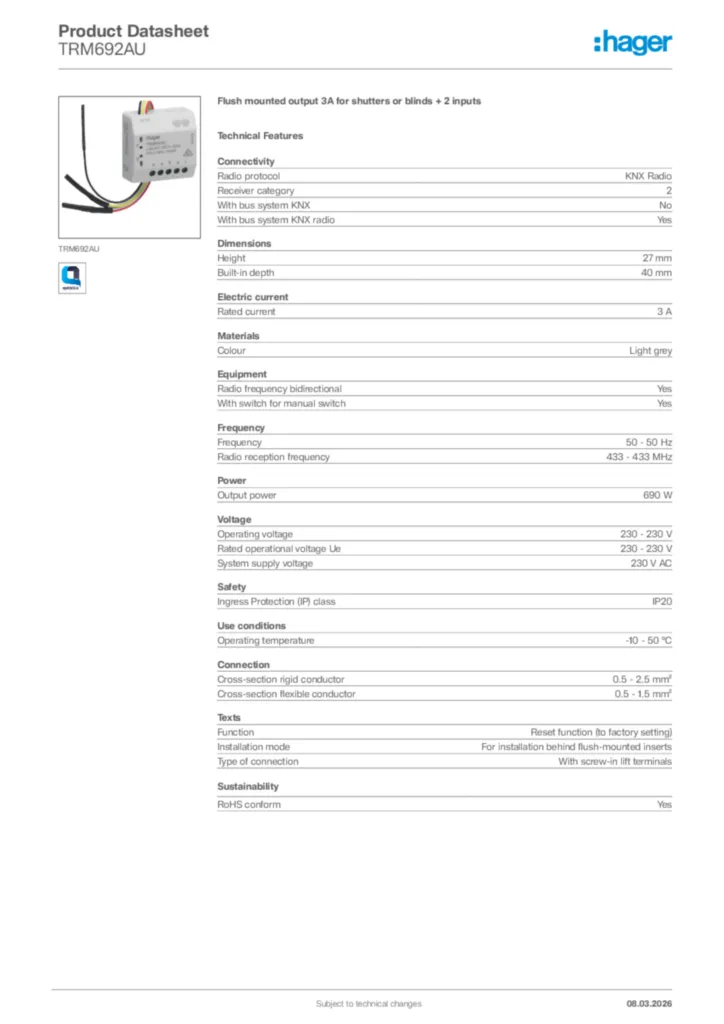

Documentations
More products

Technical characteristics

Radio protocol

KNX Radio
Receiver category

2
With bus system KNX

No
With bus system KNX radio

Yes

Height

27 mm
Built-in depth

40 mm

Mounting on

Flush mounting

Colour

Light grey

Radio frequency bidirectional

Yes
With switch for manual switch

Yes

Max. switching current

3 A
Rated current IN

3 A

Frequency

50 - 50 Hz
Radio reception frequency

433 - 433 MHz

Output power

690 W

Operating voltage

230 - 230 V
Rated operational voltage Ue

230 - 230 V
System supply voltage

230 V AC

Ingress Protection (IP) class

IP20

Operating temperature

-10 - 50 °C

Cross-section rigid conductor

0.5 - 2.5 mm²
Cross-section flexible conductor

0.5 - 1.5 mm²

Function

Reset function (to factory setting)
Installation mode

For installation behind flush-mounted inserts
Type of connection

With screw-in lift terminals

catalog.pageproduct.title_sustainability.h2

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
