    Output module 10-fold 16a c-load adapted TYAS610D

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Output module 10-fold 16a c-load adapted

    TYAS610D

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

  • See more (12)
    • Surge protec­tion device for data network­s/MCR tech­no­logy 1 products available
    • Accessor­ies/s­pare parts for bus system 4 products available
    • Inter­face for bus system 1 products available
    • System inter­face/­media gateway for bus system 2 products available
    • Power supply for bus system 2 products available
    • Connec­tion/branching terminal for bus system 1 products available

    Complete your system

    • Surge protec­tion device for data network­s/MCR tech­no­logy
    • Accessor­ies/s­pare parts for bus system
    • Inter­face for bus system
    • System inter­face/­media gateway for bus system
    • Power supply for bus system
    • Connec­tion/branching terminal for bus system
    • Area/line coupler for bus system
    • TG029

      Surge protection device, KNX
      0.00 €  / *
    • TG019

      Bus cable length 500m green, KNX
      0.00 €  / *
    • TG018

      Bus cable length 100m green, KNX
      0.00 €  / *
    • TGZ181

      Bus cable, 100m, B2cas1d1a1, green
      0.00 €  / *
    • TGZ185

      Bus cable, 500m, B2cas1d1a1, green
      0.00 €  / *
    • TYFS122

      Modular USB KNX Secure Interface
      0.00 €  / *
    • TYFS120

      KNX/IP Secure interface, 1 module
      0.00 €  / *
    • TYFS121

      Router KNX/IP Secure, 1 module
      0.00 €  / *
    • TXA112

      Power supply 30V DC 640 mA
      0.00 €  / *
    • TXA114

      Power supply 1x 30V DC KNX + 1x 24V DC
      0.00 €  / *
    • TG008

      Connectors for twisted pair termination red/black
      0.00 €  / *
    • TYFS130

      Line Coupler, KNX Secure
      0.00 €  / *

    Technical properties

    Connectivity
    • With bus system KNX
      Yes
    • With bus system KNX radio
      No
    Settings
    • Supported config­ur­a­tion mode
      ETS, easy
    Dimen­sions
    • Height
      90 mm
    • Depth
      65 mm
    • Number of width units
      6
    Mater­ials
    • Colour
      Light grey
    Equip­ment
    • Radio frequency bidirec­tional
      No
    • With switch for manual switch
      Yes
    Elec­tric current
    • Rated current
      16 A
    • Bus current consump­tion while idle
      8 mA
    Frequency
    • Frequency
      50 - 60 Hz
    Power
    • Power incan­des­cent lamp 230 V
      2300 - 2300 W
    • Output power
      2300 W
    • 230 V incan­des­cent and halogen lamp
      2300 W
    Voltage
    • Rated oper­a­tional voltage Ue
      230 - 230 V
    • System supply voltage
      30 V DC Via bus
    • Oper­ating voltage over bus
      21 - 32 V
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 45 °C
    Connec­tion
    • Cross-sec­tion rigid conductor
      0.75 - 2.5 mm²
    • Cross-sec­tion flex­ible conductor
      0.75 - 2.5 mm²

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Heating actuator 6 channels KNX, with regulation, 24/230V
    PDF
    266,23 kB
    REACH declaration TYAS610D
    PDF
    RoHS report TYAS610D
    PDF

    Downloads

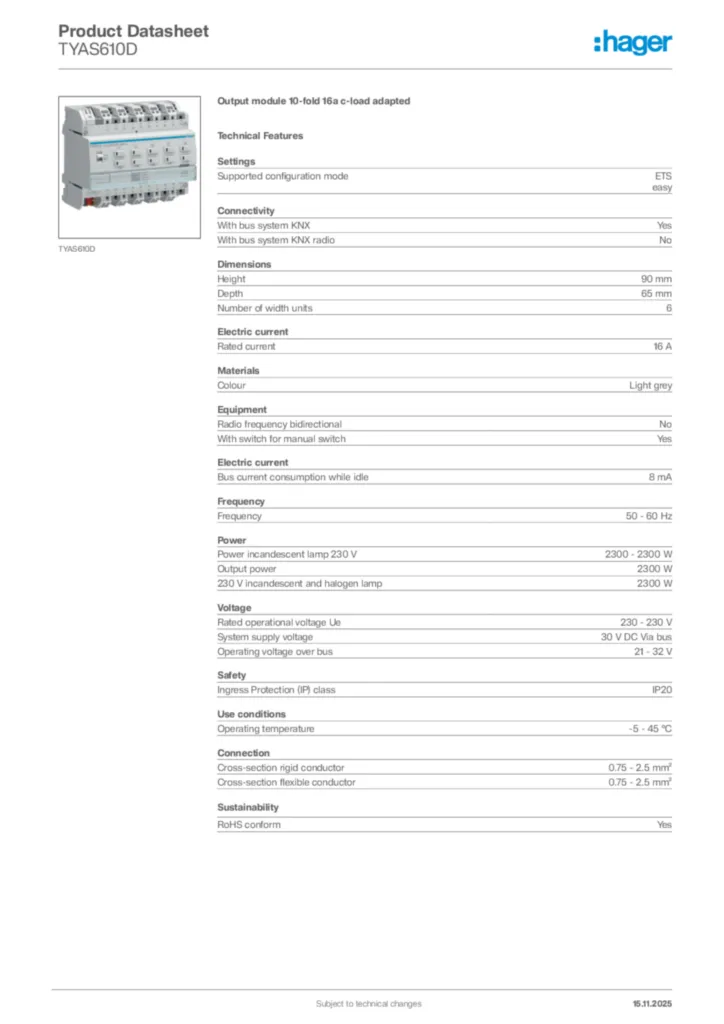

    • Image TYAS610D | Hager Africa

      Product Image TYAS610D

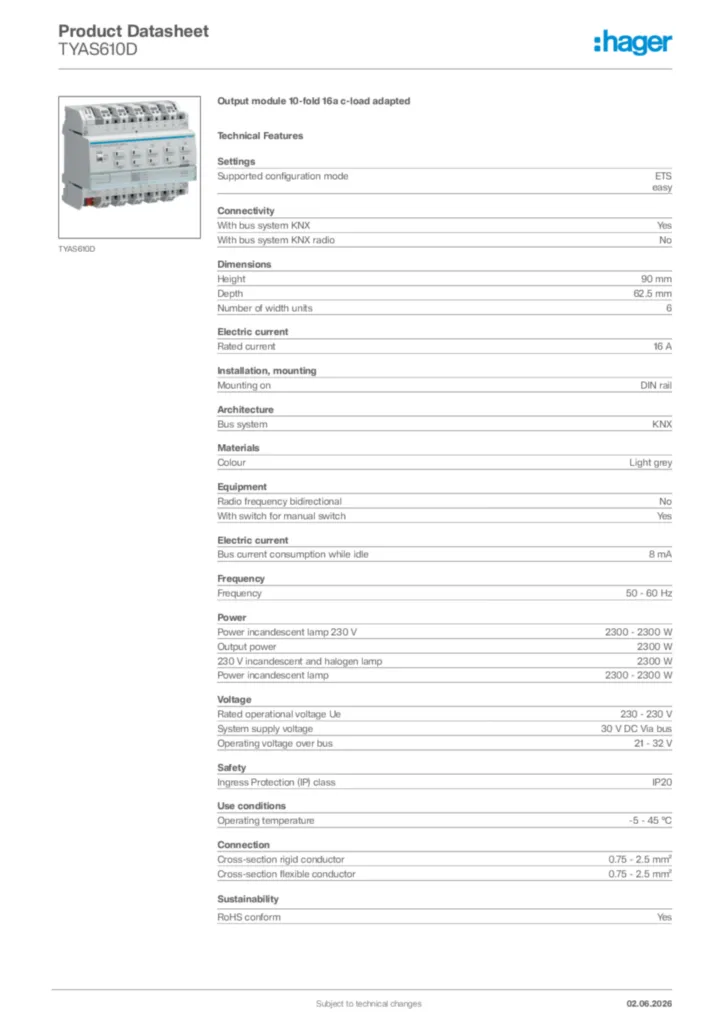

    • Product datasheet

      Image Hager Product data sheet TYAS610D | Hager Africa

      Hager Product data sheet TYAS610D

      Output module 10-fold 16a c-load adapted

      PDF

    • Manual

      Image Manual en-AU, en-NZ, en-GB, en-US 2025-02-21 | Hager Africa

      Manual en-AU, en-NZ, en-GB, en-US 2025-02-21

      PDF
      1,54 MB

    • KNX product database

      Image KNX Product database TYAS610D | Hager Africa

      KNX Product database TYAS610D

      KNX product database International 2025-11-13

      KNXPROD
      927,03 kB

    • Application Guide

      Image Application Guide en-GB 2023-03-21 | Hager Africa

      Application Guide en-GB 2023-03-21

      PDF
      11,10 MB

    • Declaration of conformity

      Image EU Declaration of Conformity | Hager Africa

      EU Declaration of Conformity

      Declaration of conformity en-GB 2025-05-20

      PDF
      265,92 kB
      Image UKCA Declaration of conformity | Hager Africa

      UKCA Declaration of conformity

      Declaration of conformity en-GB 2025-05-20

      PDF
      264,12 kB
