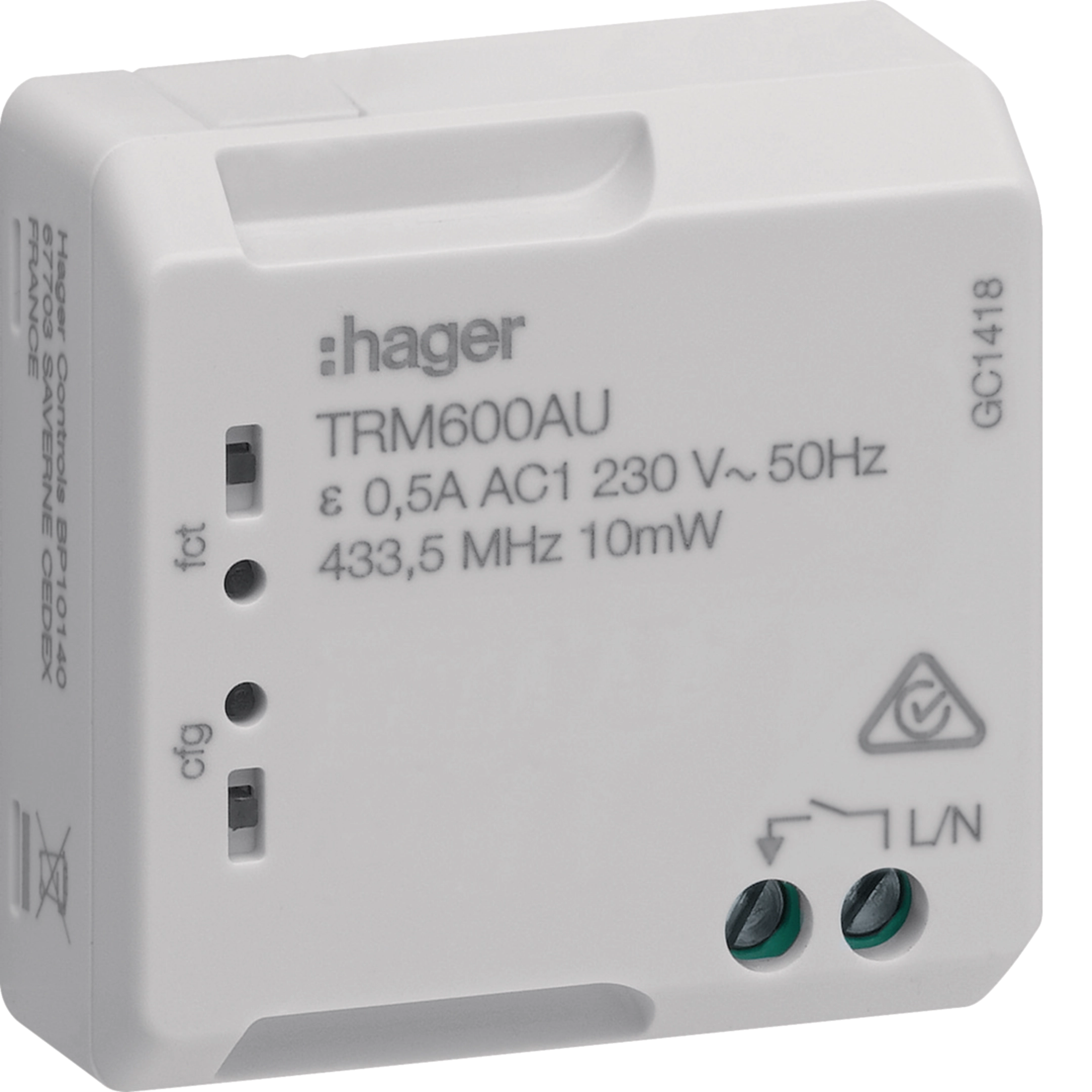

The Hager Additional Control for latching relays or timers provides bidirectional KNX Radio control (receiver cat. 2) for retrofit, space-saving installs behind flush-mounted inserts. Operates at 230 V AC, 50-60 Hz, 0.5 A, up to 115 W, radio 433 MHz. Features manual override, pulse-only output, factory reset. IP20, -15…45 °C. Screw lift terminals 0.5-2.5 mm² rigid, 0.5-1.5 mm² flexible. 18×40×18 mm, light grey.

EAN

3250618502060

Packaging

1 Piece

360° flush movement/presence detector NO, 230V, 5-1000 lx, 5s-15min delay TRM600AU

Technical properties
Environmental value
Documentations
More products

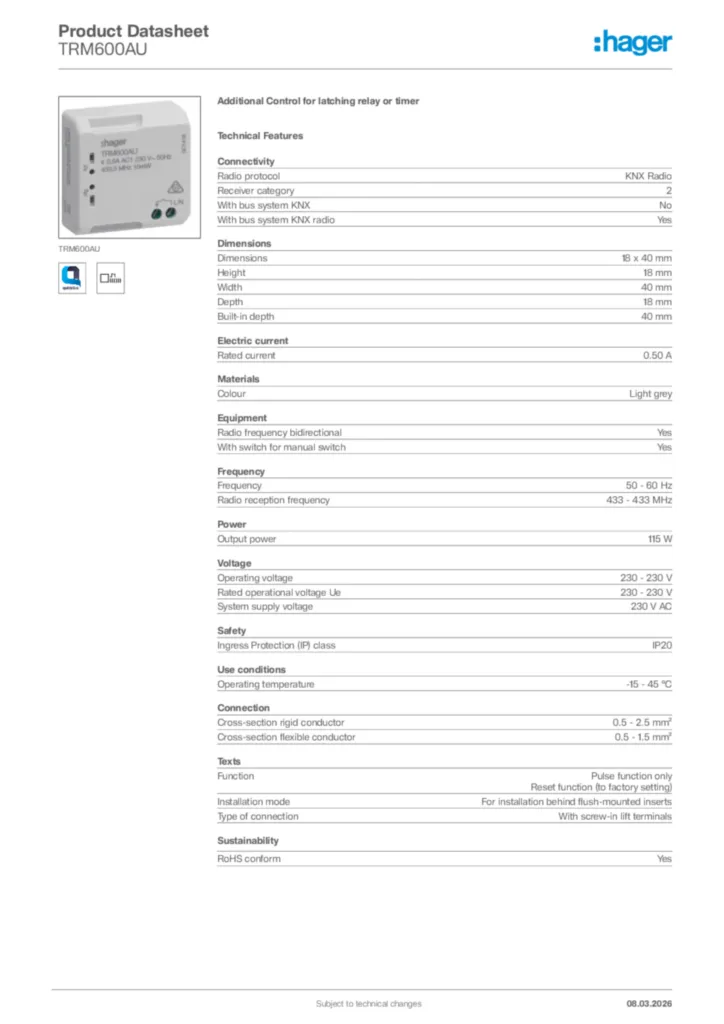

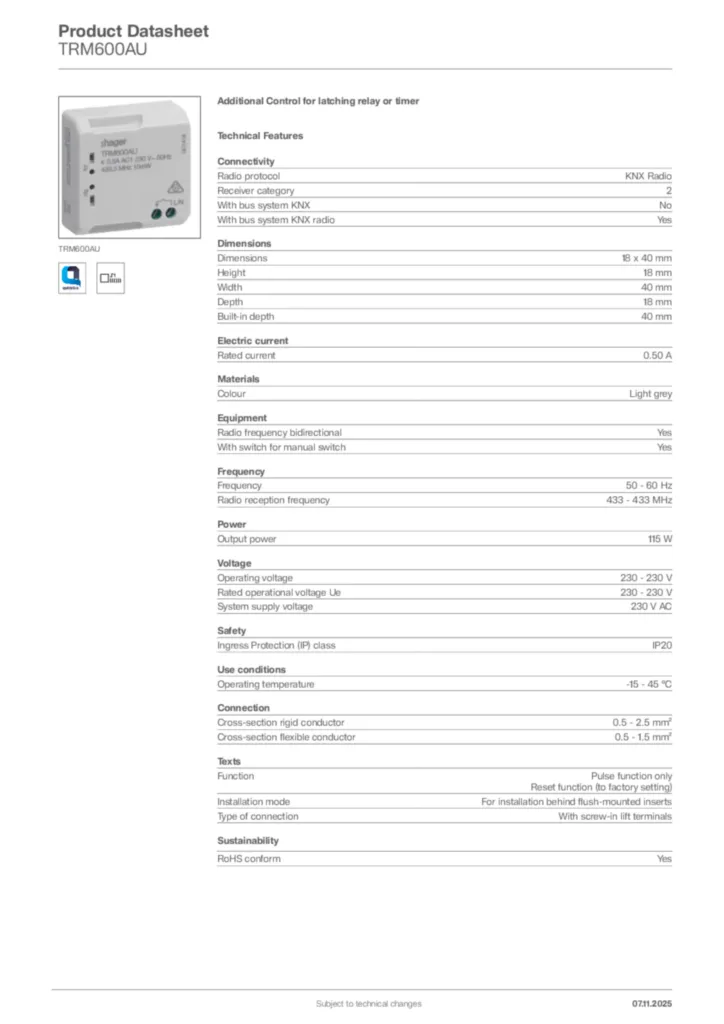

Download the data sheet

Technical properties

Radio protocol

KNX Radio
Receiver category

2
With bus system KNX

No
With bus system KNX radio

Yes

Height

18 mm
Width

40 mm
Depth

18 mm
Built-in depth

40 mm

Mounting on

Flush mounting

Colour

Light grey

Radio frequency bidirectional

Yes
With switch for manual switch

Yes

Max. switching current

5 A
Rated current IN

0.50 A

Frequency

50 - 60 Hz
Radio reception frequency

433 - 433 MHz

Output power

115 W

Operating voltage

230 - 230 V
Rated operational voltage Ue

230 - 230 V
System supply voltage

230 V AC

Ingress Protection (IP) class

IP20

Operating temperature

-15 - 45 °C

Cross-section rigid conductor

0.5 - 2.5 mm²
Cross-section flexible conductor

0.5 - 1.5 mm²

Function

Pulse function only, Reset function (to factory setting)
Installation mode

For installation behind flush-mounted inserts
Type of connection

With screw-in lift terminals

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
