Output module 2x 6A /230V~, flush mounted, KNX TYBS602F

EAN
3250610050354
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Output module 2x 6A /230V~, flush mounted, KNX

TYBS602F

  • Technical properties
  • Environmental value
  • Documentations
  • More products

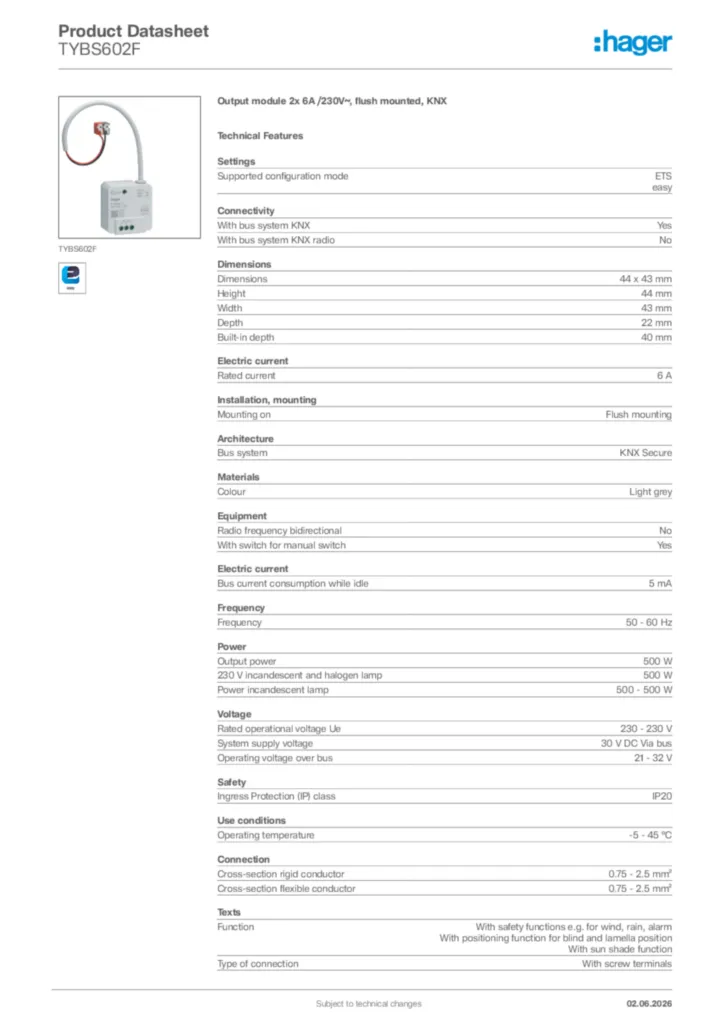

Download the data sheet

Technical properties

Connectivity
  • With bus system KNX
    Yes
  • With bus system KNX radio
    No
Settings
  • Supported config­ur­a­tion mode
    ETS, easy
Dimen­sions
  • Height
    44 mm
  • Width
    43 mm
  • Depth
    22 mm
  • Built-in depth
    40 mm
Mater­ials
  • Colour
    Light grey
Equip­ment
  • Radio frequency bidirec­tional
    No
  • With switch for manual switch
    Yes
Elec­tric current
  • Rated current
    6 A
  • Bus current consump­tion while idle
    5 mA
Frequency
  • Frequency
    50 - 60 Hz
Power
  • Output power
    500 W
  • 230 V incan­des­cent and halogen lamp
    500 W
Voltage
  • Rated oper­a­tional voltage Ue
    230 - 230 V
  • System supply voltage
    30 V DC Via bus
  • Oper­ating voltage over bus
    21 - 32 V
Safety
  • Ingress Protec­tion (IP) class
    IP20
Use condi­tions
  • Oper­ating temper­ature
    -5 - 45 °C
Connec­tion
  • Cross-sec­tion rigid conductor
    0.75 - 2.5 mm²
  • Cross-sec­tion flex­ible conductor
    0.75 - 2.5 mm²
Texts
  • Func­tion
    With safety func­tions e.g. for wind, rain, alarm, With posi­tioning func­tion for blind and lamella posi­tion, With sun shade func­tion
  • Type of connec­tion
    With screw terminals

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

PEP document en-GB 2024-04-03
PDF
421,53 kB
Hager REACH declaration TYBS602F
PDF
Hager RoHS report TYBS602F
PDF

Downloads

  • Image TYBS602F | Hager Africa

    Product Image TYBS602F

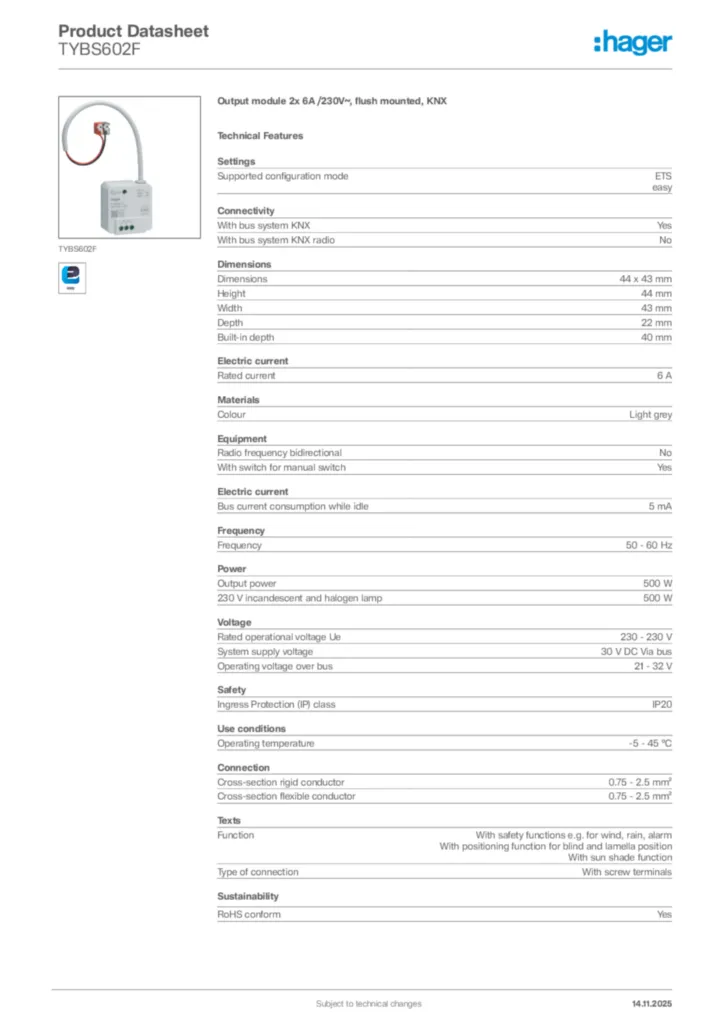

  • Product datasheet

    Image undefined | Hager Africa

    undefined

    PDF

  • Instruction manual

    Image Instruction manual de-AT, de-DE, de-CH 2025-04-01 | Hager Africa

    Instruction manual de-AT, de-DE, de-CH 2025-04-01

    PDF
    789,81 kB
    Image Instruction manual en-GB, en-US, en-AU, en-NZ 2025-04-28 | Hager Africa

    Instruction manual en-GB, en-US, en-AU, en-NZ 2025-04-28

    PDF
    789,46 kB

  • Installation manual

    Image Installation manual en-GB, de-DE, fr-FR, it-IT, nl-NL, es-ES, pt-PT, zh-CN 2024-01-15 | Hager Africa

    Installation manual en-GB, de-DE, fr-FR, it-IT, nl-NL, es-ES, pt-PT, zh-CN 2024-01-15

    PDF
    4,89 MB

  • Manual

    Image Manual en-AU, en-NZ, en-GB, en-US 2025-02-21 | Hager Africa

    Manual en-AU, en-NZ, en-GB, en-US 2025-02-21

    PDF
    1,54 MB

  • KNX product database

    Image KNX product database International 2024-05-07 | Hager Africa

    KNX product database International 2024-05-07

    KNXPROD
    304,83 kB

  • Application Guide

    Image Application Guide en-GB 2023-03-21 | Hager Africa

    Application Guide en-GB 2023-03-21

    PDF
    11,10 MB
    Image Application Guide en-GB 2024-06-27 | Hager Africa

    Application Guide en-GB 2024-06-27

    PDF
    1,86 MB

  • Declaration of conformity

    Image EU Declaration of Conformity | Hager Africa

    EU Declaration of Conformity

    Declaration of conformity en-GB, fr-FR 2024-04-04

    PDF
    363,61 kB
    Image UKCA Declaration of Conformity | Hager Africa

    UKCA Declaration of Conformity

    Declaration of conformity en-GB 2024-04-04

    PDF
    270,10 kB
