    Output module 20-fold 16a c-load adapted TYMS620D

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Output module 20-fold 16a c-load adapted

    TYMS620D

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Connectivity
    • With bus system KNX
      Yes
    • With bus system KNX radio
      No
    Settings
    • Supported config­ur­a­tion mode
      ETS, easy
    Dimen­sions
    • Height
      90 mm
    • Depth
      65 mm
    • Built-in depth
      65 mm
    • Number of width units
      10
    Mater­ials
    • Colour
      Light grey
    Equip­ment
    • Radio frequency bidirec­tional
      No
    • With switch for manual switch
      Yes
    Elec­tric current
    • Rated current
      16 A
    • Bus current consump­tion while idle
      3 mA
    Frequency
    • Frequency
      50 - 60 Hz
    Power
    • Power incan­des­cent lamp 230 V
      2300 - 2300 W
    • Output power
      2300 W
    • 230 V incan­des­cent and halogen lamp
      2300 W
    Voltage
    • Rated oper­a­tional voltage Ue
      230 - 230 V
    • System supply voltage
      30 V DC Via bus
    • Oper­ating voltage over bus
      21 - 32 V
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 45 °C
    Connec­tion
    • Cross-sec­tion rigid conductor
      0.5 - 6 mm²
    • Cross-sec­tion flex­ible conductor
      0.5 - 4 mm²
    Texts
    • Func­tion
      With safety func­tions e.g. for wind, rain, alarm, With posi­tioning func­tion for blind and lamella posi­tion, With sun shade func­tion

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Heating actuator 6 channels KNX, with regulation, 24/230V
    PDF
    266,23 kB
    REACH declaration TYMS620D
    PDF
    RoHS report TYMS620D
    PDF

    Downloads

    • Image TYMS620D | Hager Africa

      Product Image TYMS620D

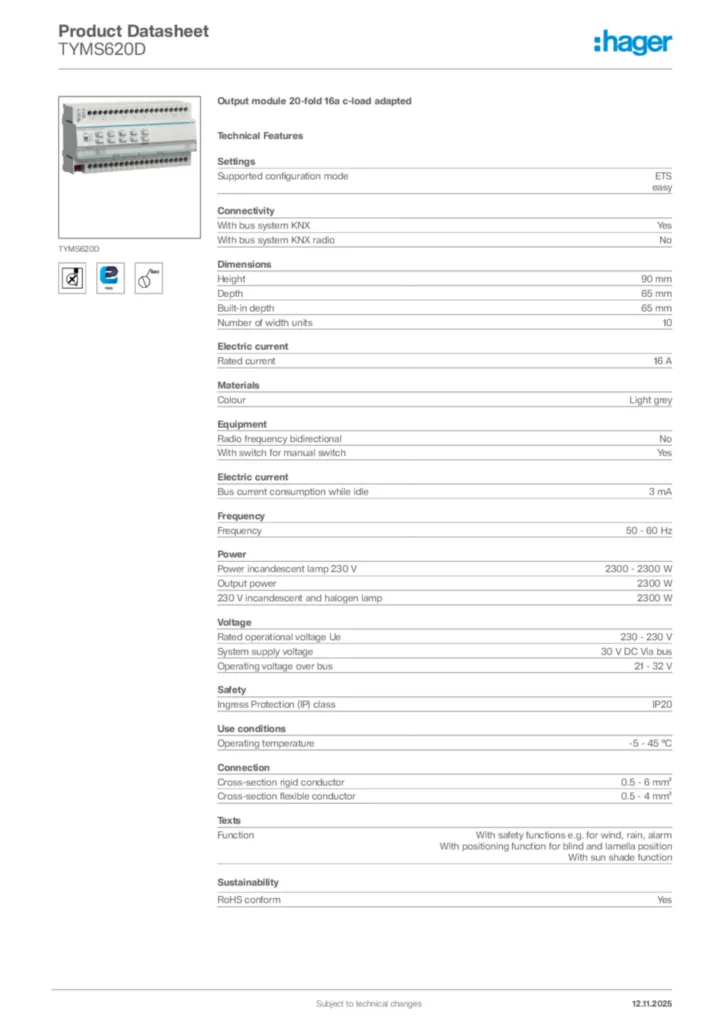

    • Product datasheet

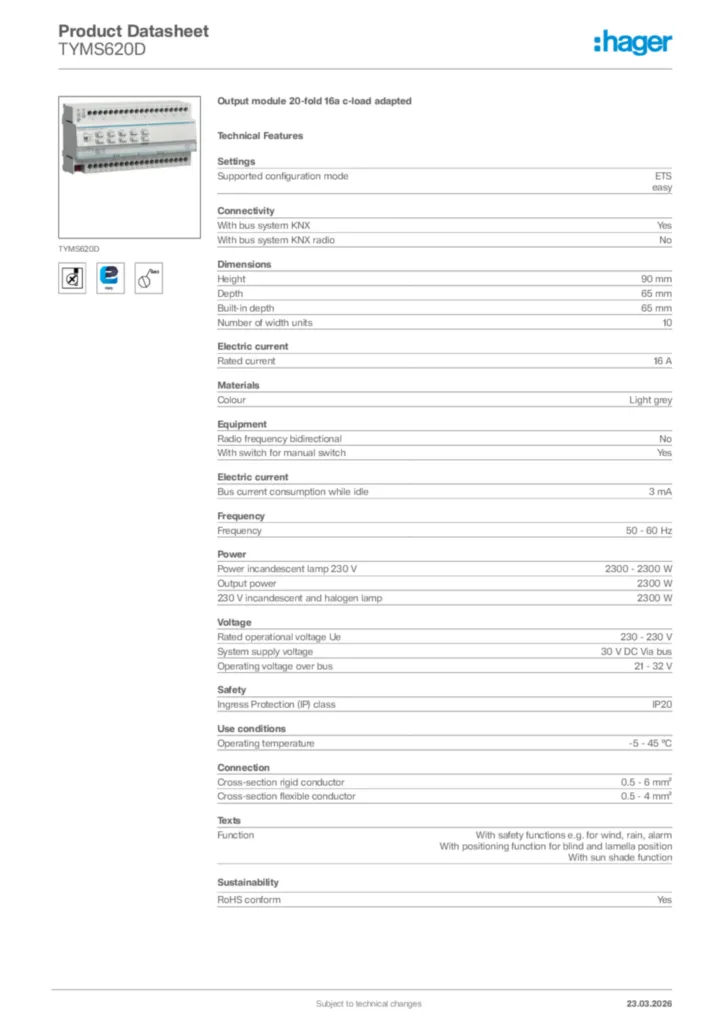

      Image Hager Product data sheet TYMS620D | Hager Africa

      Hager Product data sheet TYMS620D

      Output module 20-fold 16a c-load adapted

      PDF

    • Manual

      Image Manual en-AU, en-NZ, en-GB, en-US 2025-02-21 | Hager Africa

      Manual en-AU, en-NZ, en-GB, en-US 2025-02-21

      PDF
      1,54 MB

    • Application Guide

      Image Application Guide en-GB 2023-03-21 | Hager Africa

      Application Guide en-GB 2023-03-21

      PDF
      3,92 MB
      Image Application Guide en-GB 2023-03-21 | Hager Africa

      Application Guide en-GB 2023-03-21

      PDF
      11,10 MB
      Image Application Guide en-GB 2024-06-27 | Hager Africa

      Application Guide en-GB 2024-06-27

      PDF
      1,86 MB

    • Declaration of conformity

      Image Declaration of conformity International 2023-02-06 | Hager Africa

      Declaration of conformity International 2023-02-06

      PDF
      380,42 kB
      Image Declaration of conformity International 2023-02-06 | Hager Africa

      Declaration of conformity International 2023-02-06

      PDF
      279,66 kB
