The Hager MCB 3P 15kA B-63A 3M miniature circuit breaker protects three-phase circuits against overloads and short circuits. Rated 63 A with B-curve for standard/resistive final circuits, it offers 15 kA Icu (230/400 V), 10 kA Icn (IEC 60898-1), and 7.5 kA Ics. 415 V AC, 50/60 Hz. Compact 3 modules (52.5 mm). Screw/biconnect terminals for 1-35 mm². IP20, -25 to 70 °C. 20,000 mech/4,000 electrical ops.
EAN
3250614645822
VPE
1 piece
Miniature circuit breaker 3P 20A Curve B Icu 25kA 415V AC 3 Modules NQN363
Phase out product: please contact your electrical wholesaler for availability
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Terminal cover 1 product.page.accessories.products-available -
Modular phase busbar 3 product.page.accessories.products-available -
AOB type A-HI 2 product.page.accessories.products-available -
AOB type AC 2 product.page.accessories.products-available -
Protective cap/strip for phase busbar 1 product.page.accessories.products-available
product.page.accessories.title-modal

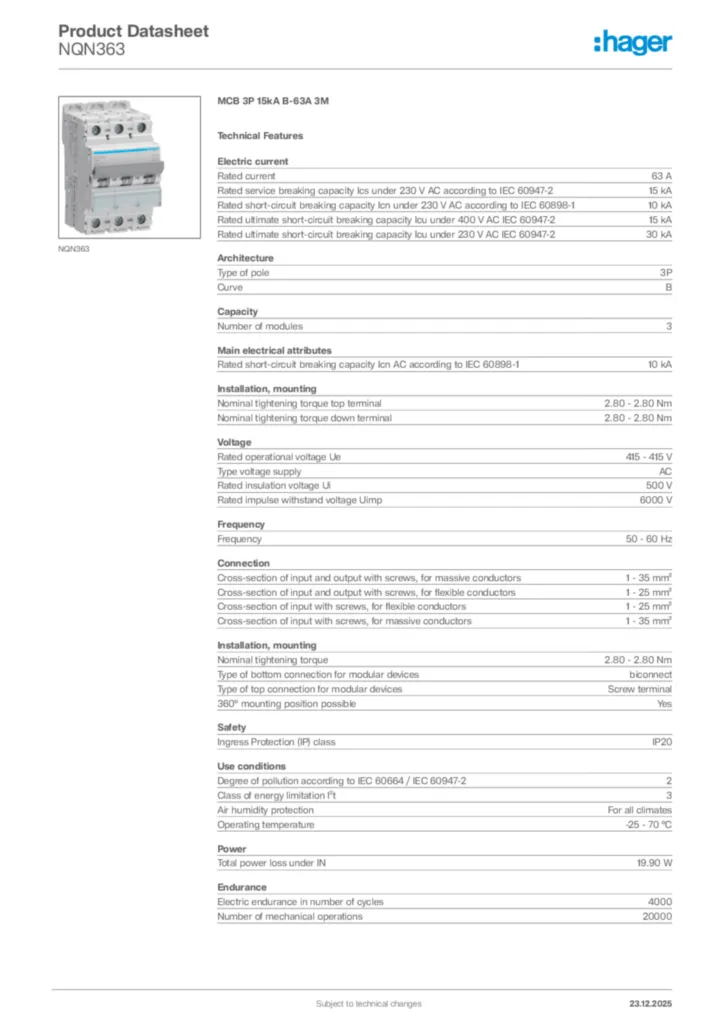

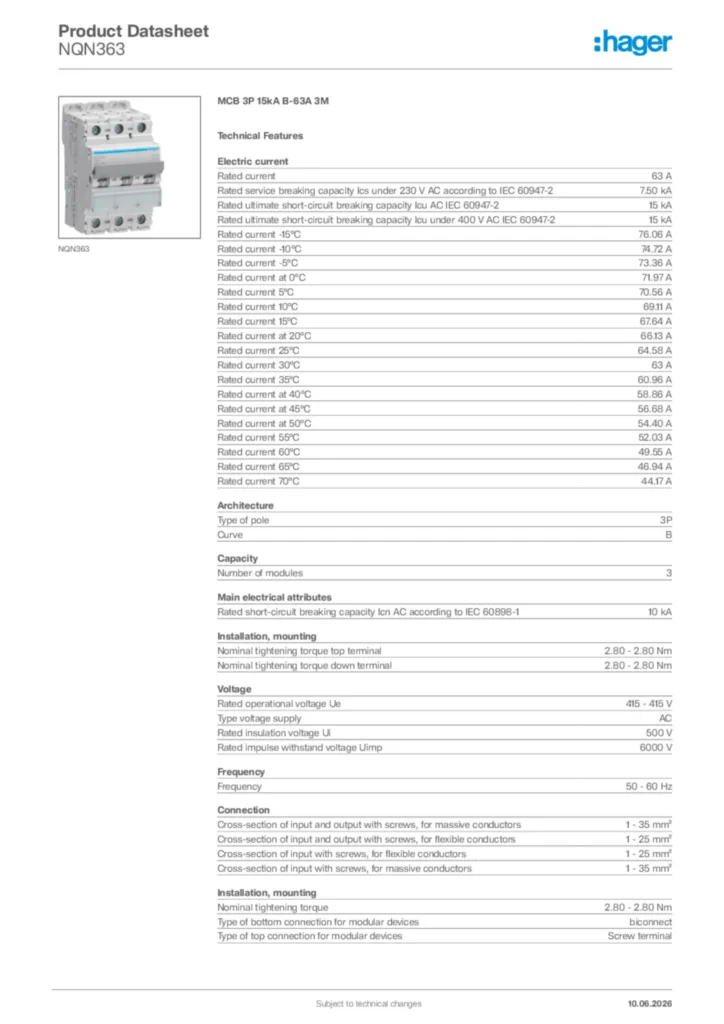

Technical characteristics
Electric current
-
Rated current IN63 A
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-215 kA
-
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-215 kA
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-215 kA
-
Rated current at -15°C76.19 A
-
Rated current at -10°C74.72 A
-
Rated current at -5°C73.26 A
-
Rated current at 0°C71.79 A
-
Rated current at 5°C70.33 A
-
Rated current at 10°C68.86 A
-
Rated current at 15°C67.4 A
-
Rated current at 20°C65.93 A
-
Rated current at 25°C64.47 A
-
Rated current at 30°C63 A
-
Rated current at 35°C60.85 A
-
Rated current at 40°C58.7 A
-
Rated current at 45°C56.55 A
-
Rated current at 50°C54.4 A
-
Rated current at 55°C52.25 A
-
Rated current at 60°C50.1 A
-
Rated current at 65°C47.95 A
-
Rated current at 70°C45.8 A
-
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-230 kA
Architecture
-
Type of pole3P
-
CurveB
Capacity
-
Number of modules3
Installation, mounting
-
Nominal tightening torque top terminal2.80 - 2.80 Nm
-
Nominal tightening torque down terminal2.80 - 2.80 Nm
-
Nominal tightening torque2.80 - 2.80 Nm
-
Type of bottom connection for modular devicesbiconnect
-
Type of top connection for modular devicesScrew terminal
-
360° mounting position possibleYes
Voltage
-
Rated operational voltage Ue230 - 415 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp6000 V
Frequency
-
Frequency50 - 60 Hz
Connection
-
Cross-section of input and output with screws, for massive conductors1 - 35 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for massive conductors1 - 35 mm²
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Degree of pollution according to IEC 60664 / IEC 60947-22
-
Class of energy limitation I²t3
-
Air humidity protectionFor all climates
-
Operating temperature-25 - 70 °C
Power
-
Power dissipation at IN19.90 W
Connectivity
-
Type of connectionScrew terminal
-
Top connection alignment for modular devicesAligned terminal
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height83 mm
-
Width52.50 mm
-
Depth70 mm
Endurance
-
Electric endurance in number of cycles4000
