The Hager insulated 3P fork busbar 63A (12 modules) streamlines three‑phase distribution. Rated 63 A for 230-400 V systems with 4.5 kV impulse withstand, it reliably links MCBs. Its 10 mm² rigid section and fork terminals enable quick, secure connections. At 210 mm for 12M rows, it saves wiring time, improves panel neatness, and ensures consistent, safe power distribution across circuits.
EAN
3250613740924
VPE
50 pieces
Load break switch Visible breaking 4P 125A Main switch 6 modules Icw 2.5kA KDN363A
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Protective cap/strip for phase busbar 1 product.page.accessories.products-available
product.page.accessories.compatible.title
-
product.page.accessories.referenced_by.title 59 product.page.accessories.products-available
product.page.accessories.referenced_by.title
-
NFN320MCB 3P 6/10kA C-20A 3M
-
NRN350MCB 3P 15kA C-50A 3M
-
NFN304MCB 3P 6/10kA C-4A 3M
-
NRN340MCB 3P 20kA C-40A 3M
-
NFN316MCB 3P 6/10kA C-16A 3M
-
NFN340MCB 3P 6/10kA C-40A 3M
-
NBN363AMCB 3P 10kA/15kA B-63A 3M
-
NBN320AMCB 3P 10kA/15kA B-20A 3M
-
NBN310AMCB 3P 10kA/15kA B-10A 3M
-
NFN325
MCB 3P 6/10kA C-25A 3M
-
NDN310AMCB 3P 10kA/15kA D-10A 3M
-
NFN332MCB 3P 6/10kA C-32A 3M
-
NBN325AMCB 3P 10kA/15kA B-25A 3M
-
NDN363AMCB 3P 10kA/15kA D-63A 3M
-
NDN340AMCB 3P 10kA/15kA D-40A 3M
-
NDN320AMCB 3P 10kA/15kA D-20A 3M
-
NCN350AMCB 3P 10kA/15kA C-50A 3M
-
NBN306AMCB 3P 10kA/15kA B-6A 3M
-
NCN363AMCB 3P 10kA/15kA C-63A 3M
-
NFN310MCB 3P 6/10kA C-10A 3M
Technical characteristics
Electric current
-
Rated current IN63 A
Architecture
-
Number of poles3
-
Type of pole3P
Dimensions
-
Length210 mm
Voltage
-
Rated impulse withstand voltage Uimp4500 V
-
Rated operational voltage Ue230 - 400 V
Connection
-
Cross-section rigid conductor10 mm²
-
Connector/plug typePhase busbar with fork
Capacity
-
Number of modules12
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

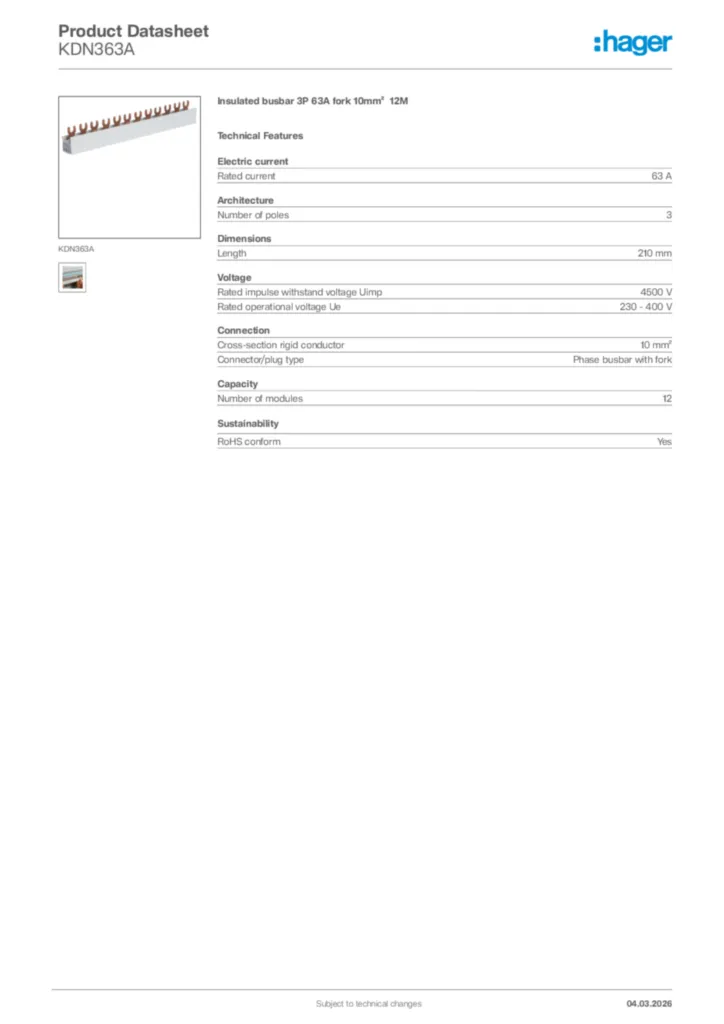

Hager Product data sheet KDN363A
Insulated busbar 3P 63A fork 10mm² 12M
PDF -
ProductECDeclaration
Declaration of conformity en-GB 2026-01-12
PDF386,96 kB
Declaration of conformity en-GB 2026-01-12
PDF364,15 kB
More documentation
