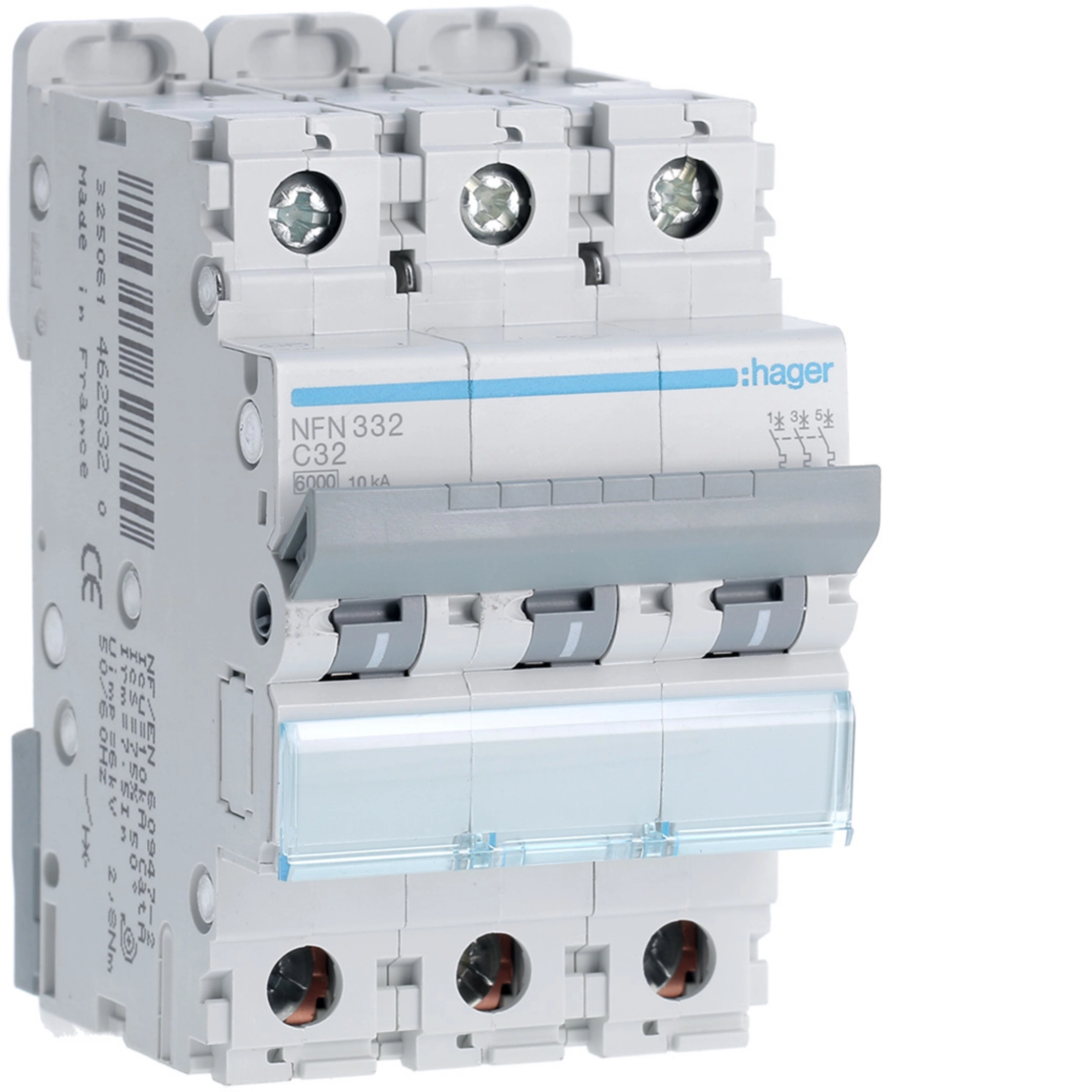

MCB 3P 6/10kA C-32A 3M NFN332

EAN
3250614628320
Packaging
4

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

MCB 3P 6/10kA C-32A 3M

NFN332

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • Terminal cover 1 products available
  • Modular phase busbar 3 products available
  • AOB type AC/A-SEL 1 products available
  • AOB type A-HI 1 products available
  • Protective cap/strip for phase busbar 1 products available
  • AOB type AC 4 products available

Complete your system

  • Terminal cover
  • Modular phase busbar
  • AOB type AC/A-SEL
  • AOB type A-HI
  • Protective cap/strip for phase busbar
  • AOB type AC
  • MZN120

    Terminal shield / screw shield for MCB
    0.00 €  / *
  • KDN363B

    Insulated busbar 3P 63A fork 10mm² 57M
    0.00 €  / *
  • KDN363A

    Insulated busbar 3P 63A fork 10mm² 12M
    0.00 €  / *
  • KDN380B

    Insulated busbar 3P 80A fork 16mm² 57M
    0.00 €  / *
  • BP364

    Earth leakage add-on block 3P 63A 300mA AC S Class
    0.00 €  / *
  • BD340

    Earth leakage add-on block 3P 40A 30mA A high immunity Class
    0.00 €  / *
  • KZN023

    Endcap for busbars 2P and 3P
    0.00 €  / *
  • BG364

    Earth leakage add-on block 3P 63A 500mA AC Class
    0.00 €  / *
  • BF364

    Earth leakage add-on block 3P 63A 300mA AC Class
    0.00 €  / *
  • BD341

    Earth leakage add-on block 3P 40A 30mA AC Class
    0.00 €  / *
  • BF341

    Earth leakage add-on block 3P 40A 300mA AC Class
    0.00 €  / *

Technical properties

Elec­tric current
  • Rated current
    32 A
  • Rated service breaking capa­city Ics under 230 V AC according to IEC 60947-2
    15 kA
  • Rated short-­cir­cuit breaking capa­city Icn under 230 V AC according to IEC 60898-1
    10 kA
  • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 230 V AC IEC 60947-2
    20 kA
  • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 400 V AC IEC 60947-2
    10 kA
Archi­tec­ture
  • Type of pole
    3P
  • Curve
    C
Capa­city
  • Number of modules
    3
Install­a­tion, mounting
  • Nominal tight­ening torque top terminal
    2.80 - 2.80 Nm
  • Nominal tight­ening torque down terminal
    2.80 - 2.80 Nm
  • Nominal tight­ening torque
    2.80 - 2.80 Nm
  • Type of bottom connec­tion for modular devices
    bicon­nect
  • Type of top connec­tion for modular devices
    Screw terminal
  • 360° mounting posi­tion possible
    Yes
Main elec­trical attrib­utes
  • Rated short-­cir­cuit breaking capa­city Icn AC according to IEC 60898-1
    6 kA
Voltage
  • Rated oper­a­tional voltage Ue
    400 - 400 V
  • Type voltage supply
    AC
  • Rated insu­la­tion voltage Ui
    500 V
  • Rated impulse with­stand voltage Uimp
    6000 V
Frequency
  • Frequency
    50 - 60 Hz
Connec­tion
  • Cross-sec­tion of input and output with screws, for massive conductors
    1 - 35 mm²
  • Cross-sec­tion of input and output with screws, for flex­ible conductors
    1 - 25 mm²
  • Cross-sec­tion of input with screws, for flex­ible conductors
    1 - 25 mm²
  • Cross-sec­tion of input with screws, for massive conductors
    1 - 35 mm²
Safety
  • Ingress Protec­tion (IP) class
    IP20
  • Grid distance
    60 mm
Use condi­tions
  • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
    2
  • Class of energy limit­a­tion I²t
    3
  • Oper­ating temper­ature
    -25 - 70 °C
Power
  • Total power loss under IN
    12.30 W
Connectivity
  • Type of connec­tion
    Screw terminal
  • Top connec­tion align­ment for modular devices
    Aligned terminal
  • Down connec­tion align­ment for modular devices
    Aligned terminal
Dimen­sions
  • Height
    83 mm
  • Width
    52.50 mm
  • Depth
    70 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

Hager REACH declaration NFN332
PDF
Hager RoHS report NFN332
PDF

Downloads

  • Image NFN332 | Hager Africa

    Product Image NFN332

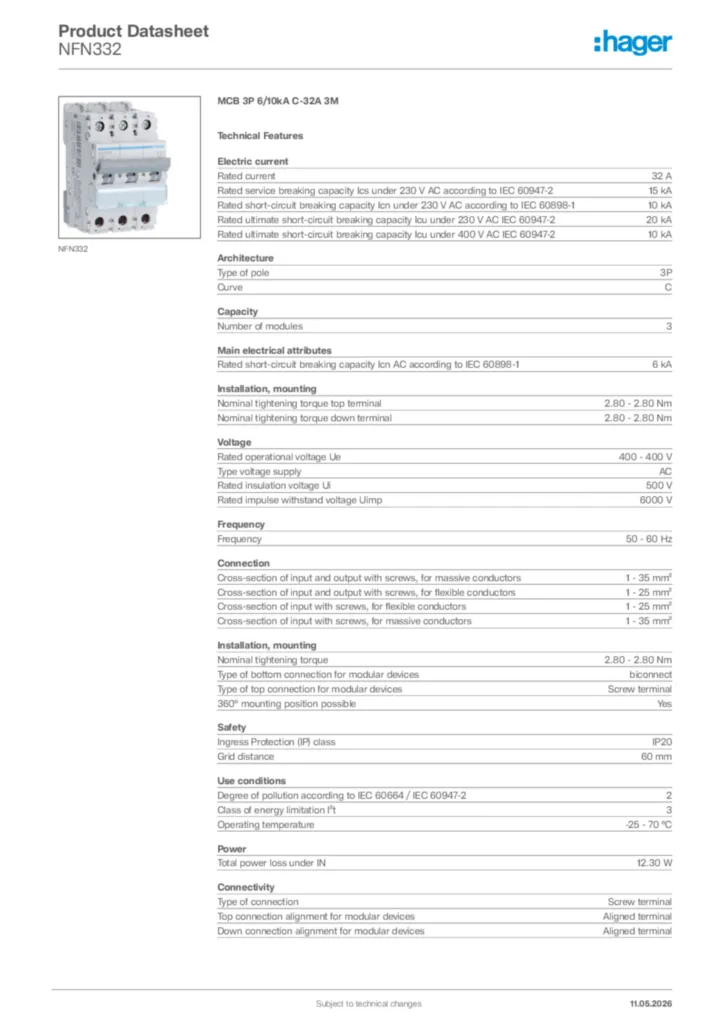

  • Product datasheet

    Image undefined | Hager Africa

    undefined

    PDF

  • Declaration of conformity

    Image EU Declaration of Conformity | Hager Africa

    EU Declaration of Conformity

    PDF
    749,49 kB
    Image UKCA Declaration of Conformity | Hager Africa

    UKCA Declaration of Conformity

    PDF
    753,40 kB
