The Hager Magnetic MCB 2P 16A 20kA 400V with access indicator provides robust short-circuit protection and safe two-pole isolation for industrial and commercial installations. IEC 60947-2 compliant, it offers a high 20kA breaking capacity, compact 2-module width, screw/biconnect terminals for 1-35 mm², Ui 500 V, Uimp 6 kV, IP20, and wide -25 to 70°C operation, ensuring durability and reliable performance.

EAN

3250614440083

Packaging

1 Piece

Moulded Case Circuit Breaker X160 3P 63A 40kA Icu TM A/F MMN216

Phase out product: please contact your electrical wholesaler for availability

Accessories
Technical properties
Documentations

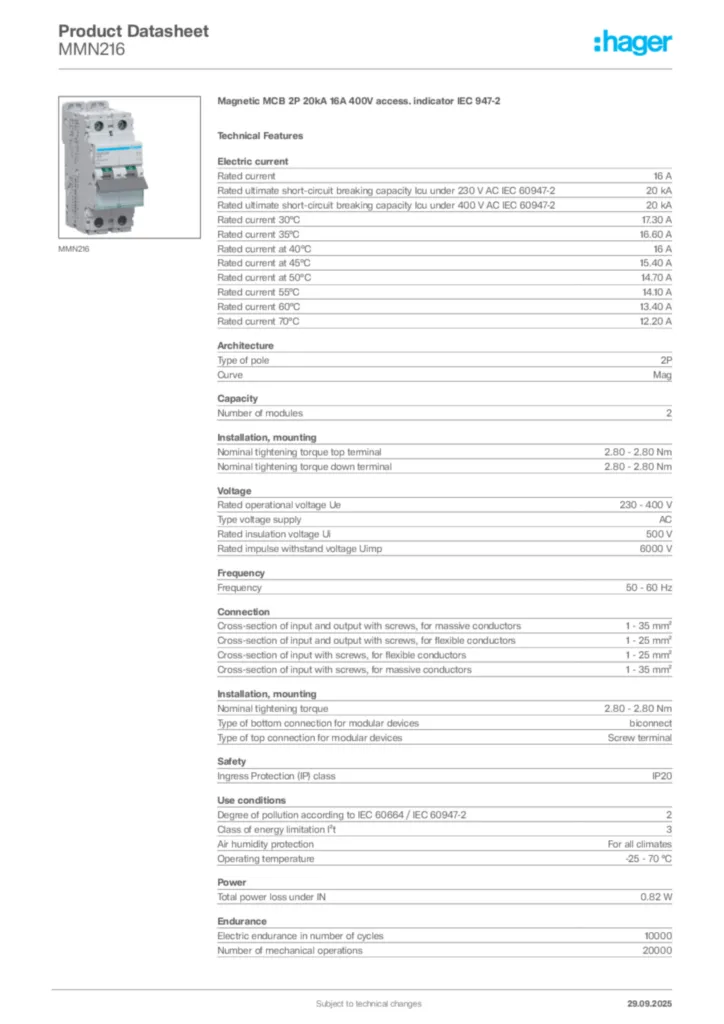

Download the data sheet

Complete your system

Terminal cover 1 products available
AOB type AC 9 products available
AOB type A-HI 3 products available

Technical properties

Rated current IN

16 A
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-2

20 kA
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

20 kA
Rated current 30°C

17.30 A
Rated current 35°C

16.60 A
Rated current at 40°C

16 A
Rated current at 45°C

15.40 A
Rated current at 50°C

14.70 A
Rated current 55°C

14.10 A
Rated current 60°C

13.40 A
Rated current 70°C

12.20 A

Type of pole

2P
Curve

Mag

Number of modules

2

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal

Rated operational voltage Ue

230 - 400 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²
