Earth leakage add-on block 2P 63A 30mA AC Class BD264
Login to create a product list
You need to be logged into your myHager account to create product lists
Available soon
Complete your system
Compatible products
-
Referenced by 42 products available
Referenced by
-
NGN263MCB 2P 6/10kA D-63A 2M
-
MMN210Magnetic MCB 2P 25kA 10A 400V Zubehörmöglich. Anzeige IEC 947-2
-
MMN216Magnetic MCB 2P 20kA 16A 400V access. indicator IEC 947-2
-
MMN204Magnetic MCB 2P 25kA 4A 400V access. indicator IEC 947-2
-
NFN263MCB 2P 6/10kA C-63A 2M
-

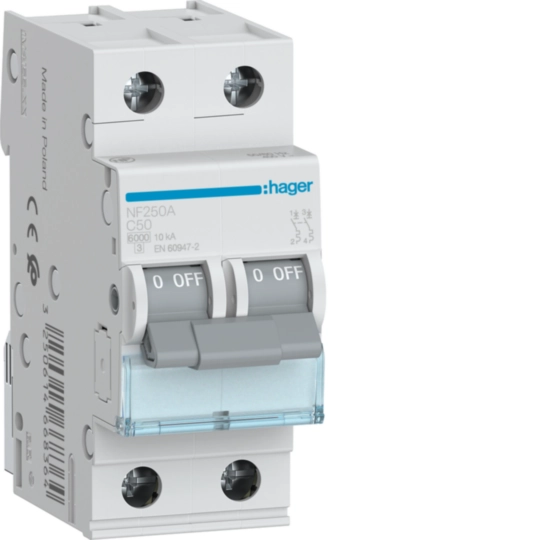

NF250AMCB 2P 6/10kA C-50A 2M
-
MMN203Magnetic MCB 2P 25kA 2.5A 400V access. indicator IEC 947-2
-
NF263A
MCB 2P 6/10kA C-63A 2M
-
MMN225Magnetic MCB 2P 25kA 25A 400V Zubehörmöglich. Anzeige IEC 947-2
-
MBN263A
MCB 2P 6kA B-63A 2M
-

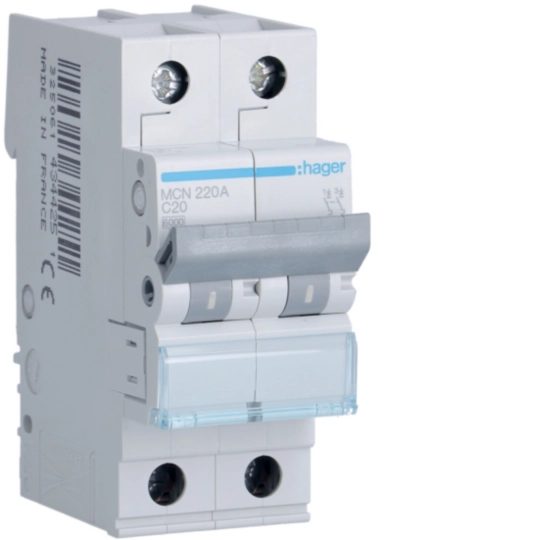

MCN220AMCB 2P 6kA C-20A 2M
-
MMN213Magnetic MCB 2P 25kA 12A 400V Zubehörmöglich. Anzeige IEC 947-2
-
MCN263AMCB 2P 6kA C-63A 2M
-
MCN250AMCB 2P 6kA C-50A 2M
-
NRN250MCB 2P 15kA C-50A 2M
-
MCN201MCB 2P 6kA C-1A 2M
-
NBN250AMCB 2P 10kA/15kA B-50A 2M
-
NCN263AMCB 2P 10kA/15kA C-63A 2M
-
NGN250MCB 2P 6/10kA D-50A 2M
-
NDN263AMCB 2P 10kA/15kA D-63A 2M
Technical properties
Architecture
-
Neutral positionLeft
-
Number of poles2
Capacity
-
Number of modules2
Voltage
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Frequency
-
Frequency50 - 50 Hz
Electric current
-
Rated residual operating current Idn30 mA
-
Rated current63 A
Installation, mounting
-
Nominal tightening torque2.80 - 2.80 Nm
-
Nominal tightening torque down terminal2.90 - 2.90 Nm
Dimensions
-
Height70 mm
-
Width35 mm
-
Depth92 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

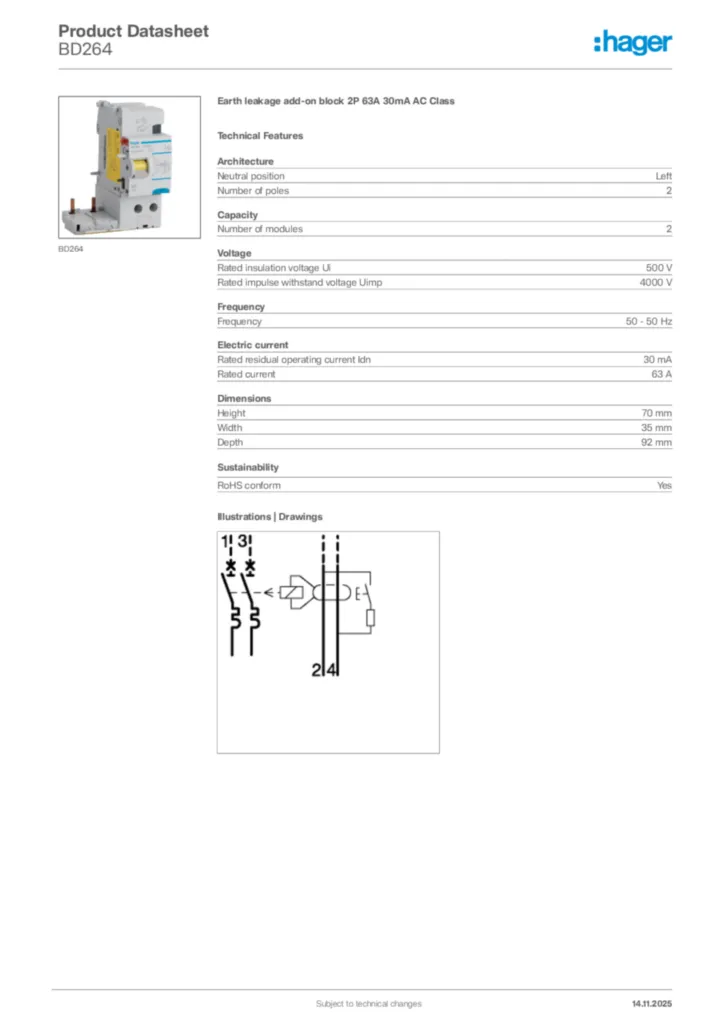

Product datasheet

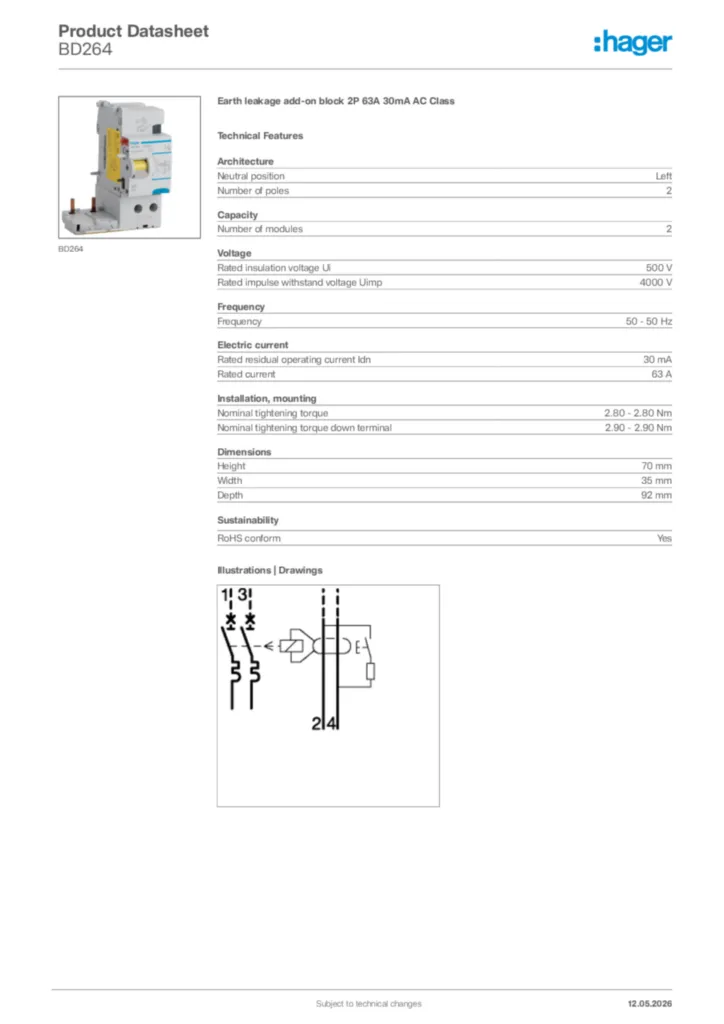

Hager Product data sheet BD264
Earth leakage add-on block 2P 63A 30mA AC Class
PDF -
Installation manual
Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29
PDF1,61 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-11-10
PDF920,46 kB
Declaration
Declaration of conformity International 2021-12-07
PDF1,14 MB
EU Declaration of Conformity
Declaration of conformity en-GB 2024-11-12
PDF452,70 kB
