The Hager Magnetic MCB 2P 6.3A 25kA (400V) safeguards circuits against short circuits, ideal for industrial control and motor inrush applications. IEC 60947-2 compliant, it offers Icu 50kA at 230V and 25kA at 400V (Ics 20kA). Compact 2-module, 2-pole design, 415V AC, Ui 500V, Uimp 6kV, IP20. Bi-connect/screw terminals 1-35 mm², 360° mounting, 4,000 cycles, low loss (0.4 W), accessory and trip indication ready.

EAN

3250614440052

Packaging

1 Piece

MCB 4P 16A Curve C 25kA 415V 4 Modules MMN206

Phase out product: please contact your electrical wholesaler for availability

Accessories
Technical properties
Documentations

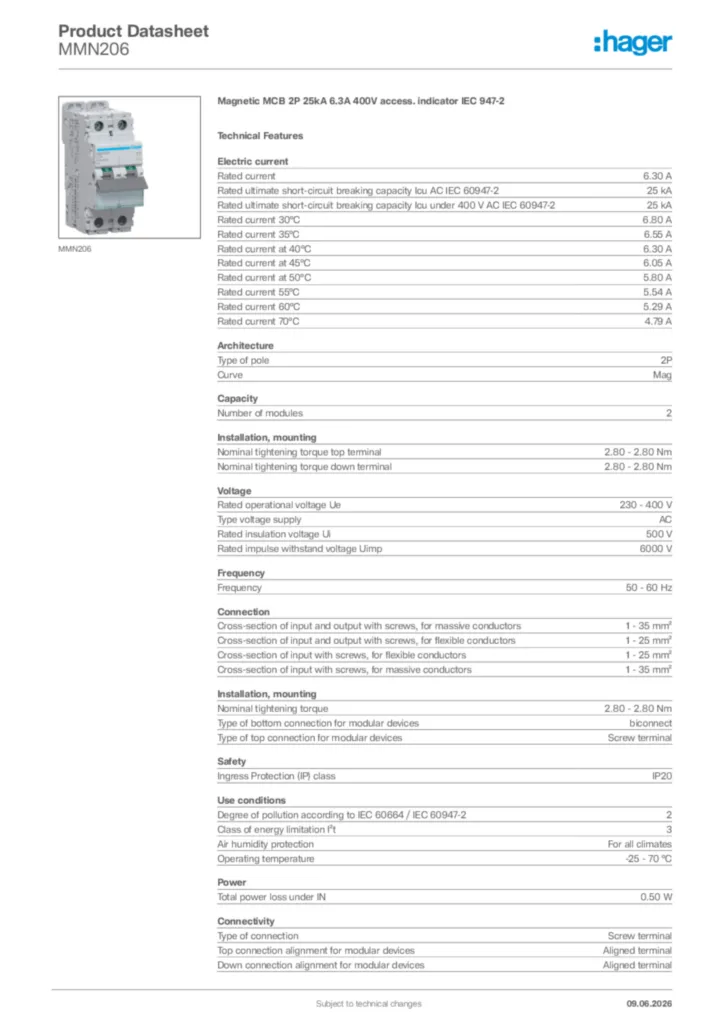

Download the data sheet

Complete your system

Terminal cover 1 products available
AOB type AC 9 products available
AOB type A-HI 3 products available

Technical properties

Rated current IN

6.30 A
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-2

25 kA
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

25 kA
Rated current 30°C

6.80 A
Rated current 35°C

6.55 A
Rated current at 40°C

6.30 A
Rated current at 45°C

6.05 A
Rated current at 50°C

5.80 A
Rated current 55°C

5.54 A
Rated current 60°C

5.29 A
Rated current 70°C

4.79 A

Type of pole

2P
Curve

Mag

Number of modules

2

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal

Rated operational voltage Ue

230 - 400 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²
