The Hager LFS steel trunking 60x150 mm in traffic white (RAL9016) routes and protects cables in residential or commercial installs. With 2 m length and 7000 mm² cross-section, it accommodates up to 29 Ø11 mm cables (50% fill). Robust IK08, IP30, and -5 to 90°C rating. Supplied with cable retaining clip, 1-3 compartments via 2 pluggable partitions. Couplers available separately for continuous runs.

EAN

4012740994507

Packaging

6 Meters

Cable trunking systems - LF

T-piece Overlapping Steel LFS trunking 60x100 Traffic white RAL9016 LFS6015009016

Accessories
Technical properties
Environmental value
Documentations
More products

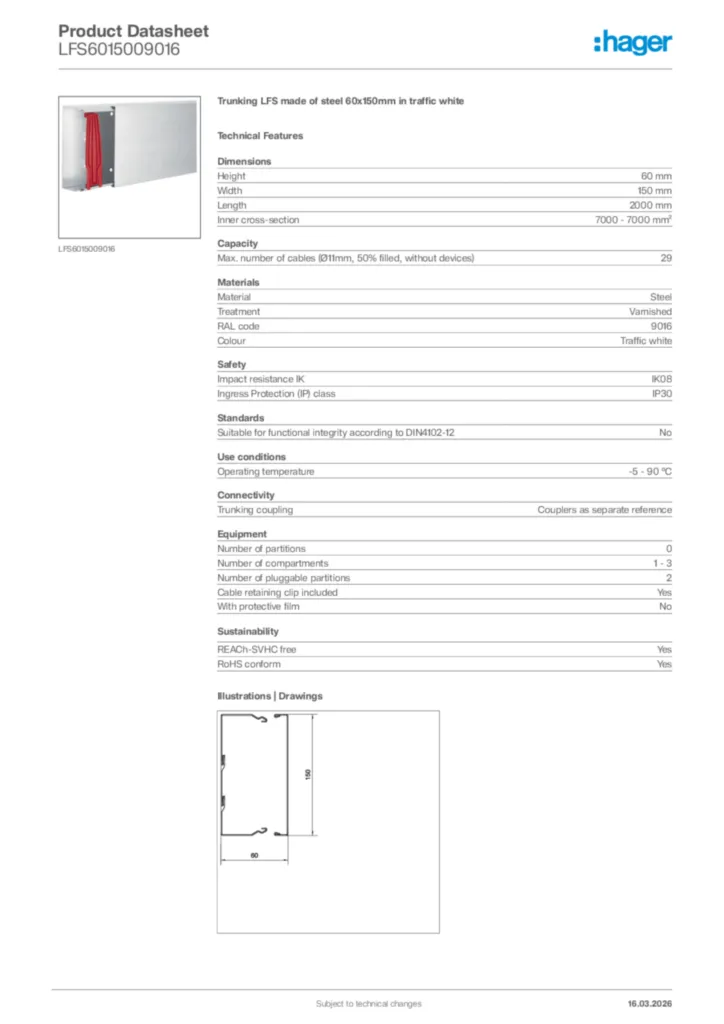

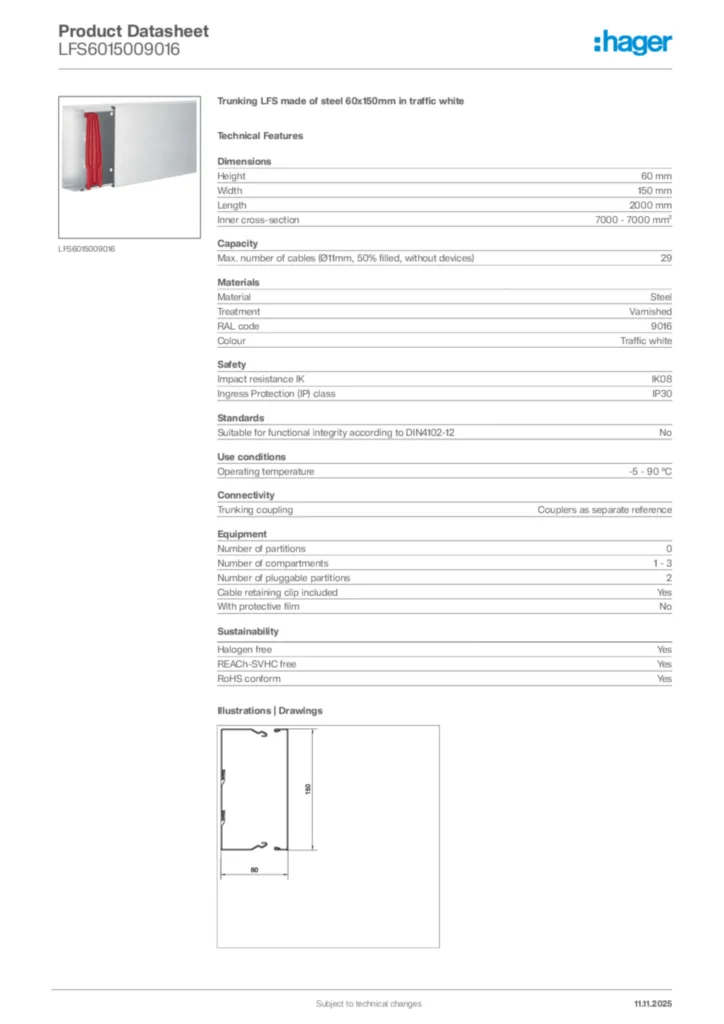

Download the data sheet

Complete your system

Cable clip/retainer for installation duct 2 products available
Earthing set 1 products available
Coupler for installation duct 1 products available
Partition for wall duct 2 products available
End piece for installation duct 1 products available
Internal corner for installation duct 1 products available

Technical properties

Height

60 mm
Width

150 mm
Length

2000 mm
Inner cross-section

7000 - 7000 mm²

Type of lid

Loose

Max. number of cables (Ø11mm, 50% filled, without devices)

29

Material

Steel
Treatment

Varnished
RAL code

9016
Colour

Traffic white
Transparent

No

Impact resistance IK

IK08
Ingress Protection (IP) class

IP30

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 90 °C

Trunking coupling

Couplers as separate reference

Number of partitions

0
Number of compartments

1 - 3
Number of pluggable partitions

2
Cable retaining clip included

Yes
Number of cable retainers per meter

2
With protective film

No

With antibacterial treatment

No

Delivery on roll

No

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
