The Hager LFH 40x60 halogen-free cable trunking (traffic white, RAL 9016, PC-ABS) provides safe, neat routing in residential and commercial installs. Supplied in 2 m lengths with pre-equipped couplers and a retaining clip for fast mounting. Robust IK07, IP30, and -5 to 90°C rating. Single compartment, 1500 mm² section, accommodating up to 7 × Ø11 mm cables at 50% fill.

EAN

4012740008198

Packaging

24 Meters

Cable trunking systems - LF

Halogen-free trunking LFH 20x20mm 2m Traffic white IP30 IK07 LFH4006009016

Accessories
Technical properties
Environmental value
Documentations
More products

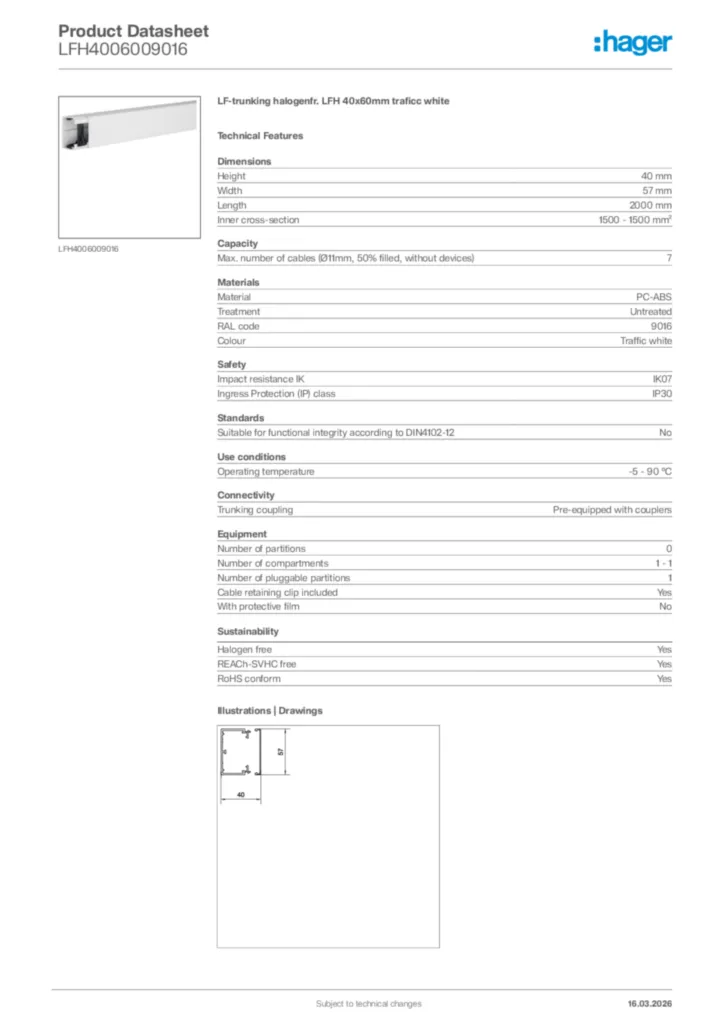

Download the data sheet

Complete your system

End piece for installation duct 2 products available
External corner for installation duct 1 products available
Internal corner for installation duct 1 products available
Flat angle for installation duct 1 products available
T-piece for installation duct 1 products available

Technical properties

Height

40 mm
Width

57 mm
Length

2000 mm
Inner cross-section

1500 - 1500 mm²

Type of lid

Loose

Max. number of cables (Ø11mm, 50% filled, without devices)

7

Material

PC-ABS
Treatment

Untreated
RAL code

9016
Colour

Traffic white
Transparent

No

Impact resistance IK

IK07
Ingress Protection (IP) class

IP30

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 90 °C

Trunking coupling

Pre-equipped with couplers

Number of partitions

0
Number of compartments

1 - 1
Number of pluggable partitions

1
Cable retaining clip included

Yes
Number of cable retainers per meter

2
With protective film

No

With antibacterial treatment

No

Delivery on roll

No

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
