The Hager halogen-free endcap for LF/LFH trunking 40x57 mm in traffic white provides a clean, safe termination of cable ducts while protecting conductors. Made of ABS (RAL 9016) with IK07 impact resistance, it withstands -5 to 90°C. Fast screw or snap-on mounting simplifies installation. Non-overlapping design ensures a flush finish. Compatible with LFH 40x60 range.

EAN

4012740012102

Packaging

1 Piece

Cable trunking systems - LF

Flat angle 90° halogen free for LF/LFH trunking 30x45 IK07 traffic white LF4006069016

Technical properties
Environmental value
Documentations
More products

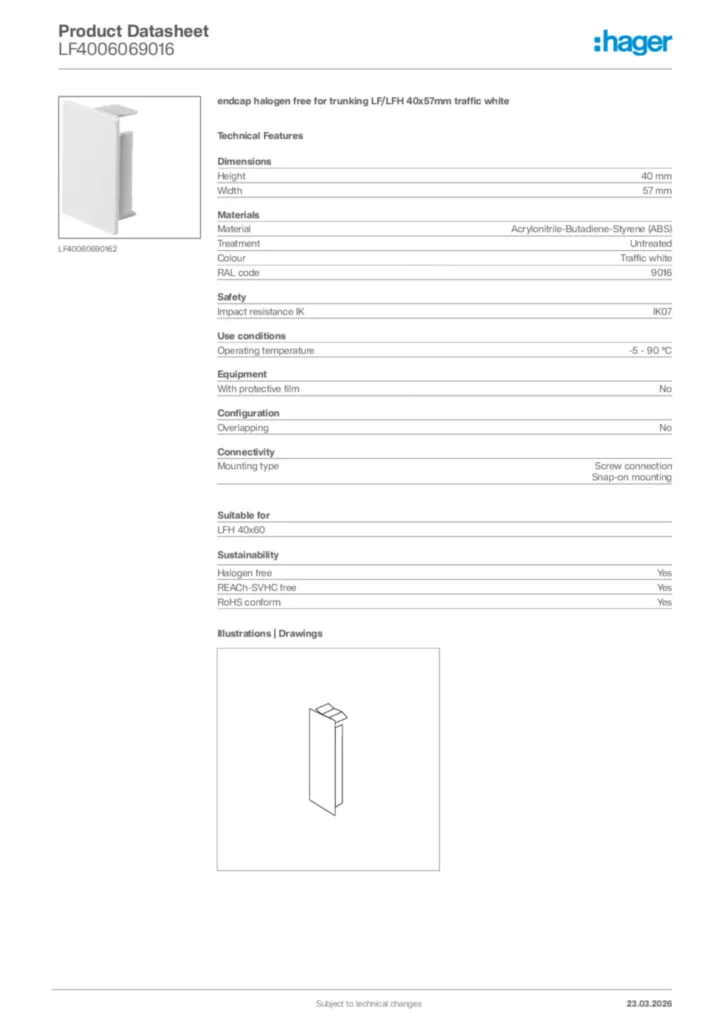

Download the data sheet

Technical properties

Height

40 mm
Width

57 mm

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Traffic white
RAL code

9016

Impact resistance IK

IK07

Operating temperature

-5 - 90 °C

With protective film

No

Overlapping

No
With antibacterial treatment

No

Mounting type

Screw connection, Snap-on mounting

Suitable for functional integrity according to DIN4102-12

No

Related Series

LFH 40x60

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
