The Hager halogen-free external corner for LF/LFF/LFH 40x57 mm trunking provides neat, safe corner transitions. Moulded ABS in traffic white (RAL9016) with overlapping cover and click mounting for quick, clean installation. Adjustable 83-97° to suit wall angles, IK07 impact resistance, and -5 to 90°C operation. Dimensions 40x57 mm (a=58 mm). Ideal for residential and commercial trunking runs.

EAN

4012740013123

Packaging

1 Piece

LFF Trunking 40x57mm PVC 2m IP40 IK07 pre-coupled + 2 clips Traffic White LFF4006039016

Technical properties
Environmental value
Documentations
More products

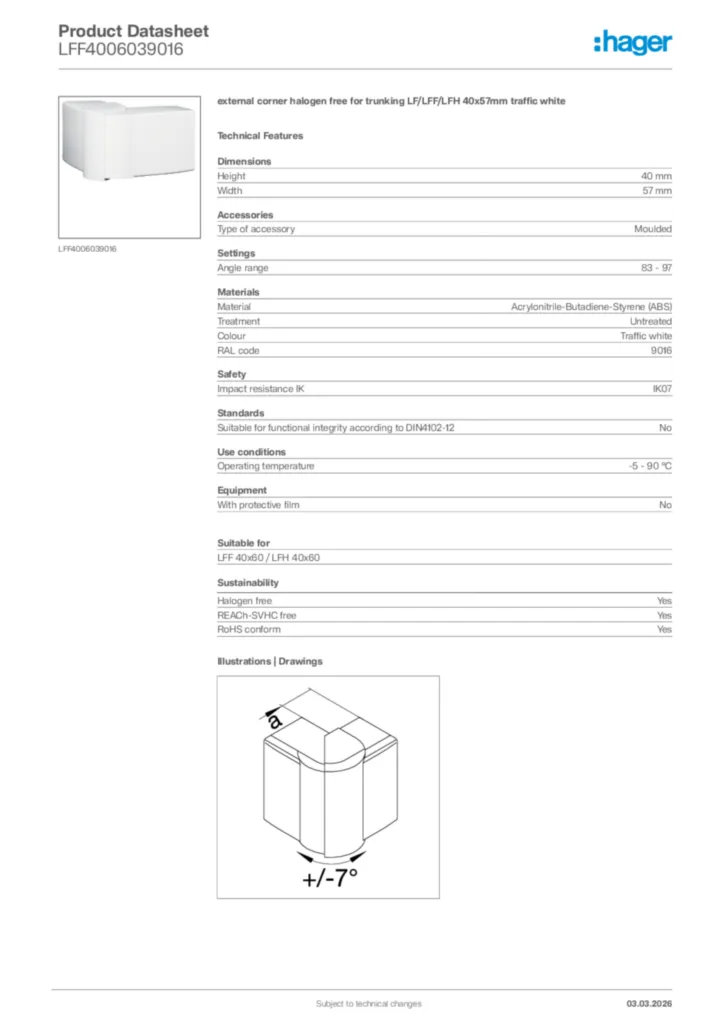

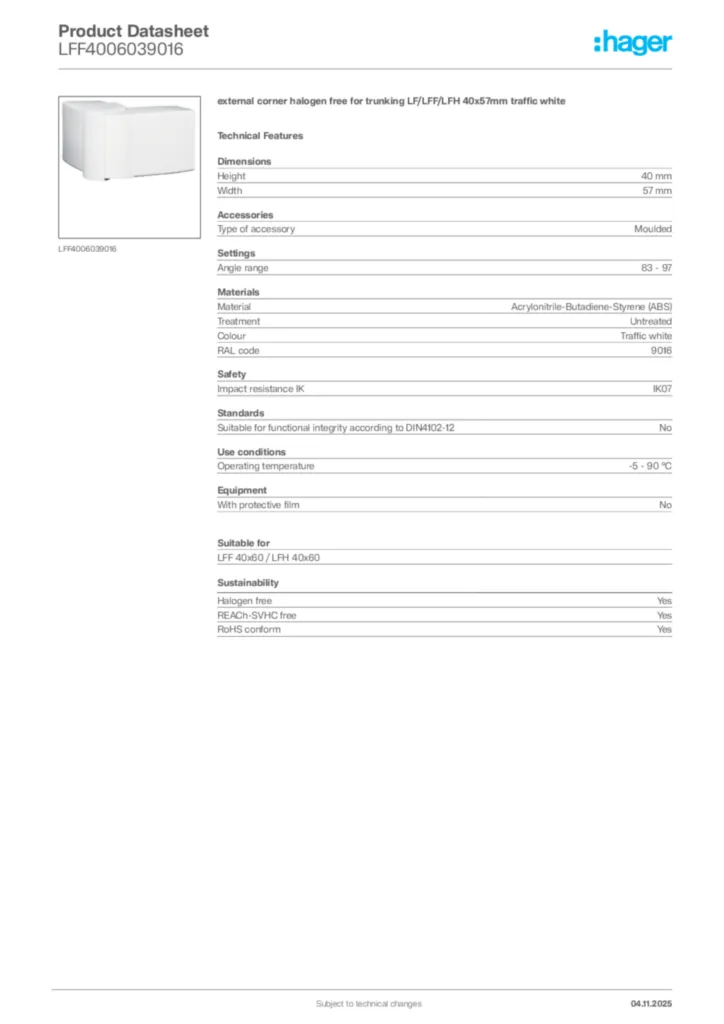

Download the data sheet

Technical properties

Height

40 mm
Width

57 mm
Measurement a

58 mm

Type of accessory

Moulded

Angle range

83 - 97

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Traffic white
RAL code

9016

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 90 °C

With protective film

No

Overlapping

Yes

Mounting type

Click mounting

Related Series

LFF 40x60, LFH 40x60

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
