    The Hager VegaD surface enclosure IP55 (1100x550x275 mm) delivers robust indoor distribution for commercial/industrial use. Rated 160 A, it offers 6 rows/4 rails for 96 modules (+2 rows to complete) across 24 width units. Class II insulation, IK10 impact resistance and sealed design boost safety. Features a single opaque door with pivoted lever, special-tool access, 4 conduit inlets, and an earthing terminal block.
    EAN
    3250612720064
    Packaging
    1 Piece
    • vega D

    Surface enclosure VegaD IP55 Cl II IK10 7 rows 120 modules 160A 1250x550x275 FV62A

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Surface enclosure VegaD IP55 Cl II IK10 7 rows 120 modules 160A 1250x550x275

    FV62A

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

  • See more (17)
    • Insert for lock system 2 products available
    • Docu­ment holder 2 products available
    • Cable gland 5 products available
    • Distrib­utor assembly for serial built-in device 1 products available
    • Cover strip 1 products available
    • Lock system 4 products available

    Complete your system

    • Insert for lock system
    • Docu­ment holder
    • Cable gland
    • Distrib­utor assembly for serial built-in device
    • Cover strip
    • Lock system
    • Key for enclos­ures/cab­inets
    • Accessor­ies/s­pare parts for terminals
    • FZ517

      Key lock insert, Quadro5, 6 mm

      €0.00  / *
    • FZ515

      Key lock insert, Quadro5, 8 mm

      €0.00  / *
    • FZ794

      Document holder, transparent, DIN A4, adhesive

      €0.00  / *
    • FZ795D

      Document holder, Univers

      €0.00  / *
    • VZ016M

      Cable gland, vector, IP65, M16, plastic

      €0.00  / *
    • VZ020M

      Cable gland, vector, IP65, M20, plastic

      €0.00  / *
    • VZ025M

      Cable gland, vecor, IP65, M25, plastic

      €0.00  / *
    • VZ032M

      Cable gland, vector, IP65, M32, plastic

      €0.00  / *
    • VZ040M

      Cable gland, vector, IP65, M40, plastic

      €0.00  / *
    • UD22C2

      Kit, universN, 300x500mm, with mounting plate perforated adjustable

      €0.00  / *
    • JP002

      Cover strip, universal, 24 Modules, RAL 9011

      €0.00  / *
    • FZ502

      Lock, univers, triangular 7mm, with 1 key

      €0.00  / *
    • FZ501

      Lock, univers, double-bit 3mm, with 1 key, for enclosures FA / FT / FG

      €0.00  / *
    • FZ527

      Lock, univers, big T-handle, with lock-Nr. E455 with 2 keys for encl. IP5-6

      €0.00  / *
    • FZ526

      Lock, univers, big T-handle, with lock-Nr. E405 with 2 keys for encl. IP5-6

      €0.00  / *
    • FZ850

      Key lock insert, Orion.Plus

      €0.00  / *
    • VZ710

      Terminal base, golf, VB FD, accessory, for QC terminal

      €0.00  / *

    Technical properties

    Connec­tion
    • Number of conduit inlets
      4
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current IN
      160 A
    Equip­ment
    • Number of rails
      4
    • Number of rows
      6
    • With lock
      No
    • Has neutral terminal block
      No
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      96
    Dimen­sions
    • Height
      1100 mm
    • Width
      550 mm
    • Depth
      275 mm
    • Number of width units
      24
    Cover, door
    • Number of cabinet doors
      1
    • Type of handle
      Pivoted lever
    • Door/­cover is trans­parent
      No
    • Cabinet door type
      Single door
    Mater­ials
    • Material
      Metal, Plastic
    • RAL code
      9010
    • Colour
      Pure white
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK10
    • Ingress Protec­tion (IP) class
      IP55
    • Locking type
      Special tool

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    Certifications and documents

    PEP - ENCLOSURE SURFACE GAMMA 26 M (English )
    PDF
    25,24 MB
    REACH declaration FV62A
    PDF
    Hager RoHS report FV62A
    PDF

    Downloads

    • Image FV62A  | Hager Africa

      Product Image FV62A

    • Product datasheet

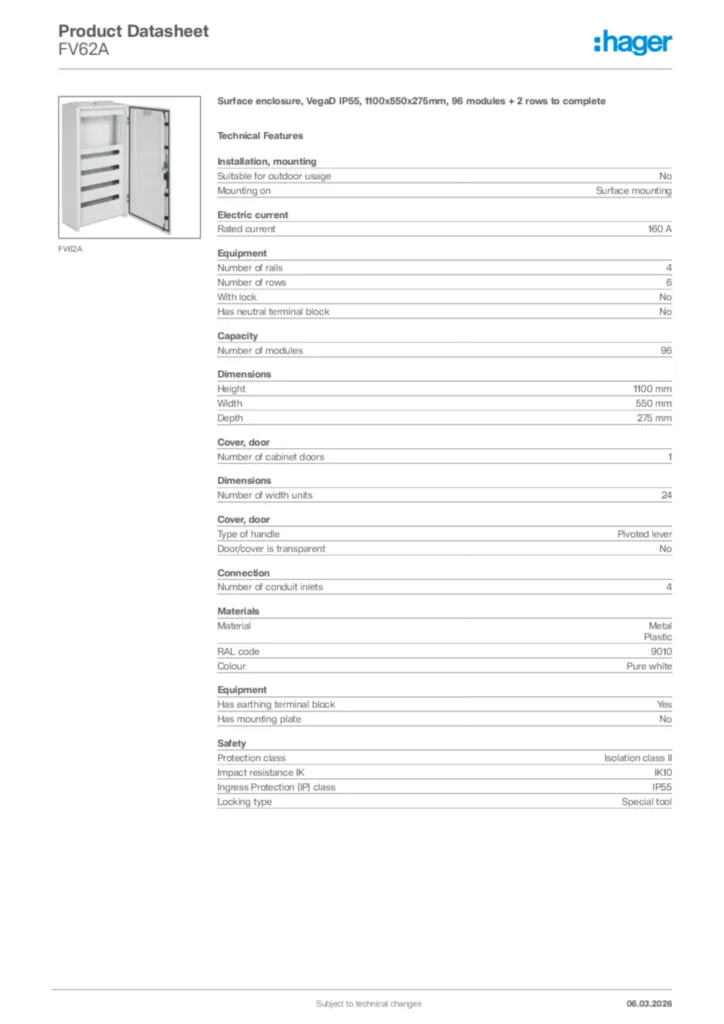

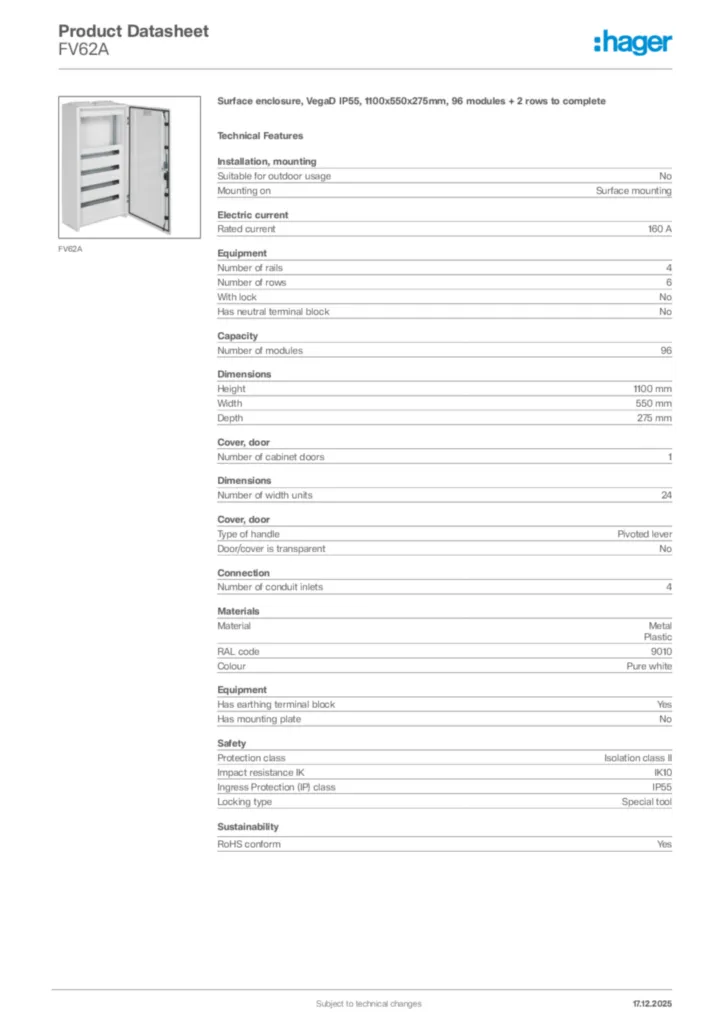

      Image Hager Product data sheet FV62A  | Hager Africa

      Hager Product data sheet FV62A

      Surface enclosure, VegaD IP55, 1100x550x275mm, 96 modules + 2 rows to complete

      PDF
    • Declaration of conformity

      Image Declaration  | Hager Africa

      Declaration

      Declaration of conformity International 2022-10-11

      PDF
      190,72 kB
