Surface enclosure, VegaD IP55, 950x550x275mm, 72 modules + 2 rows to complete FV52A

EAN
3250612720057
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Surface enclosure, VegaD IP55, 950x550x275mm, 72 modules + 2 rows to complete

FV52A

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (30)
    • Lock system 10 products available
    • Docu­ment holder 2 products available
    • Cable entry sleeve 1 products available
    • Cable gland 5 products available
    • Distrib­utor assembly for serial built-in device 3 products available
    • Gland plate for enclosure 3 products available

    Complete your system

    • Lock system
    • Docu­ment holder
    • Cable entry sleeve
    • Cable gland
    • Distrib­utor assembly for serial built-in device
    • Gland plate for enclosure
    • Cover strip
    • Insert for lock system
    • Key for enclos­ures/cab­inets
    • Accessor­ies/s­pare parts for terminals
    • Touch-up stick
    • FZ537

      Rotary and sealing handle lock, Univers

      0.00 €  / *
    • FZ520

      Euro-profile cylinder 455 for swing lever FZ537

      0.00 €  / *
    • FZ519

      Euro-profile cylinder 405 for swing lever FZ537

      0.00 €  / *
    • FZ506

      Euro-profile cylinder 1242E for swing lever FZ537

      0.00 €  / *
    • FZ502

      Lock, univers, triangular 7mm, with 1 key

      0.00 €  / *
    • FZ501

      Lock, univers, double-bit 3mm, with 1 key, for enclosures FA / FT / FG

      0.00 €  / *
    • FZ527

      Lock, univers, big T-handle, with lock-Nr. E455 with 2 keys for encl. IP5-6

      0.00 €  / *
    • FZ526

      Lock, univers, big T-handle, with lock-Nr. E405 with 2 keys for encl. IP5-6

      0.00 €  / *
    • FZ508

      Swing lever, univers, with cylinder Nr.E1242 with 2 keys for encl.IP5-6, sealable

      0.00 €  / *
    • FZ507

      Lock, univers, T-handle with cylinder Nr.E1242, with 2 keys, IP 5-6, sealable

      0.00 €  / *
    • FZ794

      Document holder, transparent, DIN A4, adhesive

      0.00 €  / *
    • FZ795D

      Document holder, Univers

      0.00 €  / *
    • FZ415N

      Metal cable gland plate CL1, Univers, for cable d=30-72 mm 230x120 mm

      0.00 €  / *
    • VZ016M

      Cable gland, vector, IP65, M16, plastic

      0.00 €  / *
    • VZ020M

      Cable gland, vector, IP65, M20, plastic

      0.00 €  / *
    • VZ025M

      Cable gland, vecor, IP65, M25, plastic

      0.00 €  / *
    • VZ032M

      Cable gland, vector, IP65, M32, plastic

      0.00 €  / *
    • VZ040M

      Cable gland, vector, IP65, M40, plastic

      0.00 €  / *
    • UD22B3

      Kit, universN, 300x500mm, for modular devices horizontal, 2x24module

      0.00 €  / *
    • UD22A5

      Kit, universN, 300x500mm, for DIN rail terminal horizontal, DIN rail adjustable

      0.00 €  / *
    • UD22C2

      Kit, universN, 300x500mm, with mounting plate perforated adjustable

      0.00 €  / *
    • FZ422

      Metal cable entry plate CL1, Univers, IP55 230x120 mm

      0.00 €  / *
    • FZ404

      Cable entry plate, univers, plastic, without precut

      0.00 €  / *
    • FZ402

      Cable entry plate, univers, IP55, flexible rubber pins

      0.00 €  / *
    • JP002

      Cover strip, universal, 24 Modules, RAL 9011

      0.00 €  / *
    • FZ517

      Key lock insert, Quadro5, 6 mm

      0.00 €  / *
    • FZ515

      Key lock insert, Quadro5, 8 mm

      0.00 €  / *
    • FZ850

      Key lock insert, Orion.Plus

      0.00 €  / *
    • VZ710

      Terminal base, golf, VB FD, accessory, for QC terminal

      0.00 €  / *
    • FZ791N

      Touch-up pencil, 9ml, color RAL 9010

      0.00 €  / *

    Technical properties

    Connec­tion
    • Number of conduit inlets
      4
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      160 A
    Equip­ment
    • Number of rails
      3
    • Number of rows
      5
    • With lock
      No
    • Has neutral terminal block
      No
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      72
    Dimen­sions
    • Height
      950 mm
    • Width
      550 mm
    • Depth
      275 mm
    • Number of width units
      24
    Cover, door
    • Number of cabinet doors
      1
    • Type of handle
      Pivoted lever
    • Door/­cover is trans­parent
      No
    Mater­ials
    • Material
      Metal, Plastic
    • RAL code
      9010
    • Colour
      Pure white
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK10
    • Ingress Protec­tion (IP) class
      IP55
    • Locking type
      Special tool

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    Certifications and documents

    Encl.,gamma,surface m.,26 M,version FR
    PDF
    1,48 MB
    Hager REACH declaration FV52A
    PDF

    Downloads

    • Image FV52A  | Hager Africa

      Product Image FV52A

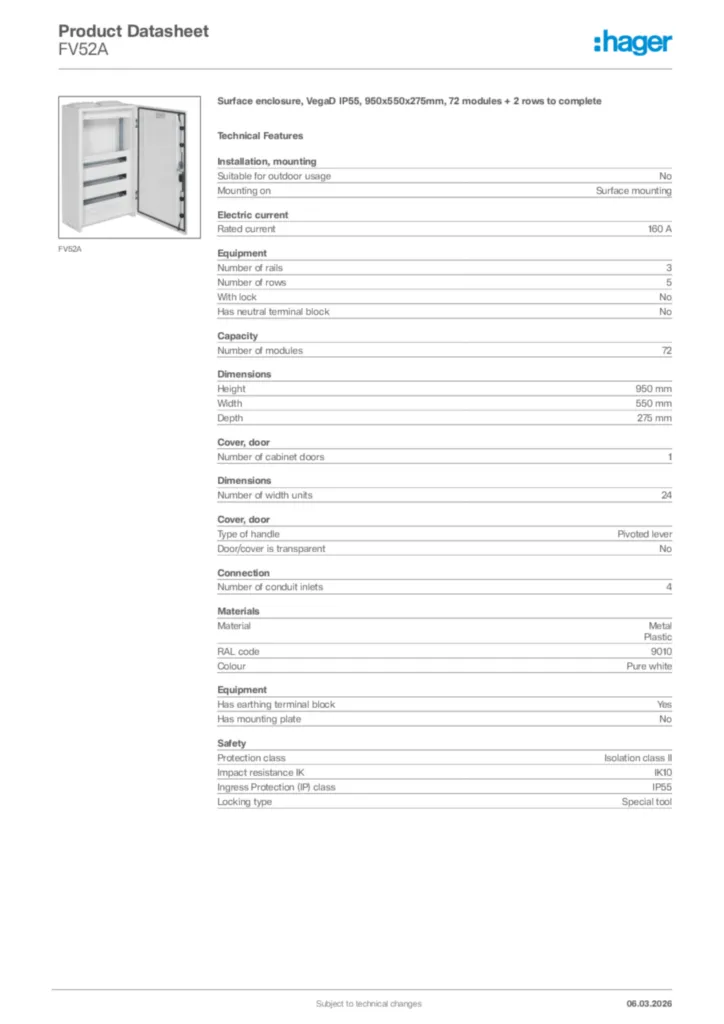

    • Product datasheet

      Image undefined  | Hager Africa

      undefined

      PDF
    • Declaration of conformity

      Image Declaration  | Hager Africa

      Declaration

      Declaration of conformity International 2022-10-11

      PDF
      190,72 kB
