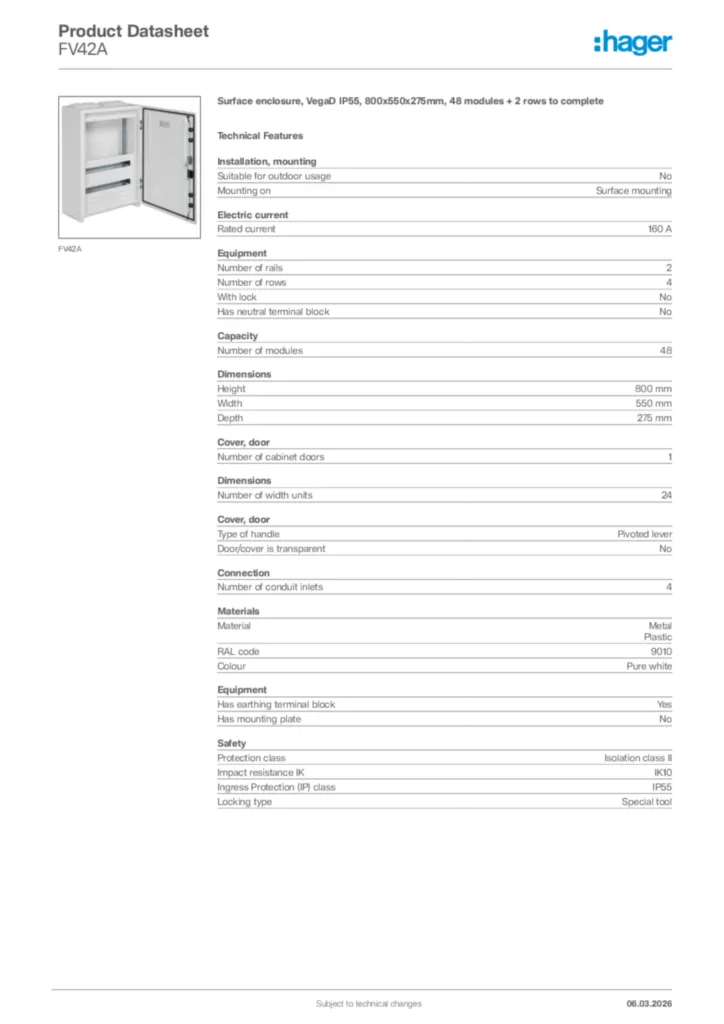

The Hager VegaD IP55 surface enclosure (800x550x275 mm) provides reliable indoor distribution up to 160 A. With 4 rows (48 modules fitted + 2 rows to complete), 2 DIN rails, and 24M width, it streamlines modular installations. IP55 and IK10 with Class II insulation ensure dust/splash protection and impact resistance. Single pivot-lever door, special-tool access, 4 conduit inlets, earthing block. Pure white RAL9010.
EAN
3250612720040
Packaging
1 Piece
Surface enclosure VegaD IP55 IK10 72 modules 5 rows 950x550x275 160A FV42A
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Lock system 10 products available -
Document holder 2 products available -
Components for wiring, cable entry and cable fixing 1 products available -
Cable gland 5 products available -
Distributor assembly for serial built-in device 3 products available -
Gland plate for enclosure 3 products available
Complete your system
-
FZ537
Rotary and sealing handle lock, Univers
-
FZ520Euro-profile cylinder 455 for swing lever FZ537
-
FZ519
Euro-profile cylinder 405 for swing lever FZ537
-
FZ506
Euro-profile cylinder 1242E for swing lever FZ537
-
FZ502Lock, univers, triangular 7mm, with 1 key
-
FZ501Lock, univers, double-bit 3mm, with 1 key, for enclosures FA / FT / FG
-
FZ527Lock, univers, big T-handle, with lock-Nr. E455 with 2 keys for encl. IP5-6
-
FZ526Lock, univers, big T-handle, with lock-Nr. E405 with 2 keys for encl. IP5-6
-
FZ508Swing lever, univers, with cylinder Nr.E1242 with 2 keys for encl.IP5-6, sealable
-
FZ507Lock, univers, T-handle with cylinder Nr.E1242, with 2 keys, IP 5-6, sealable
Technical properties
Connection
-
Number of conduit inlets4
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current160 A
Equipment
-
Number of rails2
-
Number of rows4
-
With lockNo
-
Has neutral terminal blockNo
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules48
Dimensions
-
Height800 mm
-
Width550 mm
-
Depth275 mm
-
Number of width units24
Cover, door
-
Number of cabinet doors1
-
Type of handlePivoted lever
-
Door/cover is transparentNo
-
Cabinet door typeSingle door
Materials
-
MaterialMetal, Plastic
-
RAL code9010
-
ColourPure white
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK10
-
Ingress Protection (IP) classIP55
-
Locking typeSpecial tool
