    The Hager NewVegaD flush-mounted distribution enclosure provides 72 modules over 3 rows/rails for comprehensive residential or light commercial setups. Rated 160A with IP30, IK07, Class II for safe, robust indoor use. Compact 687x600x150 mm (built-in 687x550x110) with single opaque door in RAL9010. Includes 4 conduit inlets and a 2-section layout for neat, scalable installations.
    EAN
    3250612710720
    VPE
    1 piece
    • vega D

    Enclosure NewVegaD flush-mounted 96 modules 4-row 160A IP30 837x550x182 FU32DN

    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    Enclosure NewVegaD flush-mounted 96 modules 4-row 160A IP30 837x550x182

    FU32DN

    • Accessories
    • Technical characteristics
    • catalog.pageproduct.title_sustainability.h2
    • Documentations
    • More products

    product.page.accessories.title

    product.page.accessories.associated-products

  • product.page.accessories.see-more (21)
    • Cover for distri­bu­tion board 3 product.page.accessories.products-available
    • Mounting plate for distri­bu­tion board 4 product.page.accessories.products-available
    • Separ­a­tion plate for meter/dis­tri­bu­tion boards 2 product.page.accessories.products-available
    • Empty cabinet 1 product.page.accessories.products-available
    • DIN rail 1 product.page.accessories.products-available
    • Door/­op­er­ating panel 2 product.page.accessories.products-available

    product.page.accessories.title-modal

    • Cover for distri­bu­tion board
    • Mounting plate for distri­bu­tion board
    • Separ­a­tion plate for meter/dis­tri­bu­tion boards
    • Empty cabinet
    • DIN rail
    • Door/­op­er­ating panel
    • Gland plate for enclosure
    • Cover­/in­fill panel/iden­ti­fic­a­tion strip
    • Common Accessories
    • Distrib­utor assembly terminal blocks
    • Compon­ents for wiring, cable entry and cable fixing
    • FD00C3

      Cover, NewVegaD, 300x500mm, plain+slotted
      €0.00  / *
    • FD00C2

      Cover, NewVegaD, 300x500mm, plain
      €0.00  / *
    • FD00C5

      Cover, NewVegaD, 150x500mm, plain
      €0.00  / *
    • FD00M4

      Mounting plate, NewVegaD, 150x440x2mm, for mounting rail upright
      €0.00  / *
    • FD00M2

      Mounting plate, NewVegaD, 300x440x2mm, for mounting rail upright
      €0.00  / *
    • FD00M3

      Perforated plate, NewVegaD, 150x440x1, 2mm, for mounting rail upright
      €0.00  / *
    • FD00M1

      Perforated plate, NewVegaD, 225x440x1, 2mm, for mounting rail upright
      €0.00  / *
    • FD00A4

      Partition plate, NewVegaD, horizontal, flush high-depth 180mm
      €0.00  / *
    • FD00A5

      Partition plate, NewVegaD, horizontal, flush low-depth 150mm
      €0.00  / *
    • FU32GN

      Enclosure, NewVegaD, 687x550x182mm, 72 modules, flush-mounted, empty
      €0.00  / *
    • UN03FN

      Vertical uprights, univers FW, height 450mm, 2 pieces
      €0.00  / *
    • FD32TN

      Glazed door, NewVegaD, 550x500mm, for 3-rows enclosure
      €0.00  / *
    • FD32PN

      Plain door, NewVegaD, 550x500mm, for 3-rows enclosure
      €0.00  / *
    • FD00P3

      Cable entry plate, NewVegaD, top/bottom, rectangular with round knock-outs
      €0.00  / *
    • FD00P2

      Cable entry plate, NewVegaD, top/bottom, rectangular with 2 flanges IP41
      €0.00  / *
    • FD00P1

      Cable entry plate, NewVegaD, top/bottom, rectangular
      €0.00  / *
    • VZ741

      Rear cable entry flange IP41 for NewVegaD and Univers FW boards
      €0.00  / *
    • FD00A1

      Label strips Kit, NewVegaD, 10 pieces, 24 modules width
      €0.00  / *
    • FD00B2

      Kit, NewVegaD, with 10 cable brackets for flush enclosure
      €0.00  / *
    • KJ160A

      Brass busbar terminal 160A, 4pole, 1x 25-70² / 3x 10-35² / 8x 2, 5-25² per pole
      €0.00  / *
    • FD00F3

      Cable strain relief bar 24 modules width for NewVegaD
      €0.00  / *

    Technical characteristics

    Connec­tion
    • Number of conduit inlets
      4
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Flush mounting
    Elec­tric current
    • Rated current IN
      160 A
    Equip­ment
    • Number of rails
      3
    • Number of rows
      3
    • Number of section in width
      2
    • With lock
      No
    • Has neutral terminal block
      No
    • Has earthing terminal block
      No
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      72
    Dimen­sions
    • Height
      687 mm
    • Width
      600 mm
    • Depth
      150 mm
    • Built-in width
      550 mm
    • Built-in depth
      110 mm
    • Number of width units
      24
    Cover, door
    • Door/­cover is trans­parent
      No
    • Cabinet door type
      Single door
    Mater­ials
    • Material
      Metal, Plastic
    • RAL code
      9010
    • Colour
      Pure white
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Without lock

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    PEP - Encl., NewVegaD, 900x550x193mm, 120 mod. (English)
    PDF
    472,28 kB
    REACH declaration FU32DN
    PDF
    RoHS report FU32DN
    PDF

    Downloads

    • Image FU32DN | Hager UK

      Product Image FU32DN

    • GeneratedProductDatasheet

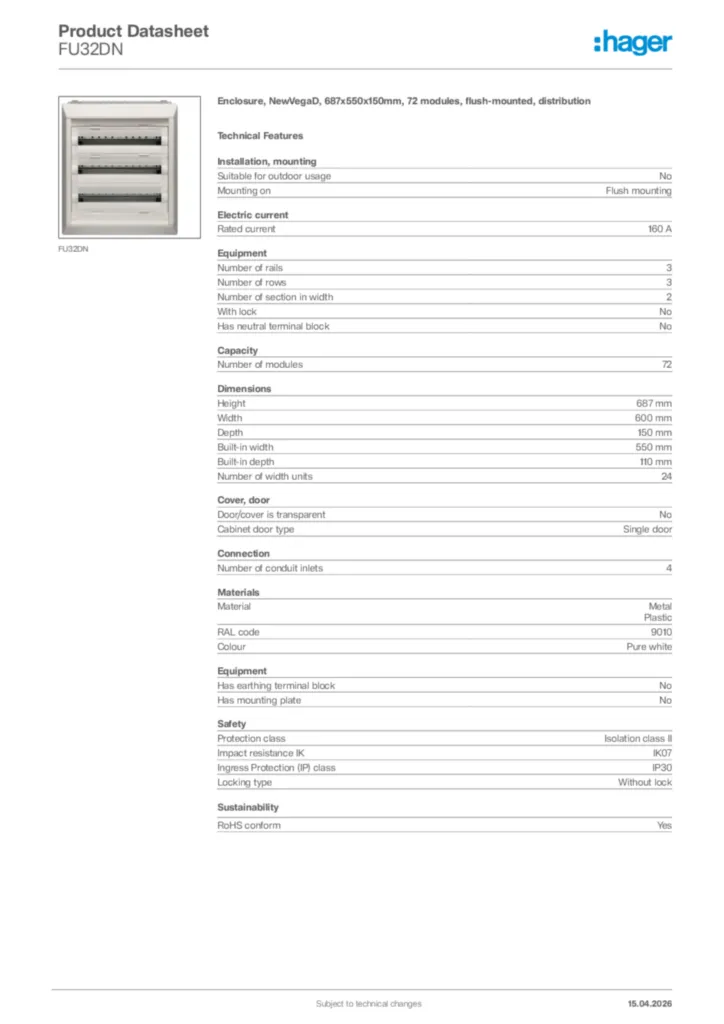

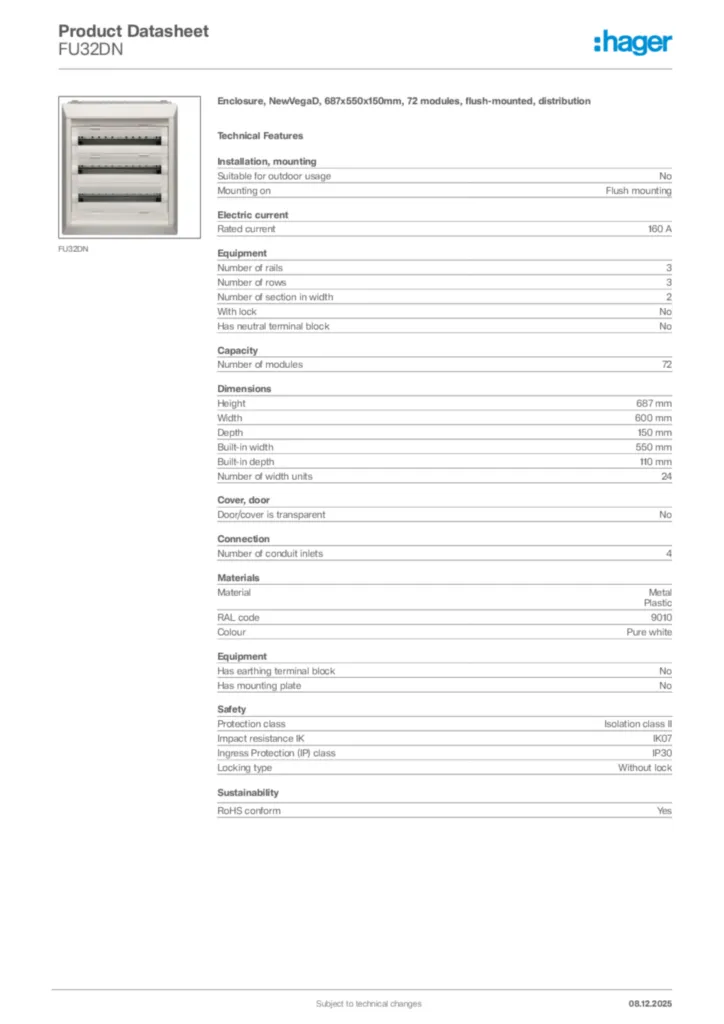

      Image Hager Product data sheet FU32DN | Hager UK
